HIPOWER has manufactured plastic cylinder packaging machinery for over 27 years, delivering customized automated cylinder production lines for gift, stationery, fishing gear and food packaging factories across more than 60 countries worldwide.

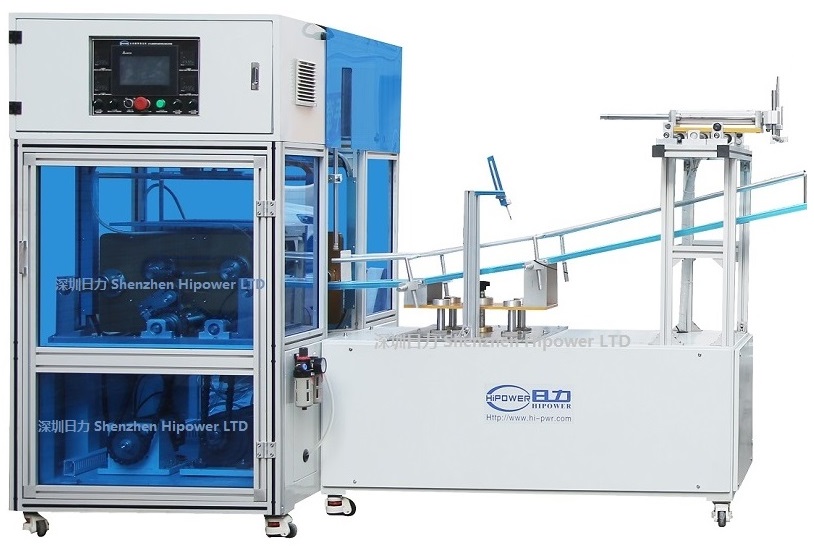

HIPOWER HY-2030 Automatic Cylinder Box Forming Machine: Custom Automated Production Solution for Eco Clear Plastic Tubes

Manufacturers producing transparent PVC, PP, APET, PETG round packaging tubes for candy, gifts, toys, stationery and fishing tools encounter common drawbacks. Conventional tube machines only support one bonding method, limiting applicable materials. Manual equipment features complicated size adjustment, inconsistent tube diameter and height, scratches and poor adhesion on finished goods. Frequent model change for multi-size small orders wastes much time. To solve these issues, DONGGUAN HIPOWER LTD launches HY-2030 automatic cylinder forming machine. It supports both glue adhesion and ultrasonic welding in one unit. The PLC touch screen realizes automatic feeding, rolling, bonding and cutting. It ensures stable mass output and flexible production, with comprehensive non-standard customization support.

Core Technical Features of the HY-2030

1. PLC+HMI Touch Screen Intelligent Control, Precise Forming & Quick Parameter Setup

The whole machine adopts PLC human-machine touch control system for full visualized operation. Plastic rolls are automatically curled into tubes after feeding. Tube diameter, height and bonding time are set on screen. Multiple production recipes can be saved for one-click recall during size changeover, lowering operation difficulty and accelerating model switching for multi-size orders.

2. Dual Bonding Options: Glue & Ultrasonic for Wide Material Compatibility

Two sealing modes are optional on one machine. PVC and PP tubes can use economical glue bonding; APET, PETG and eco hard plastic films apply solvent-free ultrasonic welding. Both methods deliver tight adhesion without cracks, scratches or deformation. Ultrasonic bonding meets food-grade and cosmetic eco packaging requirements with zero solvent odor.

3. Photoelectric Tracking Cutting Guarantees Uniform Tube Dimension

High-precision photoelectric tracking locates cutting position accurately. All finished tubes feature highly consistent diameter and height, eliminating dimensional deviation caused by manual cutting. Factories reduce sorting labor and reject rate for bulk orders.

4. Import Anti-Interference Digital Circuit Supports Long-Time Stable Operation

Equipped with imported high-performance anti-interference processor and intelligent digital chips. The machine runs stably under complex factory conditions with unstable voltage and multiple nearby devices. It supports 24-hour non-stop mass production with low failure rate for intensive packaging workshops.

5. Dual-Station Simultaneous Edge Curling Improves Overall Productivity

Dual working stations enable synchronous edge curling on both tube sides. Feeding forming and edge curling proceed alternately, doubling productivity versus single-side curling machines. It efficiently handles high-volume bulk orders of gift, stationery and fishing gear tubes and shortens unit processing time.

6. Full Customization & Complete ODM/OEM Support

Tube diameter range, height limit, film thickness adaption and station layout can all be customized. Air pressure, machine dimension and feeding direction are adjustable to fit workshop layout. Private-label ODM/OEM is available; customers can add automatic web guiding and auxiliary rewinding units to connect printing and lamination lines for full closed-loop tube production.

Suitable Applications & Compatible Raw Materials

Application Products

Transparent packaging tubes for candy & snacks, holiday gifts, toys, stationery pens, fishing tackle, umbrella outer packaging

Compatible Materials

PVC, PP, APET, PETG and all plastic rolls suitable for ultrasonic welding or glue adhesion

Supported Crafts

Glue bonding forming, solvent-free ultrasonic forming, bilateral edge curling, fixed-length precision cutting

Main Technical Specifications

Model: HY-2030

Tube Diameter Range: 50mm~200mm, customizable for wider size range

Tube Height Range: 80mm~300mm before curling, height adjustable by customization

Production Speed: 500-900 pieces/hour (dual-side curling)

Control System: PLC+HMI touch screen

Applicable Film Thickness: 0.17mm~0.5mm, thickness range customizable

Adjustable Welding/Glue Time: 0.01~9.99 seconds

Power Supply: 3-phase AC 380V 50Hz, voltage customizable for overseas countries

Working Air Pressure: 0.1~0.7MPa

Station Structure: dual stations, single/double edge curling configurable

Overall Machine Size: Final dimension subject to official quotation drawing

Remarks: Full machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.

Frequently Asked Questions

Can HY-2030 make food-safe PETG clear candy tubes?

Yes. Switch to ultrasonic welding mode for glue-free bonding. Tubes have solid sealed seams without whitening or fractures, complying with food packaging environmental standards, widely used for candy and bakery packaging.

Can we customize tubes with diameter or height beyond standard limits?

All dimensions can be tailor-made. We expand maximum/minimum tube diameter and extend processing height for oversized storage tubes or tiny cosmetic tubes.

Can operators freely switch between glue and ultrasonic modes?

Yes. Switch bonding mode directly on touch screen with no extra part replacement. One machine processes glue PVC tubes and eco solvent-free PETG tubes to cover diverse material demands.

Will dimensional tolerance get worse after long-hour continuous production?

Photoelectric positioning plus anti-interference digital chips keep stable precision during round-the-clock operation. Tube length and diameter stay consistent with low deviation.

What is the warranty policy for customized machines?

1-year full machine warranty plus lifelong remote technical support. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.

Contact HIPOWER for Custom Cylinder Forming Solution

The full cylinder machine series including HY-2102A, HY-4102A, HY-2030, HY-200H30 accept free roll material testing. Our engineers design tailored equipment according to plastic material, tube dimension and output demand.
