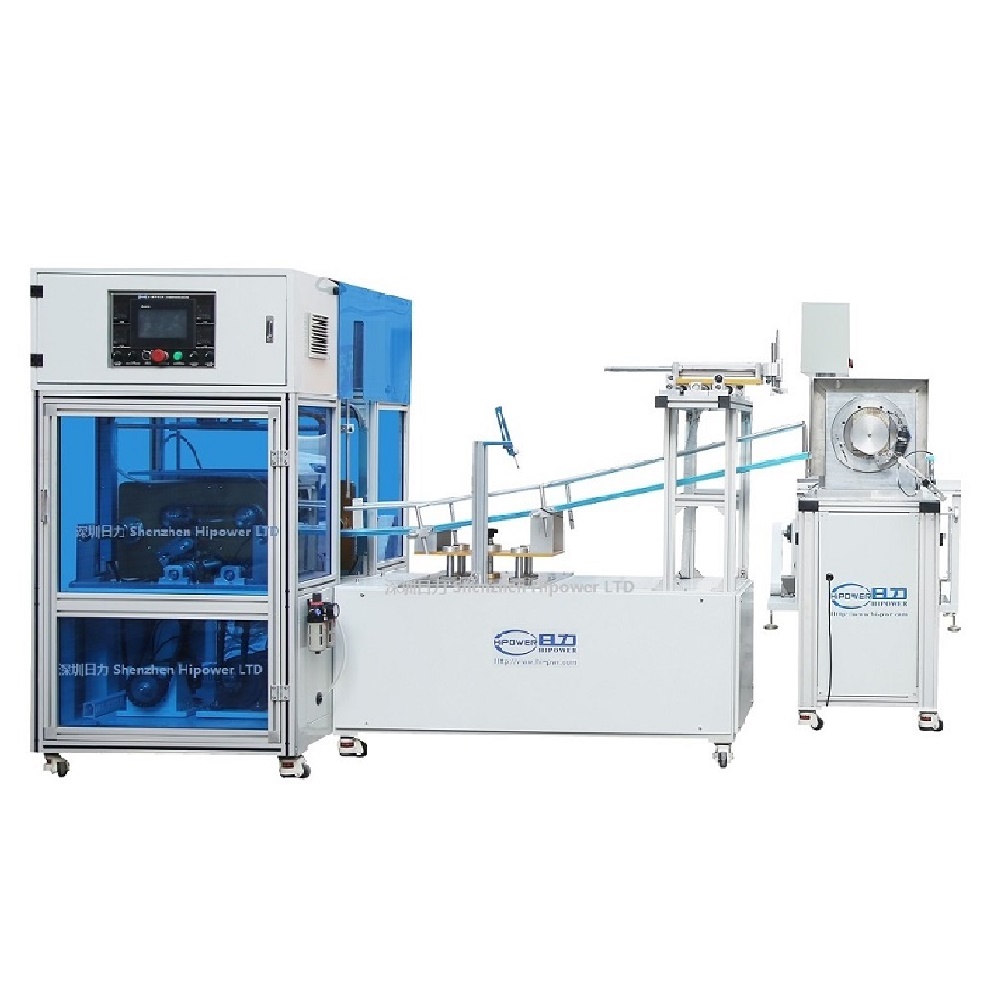

HY-200H30 Automatic PVC APET Cylinder Tube Forming Machine with Single Edge Curling

Author: Li Gong, Senior Packaging Equipment Engineer, DONGGUAN HIPOWER LTD

Published: Jul 01, 2026 | Updated: Jul 01, 2026

HIPOWER has manufactured plastic packaging machinery over 27 years, supplying integrated cylinder, blister & HF welding production lines for packaging factories from more than 60 countries.

HIPOWER HY-200H30 Automatic Cylinder Box Forming Machine: All-In-One Mass Production Solution for APET/PVC Transparent Tube Packaging

Manufacturers producing transparent plastic cylinder boxes for candy, gifts, toys, stationery and fishing tackles face many bottlenecks with semi-automatic machines: slow manual feeding & gluing, inconsistent tube diameter/length, single welding process unable to fit eco PETG material, sharp untrimmed edge scratch finished goods. To solve these pain points, DONGGUAN HIPOWER LTD launches HY-200H30 full automatic cylinder forming machine. It completes roll feeding, curling, welding, cutting and single edge curling in one continuous line, dual glue & ultrasonic welding fits all plastic rolls, becoming core mass-production machine for high-end transparent tube packaging.

Core Technical Features of the HY-200H30

1. PLC HMI Intelligent Control System, Precise Stable Forming

Equipped with PLC touch screen operation system & imported anti-interference digital processor, fast response & accurate positioning. Operators set tube diameter, height and welding time on touch panel with visualized parameters, easy for new workers to operate. Mass produced tubes keep uniform diameter & length, drastically reduce reject rate.

2. Dual Glue & 20K Ultrasonic Welding Compatible for All Materials

Two welding modes switchable freely: water glue bonding for soft PVC rolls; 2000W 20K ultrasonic welding for eco APET & PETG sheets. Firm seamless bonding without glue overflow or whitening, meets food & gift packaging environmental standards, one machine works for all transparent tube raw materials.

3. Auto Single Edge Curling to Eliminate Sharp Cut

Built-in single edge curling unit automatically rounds tube top edge after forming, remove sharp cutting mouth to avoid scratching products and packaging film when packing candy, fishing tackles & ornaments, upgrade product appearance quality. Curling size adjustable synchronously with tube dimension, fit pre-curl height 80~300mm.

4. Photoelectric Tracking Cutting for Zero Size Deviation

Photoelectric sensor tracks feeding roll real-time, accurate cutting positioning, all finished tubes have consistent diameter & length, no mixed irregular tubes, save labor sorting cost.

5. Full Auto Roll Feeding, Integrated Assembly Line

Whole plastic film roll loaded directly on machine, auto feeding, curling, bonding, cutting and edge curling run continuously without pre-cut sheet by hand. Output reaches 500~9000 pcs per hour, 3X higher efficiency than semi-auto machines, support non-stop mass production.

6. Wide Size Compatibility & Full Customization

Tube diameter range 20mm~200mm, pre-curl film height 80mm~300mm, fit film thickness from 0.17mm to 0.5mm for PVC, PP, APET, PETG rolls. Custom options: double edge curling, punching station, widened machine frame, ODM & OEM private label service available.

Suitable Applications & Compatible Raw Materials

Application Products

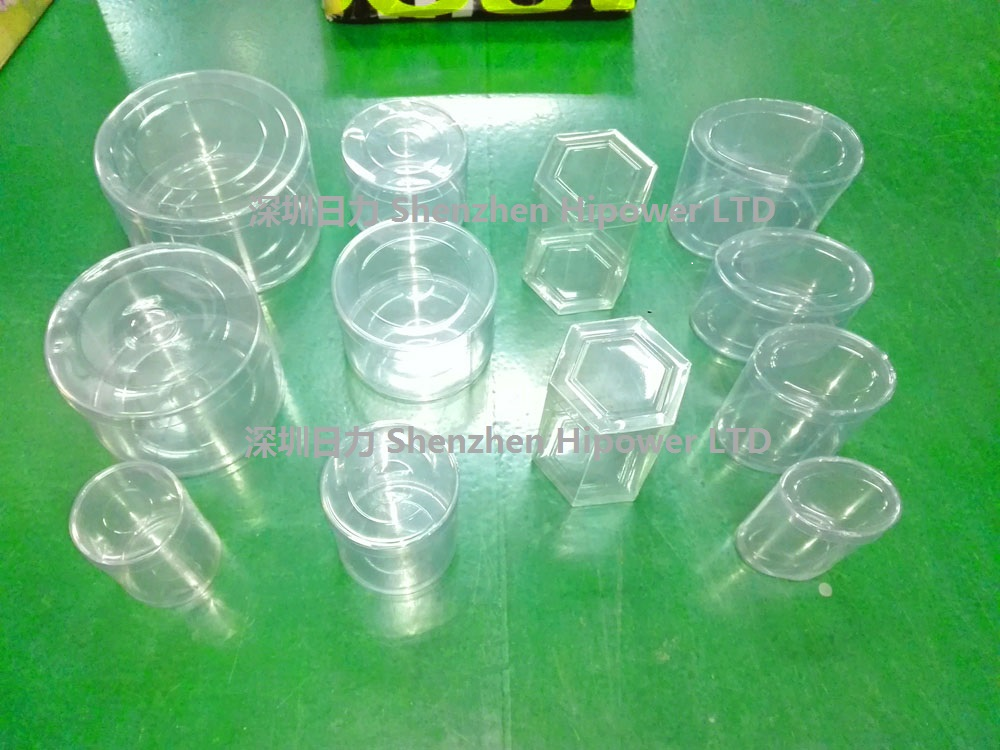

Candy cylinder tubes, gift round boxes, toy packaging tubes, stationery storage tubes, umbrella tubes, fishing tackle transparent packaging tubes

Compatible Materials

Rolled PVC, PP, APET, PETG plastic film, thickness 0.17mm - 0.50mm

Target Industries

Food packaging, craft gift, outdoor fishing gear, beauty accessory, children toy packaging factories

Main Technical Specifications

plaintext

Model: HY-200H30

Core Function: Tube forming + Single Auto Edge Curling

Edge Curling Unit: Included

Hourly Output: 500 - 9000 pcs/h

Tube Diameter Range: Φ20mm - 200mm

Max Pre-Curl Film Height: 80mm - 300mm

Processable Film Thickness: 0.17mm - 0.50mm

Raw Material Roll: PVC / PP / APET / PETG Film

Glue Coating System: Standard Equipped

Ultrasonic Welding Unit: Standard, 2000W 20KHZ

Control System: PLC + Touch Screen HMI

Adjustable Welding Time: 0.01 - 9.99 Seconds

Remarks: Custom punching, double curling, widened frame available; ODM & OEM accepted; specifications subject to upgrade without prior notice

Frequently Asked Questions

Can HY-200H30 process eco-friendly PETG transparent tubes?

Yes, built-in 20K ultrasonic welding unit bonds APET/PETG firmly without glue, solvent-free and food-safe.

Will curled tube edge scratch packaged goods?

Single edge curling rolls sharp cut inward, smooth round edge, no scratch on ornaments, fishing tackles or candy goods.

What’s the hourly production capacity?

Standard model output 500~9000 pieces per hour, speed auto-adjust by tube size & film thickness, support 24h continuous running for bulk orders.

Does it support ultra-thin or thick plastic film?

Works stable for 0.17mm thin APET up to 0.5mm thick PVC rolls, all common packaging film compatible.

After-sale warranty service?

1-year full machine warranty plus lifetime remote technical support, engineers offer on-site installation, commissioning & operator training, all inquiries reply within 24 hours.

Contact HIPOWER for Custom Packaging Production Line

Standard single curling tube machine, double curling model & multi-function tube maker with punching available, free material sample test & customized quotation support.
