Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD Published: Oct 07,2026 | Updated: Oct 07,2026 HIPOWER has specialized in environmental filter HF welding equipment for over 27 years, delivering customized welding & embossing solutions for air purification, industrial dust collection and filter material factories worldwide.
Manufacturers in air purification, industrial dust removal and environmental filtration face common challenges when welding non-woven cotton, fabric and PU/TPU composite filter bags. Non-woven materials with fiber impurities easily cause sparking and mould damage. Weak seams lead to dust leakage and air penetration. Low-power machines cannot handle thick filter materials and large-size bags with insufficient fusion. Single-station equipment causes long loading/unloading waiting time and low productivity. Standard machines with fixed structures can hardly adapt to diverse filter bag specifications.

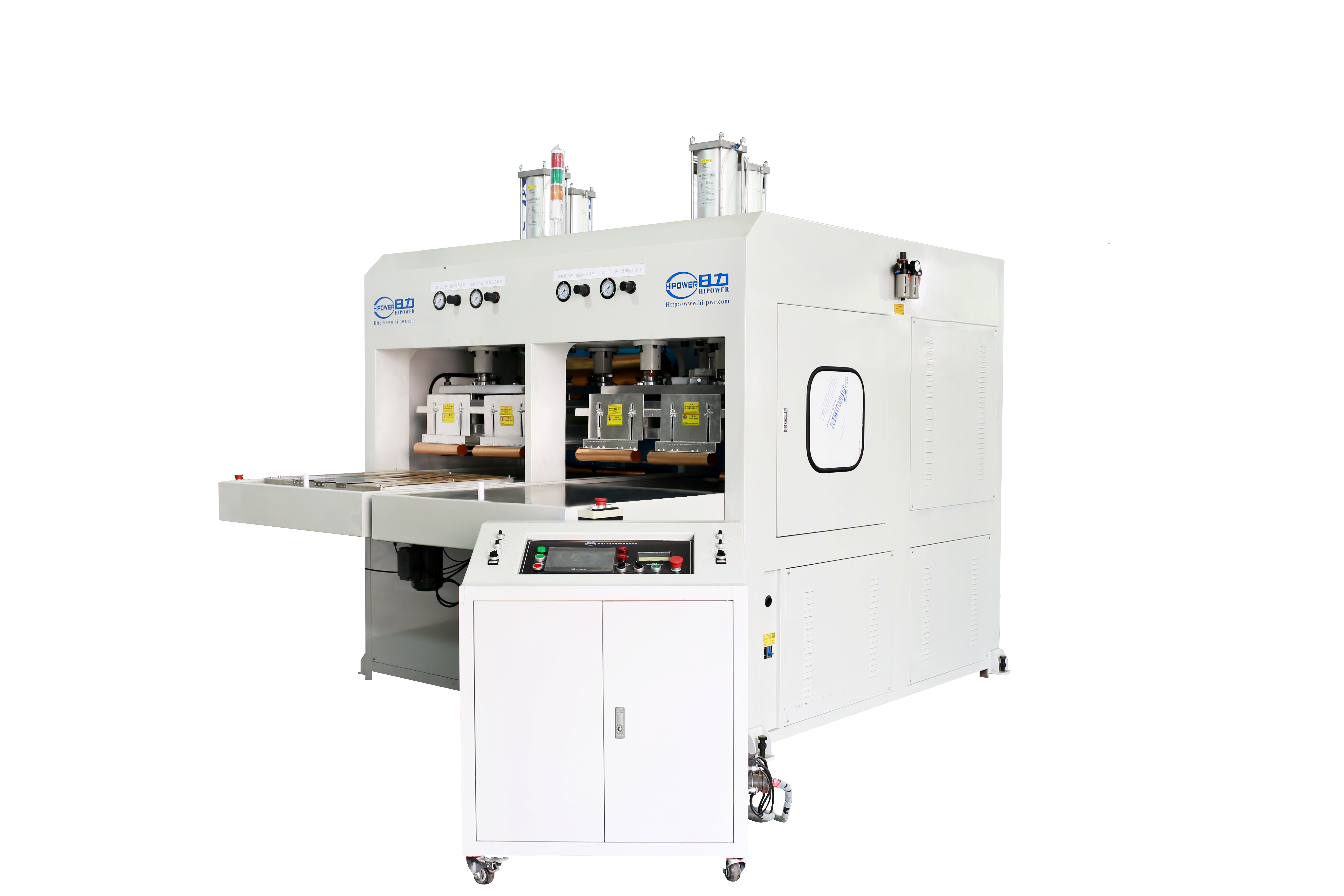

To solve these pain points, DONGGUAN HIPOWER LTD launches HR-35KWT high frequency pocket air filter welding machine. Equipped with 35KW high-power high-Q oscillation system, it offers three station options: automatic sliding table, automatic rotary table and single-side double sliding table. Specially designed for welding and embossing filter bags made of non-woven cotton, fabric, PU and TPU. With high-sensitivity anti-flash protection and wide temperature control, it handles both large thick filter bags and mass production, with full non-standard customization available.
Equipped with 35KW HF power and premium 8T87RB electron tube running on 13.56MHz industrial frequency, the high-Q oscillation circuit delivers stable and strong output. Optimized for thick non-woven cotton, composite filter media and PU/TPU coated materials, it creates deep, strong fusion with tight, dust-proof seams, meeting high-performance requirements of industrial dust collector bags and large air filter bags.
Three station configurations are available to match filter bag size, daily output and workshop layout:
Automatic Sliding Table: ideal for large and long filter bags with sufficient operating space;
Automatic Rotary Table: suitable for mass production of small-medium filter bags with cyclic multi-station efficiency;
Single-Side Double Sliding Table: enables loading/unloading on one side while welding on the other, minimizing idle time and maximizing productivity.
Standard high-sensitivity 5557 instant anti-spark system cuts HF power within milliseconds for spark-prone non-woven materials. It effectively protects welding moulds and internal core components, reducing maintenance cost of expensive custom moulds and supporting long-time continuous production.
Heating temperature is steplessly adjustable from 30℃ to 200℃, precisely matched to different material thicknesses. It performs both filter bag edge sealing and joint welding, as well as non-woven embossing and forming. One machine covers two processes to improve utilization.
Electrode size, worktable dimension, power rating, station structure and automation level are all customizable. Extended tables for extra-long filter bags and automatic feeding/receiving units for mass production are available. Private-label ODM & OEM service is provided to build dedicated filter bag production lines matching customer product features and workshop layout.
With high-power output and optional station structures, HR-35KWT widely fits four categories and dozens of filter welding & embossing scenarios:
Suitable for central HVAC filter bags, fresh air system filters, air purifier cartridges, cleanroom filters and HEPA filter bags. Tight air-proof seams with undamaged filter media meet filtration efficiency and sealing requirements.
Processes workshop dust bags, powder collection bags, woodworking dust filters, mining dust bags and industrial exhaust filter bags. High power output adapts to thick non-woven and laminated filter media with strong, erosion-resistant seams for heavy industrial applications.
Fits non-woven cotton embossing, forming and edge sealing, as well as acoustic cotton, thermal insulation cotton welding. Clear embossed patterns and uniform fusion with customizable mould designs for furniture, automotive and construction industries.
Supports PU, TPU composite filter media, filter sleeves, liquid filter bags and specialty filter products. Multi-station structures adapt to filter bags of different sizes and shapes for environmental, chemical and medical industries.
Model: HR-35KWT HF Output Power:35KW (8KW~35KW customization available) Electron Tube:8T87RB HF Frequency:13.56MHz Power Supply:AC 380V / 50Hz 3-Phase, voltage customizable for export Input Power:50KVA Max. Clamp Pressure:2T Press Mode: Standard pneumatic, hydraulic upgrade available by customization Max. Electrode Gap:150mm Electrode Moving Range:100mm Standard Electrode Size:800*800mm (size & shape fully customizable) Temperature Range:30℃ ~ 200℃ adjustable Optional Station Structures: Auto Sliding Table / Rotary Table / Single Side Double Sliding Table Overall Machine Size: Final dimension subject to official quotation drawing Remarks: Full machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.
Yes. 35KW high power delivers sufficient fusion for thick non-woven and laminated filter media, creating strong, dust-proof and crack-resistant seams for industrial dust collector bags.
Sliding table for large long filter bags; rotary table for mass production of small-medium sizes; single-side double sliding table for high output with simultaneous loading/unloading. We help customize the best solution.
Built-in 5557 high-sensitivity anti-flash system cuts power instantly upon sparking, reliably protecting moulds and components, ideal for long-term processing of spark-prone non-woven materials.
Yes. Electrode and worktable size can be widened and extended for large-size and irregular filter bags.
1-year full machine warranty plus lifelong remote technical support. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.
All series filter bag HF welders (25KW/35KW) support free material sample testing. Our engineers design tailored equipment based on bag size, material type and production capacity. ▶ Request Free Quotation ▶ Free Filter Material Sample Test ▶ Download Machine Catalogue Contact Info: Email: hipower06@hi-pwr.com WhatsApp:+86-135-9014-6525 Tel:+86-0769-8600-3636 ext.812
