HIPOWER HR-25KWAT Non-Woven Air Filter Bag HF Welder: Multi-Structure Custom Solution for Filter Bag Welding & Embossing

Manufacturers in industrial dust collection, air purification and environmental filtration face common challenges when welding and embossing non-woven, laminated filter fabric and PU/TPU composite filter bags. Standard HF machines have fixed structures that cannot flexibly fit filter bags of different sizes and lengths. Non-woven fabric with fiber impurities easily causes flash and damages moulds, leading to weak seams, dust leakage and cracking. Single-station machines waste time on loading/unloading, and separate processing of multiple procedures lowers efficiency.

To solve these pain points, DONGGUAN HIPOWER LTD launches HR-25KWAT non-woven air filter bag HF welding machine. It offers three working structures: sliding table, rotary table and single-side double sliding table. Equipped with a stable high-Q oscillation system and anti-flash protection, it completes both welding and embossing in one machine. It fits different production capacities and multi-size filter bag manufacturing, with full non-standard customization available.

Core Technical Features of the HR-25KWAT

1. Stable 25KW High-Q Oscillation for Reliable Multi-Material Welding

Equipped with 25KW HF power and premium 8T25RA electron tube running on 13.56MHz industrial frequency, the high-Q oscillation circuit delivers uniform and stable energy output. The energy is optimized for non-woven fabric, laminated filter material, PU and TPU composites, creating tight, leak-proof weld seams. It also handles filter bag embossing and forming, combining two processes in one machine to reduce equipment investment.

2. Optional Multi-Station Structures for Different Production Capacities

Three working structure options are available: automatic sliding table, automatic rotary table and single-side double sliding table. Customers can select the best fit based on filter bag size, daily output and workshop layout.

• Sliding table: ideal for large and long filter bags with sufficient operating space;

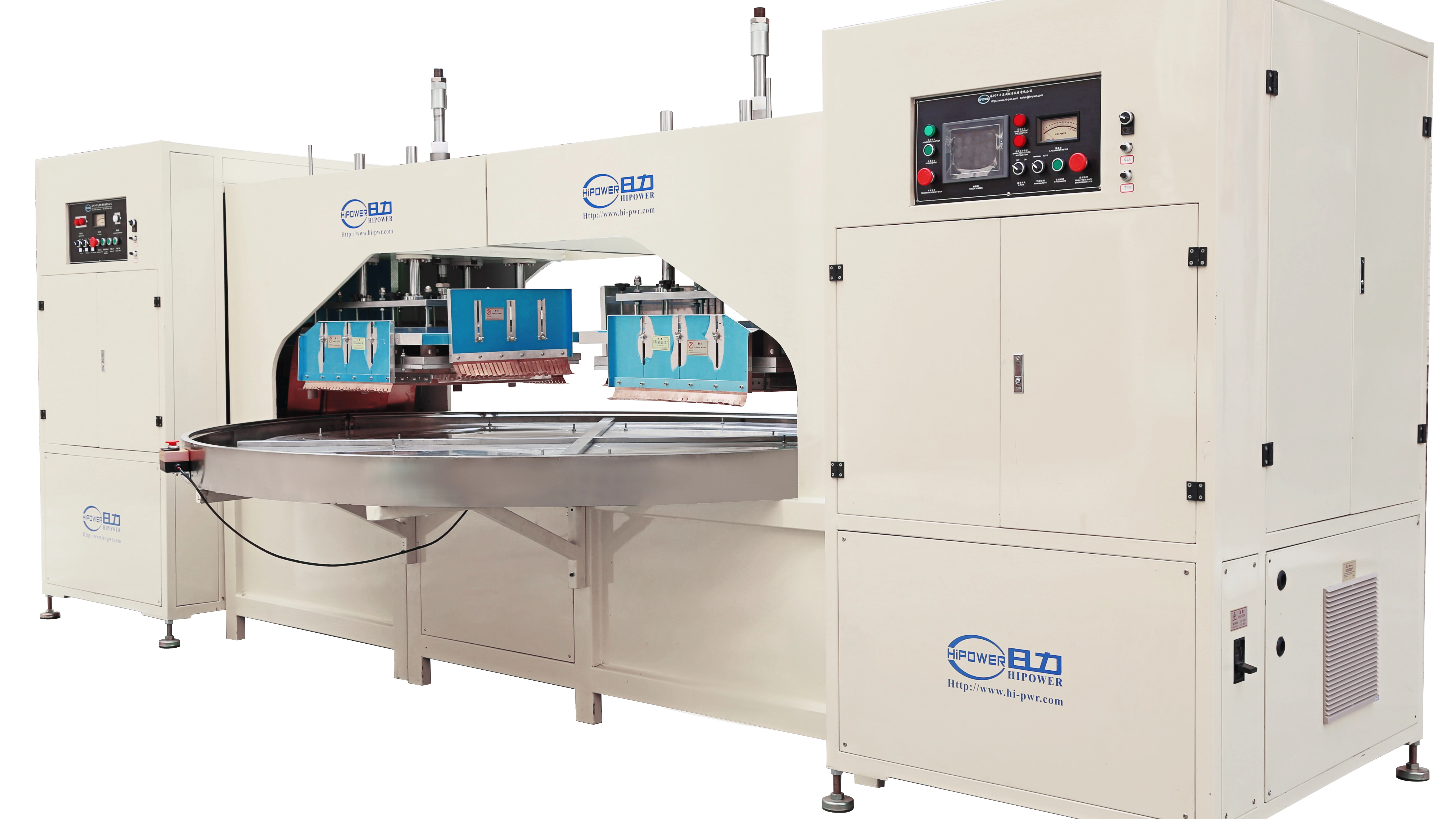

• Rotary table: suitable for mass production of small and medium-sized filter bags with cyclic multi-station operation;

• Double sliding table: allows loading/unloading on one side while welding on the other, greatly reducing idle time.

3. High-Sensitivity 5557 Anti-Flash Protection Reduces Mould Damage

Standard high-sensitivity 5557 instant anti-spark system cuts HF power within milliseconds when flash occurs (common with fibrous non-woven materials). It effectively protects welding moulds and internal core components, lowering maintenance cost of expensive custom moulds and supporting long-time continuous production.

4. Wide Adjustable Temperature Range for All Fabric Thicknesses

Heating temperature is steplessly adjustable from 30℃ to 200℃, precisely matched to different material thicknesses and properties. Thin non-woven filter bags will not be burnt through, while thick composite materials get sufficient fusion. It ensures consistent weld quality in mass production and reduces reject rates.

5. Full Customization & Complete ODM/OEM Support

Electrode size, worktable dimension, power rating, station quantity and automation level can all be customized. We design extended worktables for extra-long industrial filter bags and add automatic feeding/receiving units for high-volume production. Private-label ODM & OEM service is available to build exclusive filter bag welding production lines based on customer product features and workshop layout.

Suitable Applications & Compatible Materials

Filtration Applications

Air filter bags, dust collector bags, filter cartridges, filter sleeves, air conditioner filter mesh edge welding

Composite Product Applications

Non-woven + PU/TPU fabric welding, non-woven storage products embossing

Compatible Materials

Non-woven fabric, PVC, PU, TPU, laminated filter media and all HF-weldable flexible filter materials

Supported Processes

Filter bag edge sealing, joint welding, pattern embossing and forming in one integrated process

Main Technical Specifications

Model: HR-25KWAT

HF Output Power:25KW (8KW~35KW power customization available)

Electron Tube:8T25RA

HF Frequency:13.56MHz

Power Supply:AC 380V / 50Hz 3-Phase, voltage customizable for export

Input Power:35KVA

Max. Clamp Pressure:2T

Press Mode: Standard pneumatic pressure, hydraulic upgrade available by customization

Max. Electrode Gap:150mm

Electrode Moving Range:100mm

Standard Upper Electrode Size:800800mm (size & shape fully customizable)

Standard Lower Electrode Size:800800mm (table size customizable)

Temperature Range:30℃ ~ 200℃ adjustable

Optional Structures: Auto Sliding Table / Rotary Table / Single Side Double Sliding Table

Overall Machine Size: Final dimension subject to official quotation drawing

Remarks: Full machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.

Frequently Asked Questions

Can HR-25KWAT process large and long filter bags?

Yes. We can customize extended and widened worktables to fit extra-long and extra-wide industrial dust filter bags, enabling one-step full-length welding without segmented splicing.

How to choose between sliding, rotary and double sliding table?

Sliding table is recommended for large long filter bags; rotary table for mass production of small-medium sizes; double sliding table for high output with simultaneous loading/unloading. We help customize the best solution based on actual needs.

Will non-woven fabric impurities cause flash and damage moulds?

The machine is equipped with high-sensitivity 5557 anti-flash system, which cuts HF power instantly when flash occurs. It reliably protects moulds and components, perfectly suitable for long-term processing of flash-prone non-woven filter materials.

Can it do both filter bag welding and embossing?

Yes. Simply replace corresponding moulds to switch between edge sealing and pattern embossing. Process parameters can be saved and recalled with one click for fast product changeover.

What is the warranty policy for customized machines?

1-year full machine warranty plus lifelong remote technical support. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.
