Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Jul 22,2026 | Updated: Jul 22,2026

HIPOWER has specialized in high-frequency welding equipment R&D and manufacturing for over 27 years, supplying customized high-power HF solutions for outdoor goods and filter material factories in more than 60 countries worldwide.

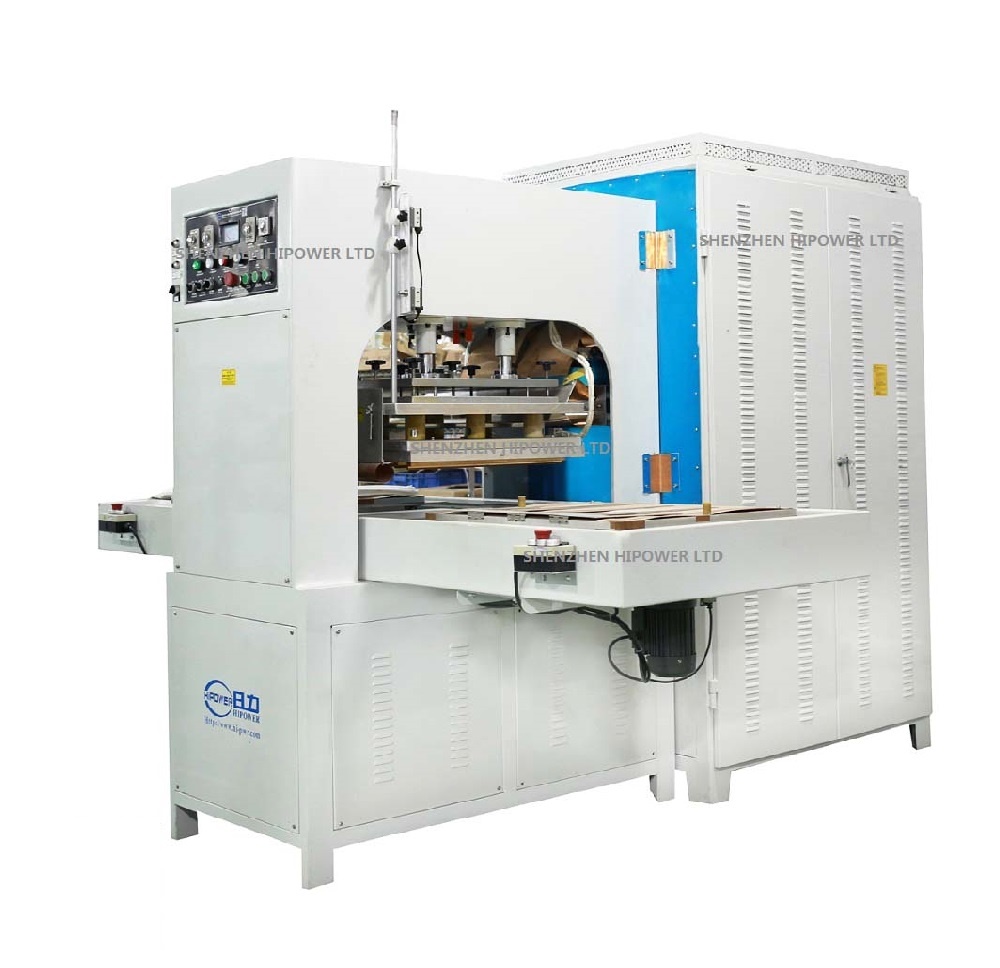

HIPOWER HR-25KWAT Auto Sliding Table HF Welding Machine: Customized Welding Solution for TPU Outdoor Bags & Filter Sacks

Manufacturers producing air filter bags, non-woven filter cartridges, TPU hiking backpacks, waterproof dry bags, insulated cooler ice bags face typical challenges: standard machines offer limited structure & insufficient power, thick multi-layer TPU fabric cannot be fully fused leading to water leakage and seam peeling. Diversified product sizes require flexible production, which fixed-size standard equipment cannot satisfy. To solve these industry pain points, DONGGUAN HIPOWER LTD launches HR-25KWAT automatic sliding table HF welding machine. With stable 25KW power and multiple optional working structures, the machine supports full-range non-standard customization, covering welding & embossing production for both eco filter materials and outdoor soft bags.

Core Technical Features of the HR-25KWAT

1. Stable 25KW HF Output with 8T25RA Electron Tube for Thick Composite Fabric

Equipped with 25KW HF generator and premium 8T25RA electron tube operating at 13.56MHz industrial frequency. High-Q oscillation box delivers consistent and sufficient energy for multi-layer TPU, PVC and laminated non-woven fabric. The integrated weld seam features excellent waterproof and tensile strength, effectively solving seam delamination and water penetration problems of outdoor ice bags, hiking bags and filter sacks under long-term use.

2. Multiple Optional Structures & Full Non-Standard Customization

Three working structures are optional: automatic sliding table, rotary table, single-side double sliding table, selectable according to production rhythm and workpiece shape. All dimensions support deep customization: electrode size, sliding stroke, frame dimension and feeding direction can be tailor-made. Longer table and wider welding zone are available for large-size backpacks and long filter bags.

3. High-Sensitivity 5557 Anti-Flash Protection for Custom Moulds

Standard 5557 instant anti-spark system cuts HF power within milliseconds once abnormal flash occurs, protecting large customized welding moulds and internal electronic components, lowering mould maintenance cost and supporting 24/7 continuous mass production.

4. Auto Sliding Table for Safe Loading & Unloading

The sliding platform carries moulds in/out of the HF working zone. Operators load and unload materials outside the high-frequency area to improve operational safety. Sliding speed and stroke are adjustable, convenient for placing large backpacks and long filter bags and reducing labor intensity.

5. Wide Process Compatibility for Dual Production Lines

One machine supports two major production processes: sealing welding for air filter bags & filter cartridges; edge sealing, embossing and splicing for TPU hiking bags, waterproof storage bags and insulated ice bags. Built-in temperature control system with adjustable range 30℃~200℃ to optimize welding effect for different laminated materials.

6. Complete Customization & ODM/OEM Support

Power rating, table dimension, sliding unit quantity and automatic expansion functions can be customized. Private label ODM & OEM service is available. We can cooperate with automatic feeding assembly line transformation to support intelligent upgrading for outdoor goods and filter factories.

Suitable Applications & Compatible Materials

Suitable for welding & embossing of PVC, PU, TPU and laminated non-woven fabric

1. Eco filter materials: air filter bag, dust filter sack, filter cartridge, filter sleeve

2. Outdoor soft bags: TPU waterproof backpack, hiking pack, outdoor storage dry bag, drift waterproof pouch

3. Thermal storage products: outdoor cooler ice bag, thermal insulation bag, food fresh keeping pouch

4. Other TPU soft goods: inflatable soft sack, waterproof storage bladder, flexible air bag lamination

Main Technical Specifications

Model: HR-25KWAT

HF Output Power:25KW

Electron Tube:8T25RA

HF Frequency:13.56MHz

Power Supply:AC 380V / 50Hz 3-Phase, voltage customizable

Input Power:35KVA

Max. Clamp Pressure:2T

Press Mode:Pneumatic Pressure (Hydraulic upgrade available by customization)

Max. Electrode Gap:150mm

Electrode Moving Range:100mm

Standard Upper & Lower Electrode Size:800*800mm (fully customizable)

Temperature Range:30℃ ~ 200℃ Adjustable

Optional Working Structure: Auto Sliding Table / Rotary Table / Single Side Double Sliding Table

Machine Overall Dimension: Subject to customized drawing & official quotation

Remarks: Full machine customization supported, ODM & OEM accepted; specifications subject to technical improvement without prior notice.

Frequently Asked Questions

Can HR-25KWAT weld thick TPU hiking backpacks and insulated ice bags?

Yes. The 25KW high power provides sufficient energy for deep fusion of multi-layer composite TPU fabric. Weld seams remain waterproof and tight for long-time outdoor water exposure.

Can I switch structure between sliding table and rotary table?

Three types of structures are optional at ordering stage. We can design sliding, rotary or double sliding layout according to your products. Later reconstruction can be evaluated upon request.

Can we customize extra-long worktable for large backpacks and long filter bags?

Yes, electrode dimension and sliding stroke are not limited to standard 800*800mm. We design extended worktable for oversized bags and long filter sacks.

Can one machine produce both filter bags and ice bags?

Yes. Simply replace mould and adjust welding parameters. The temperature control system adapts to both laminated non-woven filter material and TPU composite fabric for flexible mixed production.

What about warranty for customized machines?

1-year full machine warranty plus lifetime remote technical support. Engineers can conduct on-site installation, commissioning and operator training. All technical inquiries will be replied within 24 hours.

Contact HIPOWER for Custom Welding Solution

Free sample test available for 25KW sliding & rotary HF machines. Our professional engineers design tailored equipment according to bag dimension, fabric thickness and production craft.

▶ Request Free Quotation ▶ Free Material Sample Test ▶ Download Catalogue

Contact Info:

Email: hipower06@hi-pwr.com

WhatsApp:+86-135-9014-6525

Tel:+86-769-8600-3636 ext.812

About DONGGUAN HIPOWER LTD

Founded in 1999 in Dongguan China, HIPOWER is a professional manufacturer of high-power sliding & rotary high frequency welding machines, including filter bag heat presses, outdoor TPU bag HF welders and large gantry HF equipment. All models are CE certified and exported to over 60 countries worldwide. The HR-25KWAT series focuses on deep non-standard customization, solving common drawbacks of standard machines such as limited table size, insufficient power and single structure for outdoor goods and filter industry. We help factories run multiple product lines on one customized equipment and improve finished waterproof performance.
