HR-15KWT Auto Sliding HF Welding & Cutting Machine | Eco Blister Pack, Leather Embossing & Thick Material Cutting Equipment

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Aug 12,2026 | Updated: Aug 12,2026

HIPOWER has specialized in industrial HF welding & cutting equipment for over 27 years, delivering customized one-step welding-cutting solutions for packaging, leather goods, footwear and thick material factories worldwide.

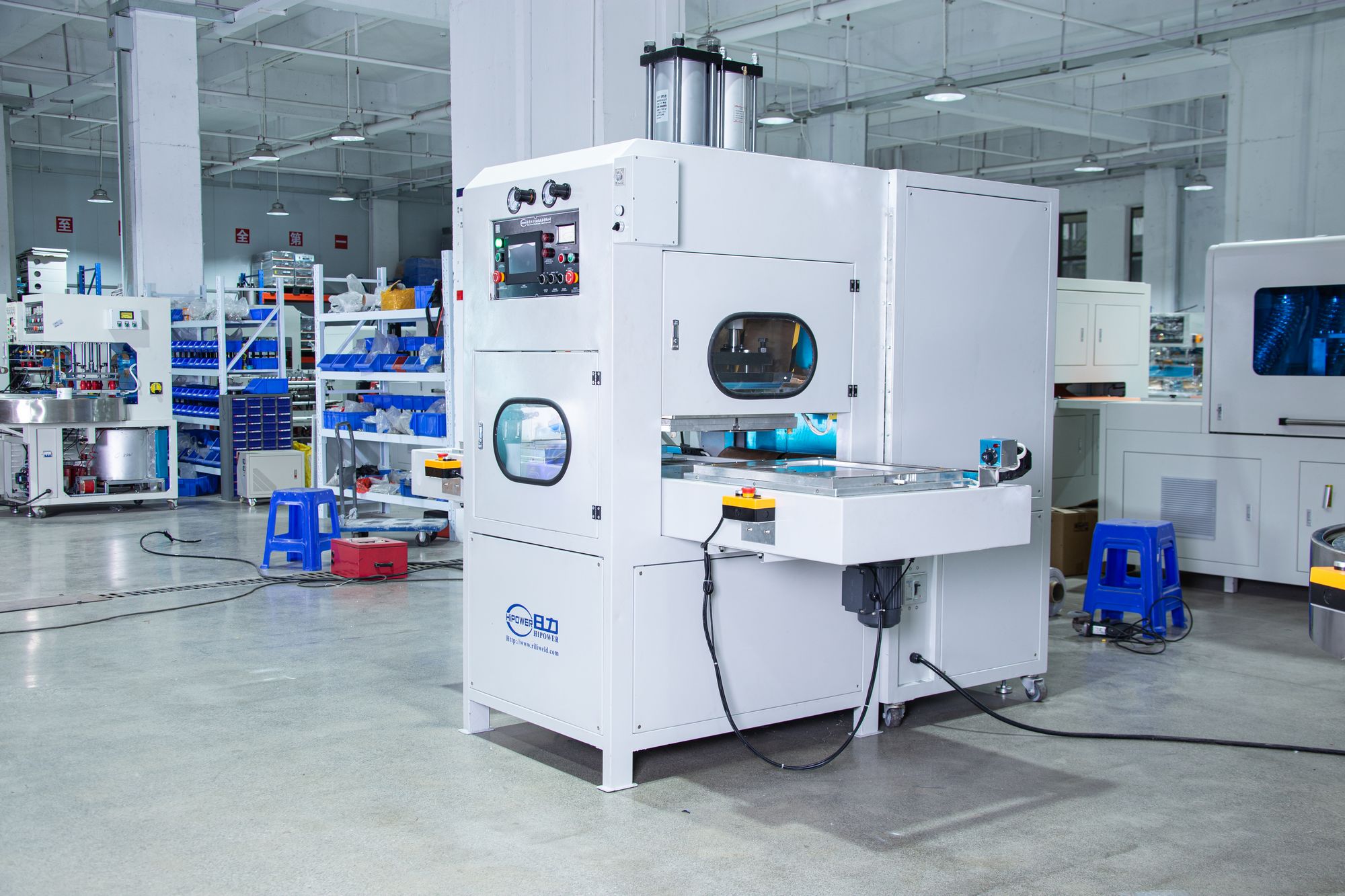

HIPOWER HR-15KWT Sliding HF Welding & Cutting Machine: Dual-Purpose Solution for Eco Packaging, Leather Embossing and Thick Material Cutting

Manufacturers producing APET/PETG/GAG eco blister packs, leather embossed products and thick multi-layer materials face common challenges. Single-function machines only complete one process. Eco plastic easily gets whitened, burnt or leaves burrs after cutting. Insufficient pressure causes faint and uneven embossing on leather. Thick multi-layer materials may deform or show uneven cuts during die cutting. Single-station machines waste time on loading and unloading, while fixed-pressure standard machines cannot adapt flexibly to different material thicknesses. To solve these pain points, DONGGUAN HIPOWER LTD launches HR-15KWT automatic sliding table HF welding and cutting machine. It features double-station alternate operation, one-step welding and cutting, precise temperature control, and customizable cutting force from 1T to 80T. It supports eco packaging mass production, leather embossing and thick material cutting, with full non-standard customization available.

Core Technical Features of the HR-15KWT

1. 15KW High-Q Oscillation Tube for Stable Multi-Material Performance

Equipped with 15KW HF power and premium 8T85RB electron tube running on 27.12MHz industrial frequency, the high-Q oscillation circuit delivers stable and reliable output. The energy output is optimized for hard-to-weld eco films such as APET/PETG/GAG to achieve firm sealed edges without whitening. For PU and PVC leather, it creates deep, clear and long-lasting embossing patterns. For thick multi-layer materials, it works with customizable cutting force to complete stable die cutting. One machine covers packaging welding-cutting, leather hot pressing and thick material cutting.

2. Double-Station Sliding Table for Higher Productivity

Left and right sliding stations work alternately under a preset program. While one station performs welding and cutting, the other station allows loading and unloading at the same time, eliminating idle waiting time. Compared with single-station models, productivity is significantly improved with lower labor intensity, suitable for continuous mass production of blister packs, leather embossing and thick material cutting orders.

3. Simultaneous Welding & Cutting for Burr-Free One-Step Forming

The machine completes HF welding and die cutting simultaneously in one cycle. Workpieces are sealed and trimmed in a single process with smooth, clean edges free of burrs. Eco blister packs have neat edges, leather embossing has sharp contours, and thick material cuts remain flat. No secondary trimming is required, reducing post-processing labor and improving finished product yield.

4. High-Precision Temperature Control with ±2.5℃ Accuracy

Built-in high-precision temperature control system maintains temperature tolerance within ±2.5℃, adjustable from 30℃ to 200℃. It precisely matches heating temperature for eco films, leather fabrics and multi-layer composite materials, avoiding scorching from overheating or weak bonding from insufficient temperature, ensuring consistent quality in mass production.

5. Customizable Cutting Force 1T–80T for Stable Thick Material Processing

The cutting force can be customized over a wide range from 1T to 80T. Pressure parameters can be configured individually according to material thickness, number of layers, die size and processing technology. Whether for thin eco packaging, medium-thick leather embossing or thick multi-layer material cutting, the machine can match appropriate pressure to ensure flat cuts, clear embossing patterns and low deformation.

6. Optional Press Modes: Pneumatic-Hydraulic or Full Hydraulic

Two press modes are available: pneumatic-hydraulic drive and full hydraulic drive. Customers can select the best solution based on material thickness, processing craft and productivity requirements. Full hydraulic structure delivers heavier and more stable pressure, suitable for thick material cutting, deep leather embossing and large-area die cutting. Pneumatic-hydraulic mode offers faster response and higher efficiency, suitable for conventional packaging welding-cutting and medium-thin material processing.

7. High-Sensitivity 5557 Anti-Flash Protection for Mould Safety

Standard high-sensitivity 5557 instant anti-spark system cuts HF power within milliseconds when abnormal flash occurs. It effectively protects cutting dies, embossing moulds and internal core components, reducing maintenance cost of expensive custom moulds and supporting 24/7 non-stop factory operation.

8. Full Customization & Complete ODM/OEM Support

Worktable size, sliding stroke, power rating, cutting force, heating system and press mode can all be customized. Special configurations such as dedicated leather embossing stations, thick material cutting structures, automatic feeding mechanisms and multi-station rotary designs are available. Private-label ODM & OEM service is provided to build exclusive welding-cutting production lines based on customer workshop layout and process requirements.

Suitable Applications & Compatible Materials

Eco Packaging Applications

Simultaneous welding and cutting of APET/PETG/GAG eco blister packs, toothbrush packaging, toy blisters, hardware tool boxes and food eco packaging.

Leather Embossing Applications

PU/PVC leather embossing, shoe upper pattern pressing, bag and leather goods logo stamping, leather trademark hot pressing, artificial leather concave-convex patterning.

Thick Material Cutting Applications

Multi-layer plastic sheets, composite coated fabrics, thick leather, foam composite materials, automotive interior sheets and large-area die cutting processing.

Compatible Materials

APET, PETG, GAG eco plastic sheets, PVC and PU leather, composite coated fabrics, foam materials and all HF-weldable plastic and leather fabrics.

Supported Processes

HF welding, synchronous die cutting, leather embossing, pattern hot stamping, thick material cutting.

Main Technical Specifications

Model: HR-15KWT

HF Output Power: 15KW (5KW~15KW power customization available)

Electron Tube: 8T85RB

HF Frequency: 27.12MHz

Power Supply: AC 380V / 50Hz 3-Phase, voltage customizable for export

Input Power: 25KVA

Max. Cutting Force: Customizable 1T–80T

Press Mode: Standard pneumatic-hydraulic, full hydraulic optional

Max. Electrode Gap: 200mm

Electrode Moving Range: 150mm

Standard Upper Electrode Size: 600800mm (size and shape fully customizable)

Standard Lower Electrode Size: 600800mm (sliding table size customizable)

Sliding Table Size: 650*850mm

Temperature Range: 30℃~200℃ adjustable, ±2.5℃ accuracy

Overall Machine Size: Final dimension subject to official quotation drawing

Remarks: Full machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.

Frequently Asked Questions

Can HR-15KWT process PETG eco blister packs without whitening or burning?

Yes. The machine is optimized for eco hard-to-weld films, paired with precise temperature control and anti-flash protection to deliver firm clean seals without whitening, scorching or burrs, meeting food-safe eco packaging standards.

Can it do leather embossing? How is the pattern clarity?

Yes, it supports leather embossing with custom embossing moulds. Pressure and temperature are precisely adjustable to create clear, three-dimensional and uniform patterns on PU and PVC leather, ideal for shoes, bags and leather trademark stamping.

Is the cutting force sufficient for thick multi-layer materials?

Yes. The cutting force can be customized from 1T to 80T according to material layers, thickness and die size. It provides more stable cutting results for multi-layer plastic sheets, composite coated fabrics, thick leather and foam composite materials.

Can we run only one station? Is it easy to operate?

Yes, the program supports both single and double station modes which can be switched freely via touch screen. Operators can choose modes flexibly according to order volume, suitable for both small-batch sampling and mass production.

Can cutting pressure be customized for heavier jobs?

Yes, cutting pressure can be customized from 1T to 80T. Full hydraulic upgrade is also available for ultra-thick materials, large-area die cutting and deep embossing requiring higher pressure.

What is the warranty policy for customized machines?

1-year full machine warranty plus lifelong remote technical support. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.

Contact HIPOWER for Custom Welding & Cutting Solution

All series sliding HF welding and cutting machines (5KW/8KW/10KW/12KW/15KW) support free material sample testing. Our engineers design tailored equipment based on material, product size and process requirements.

▶ Request Free Quotation ▶ Free Material Sample Test ▶ Download Machine Catalogue

Contact Info:

Email: hipower06@hi-pwr.com

WhatsApp:+86-135-9014-6525

Tel:+86-0769-8600-3636 ext.812

About DONGGUAN HIPOWER LTD

Founded in 1999 in Dongguan China, HIPOWER specializes in industrial HF welding and cutting equipment with 27 years of R&D experience. Our product portfolio includes sliding HF weld-cut machines, projection screen welders, automotive interior HF machines, blister packaging machines and cylinder forming machines. All machines hold CE certification and export to over 60 countries globally. The HR-15KWT series focuses on high-force non-standard customization, solving industry pain points such as poor eco blister cutting quality, insufficient leather embossing pressure, unstable thick material cutting and low single-station efficiency. It helps packaging, leather goods and thick material factories achieve multi-purpose flexible mass production.
