HR‑15KWT Auto‑Sliding HF Synchronous Welding & Cutting Machine | Eco Blister & Leather Embossing HF Equipment

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Aug 28,2026 | Updated: Aug 28,2026

HIPOWER has 27‑year experience in high‑frequency sync welding‑cutting machinery, delivering one‑stop customized HF solutions for packaging, leather‑goods and daily‑goods factories worldwide.

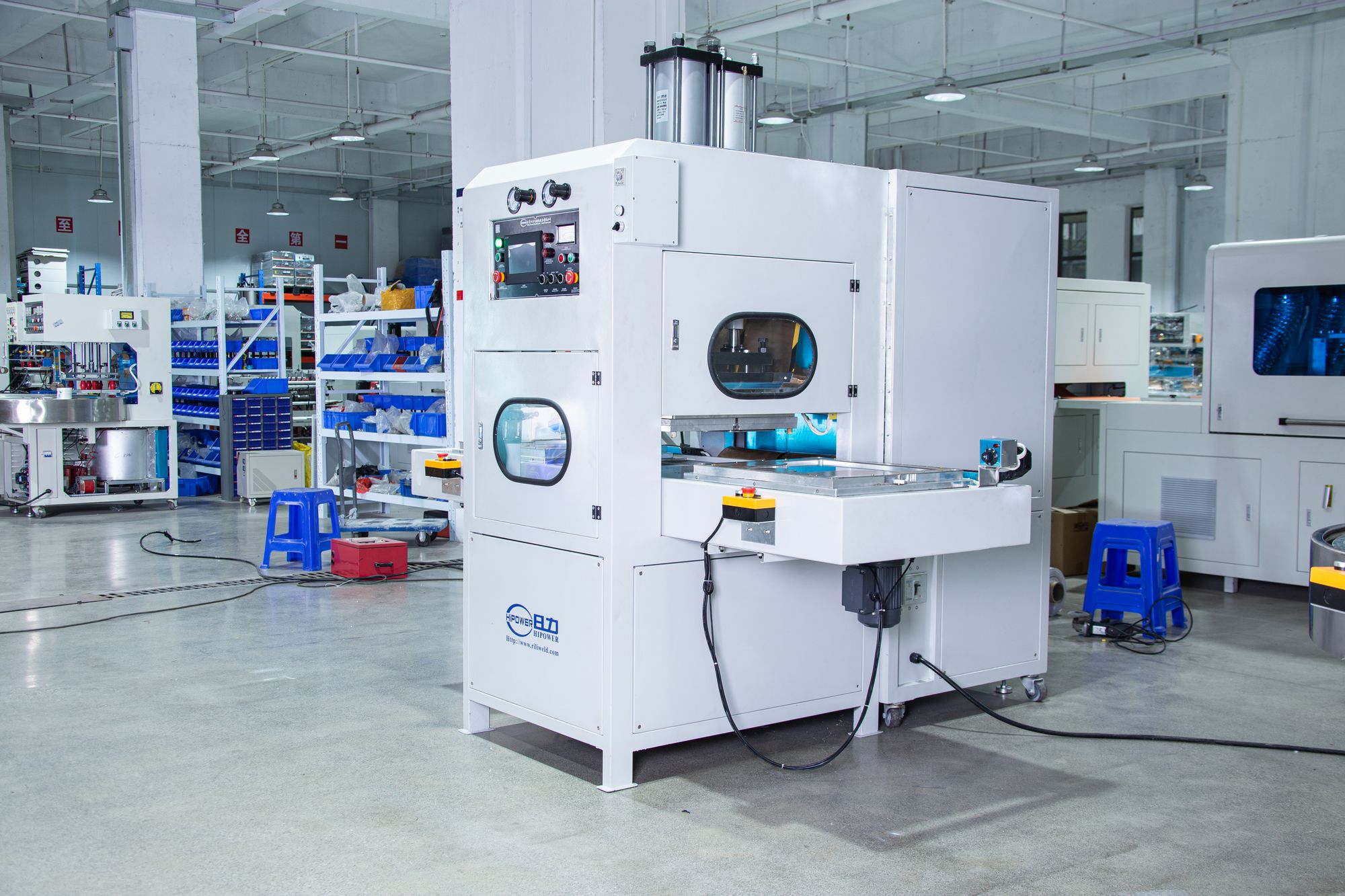

HIPOWER HR‑15KWT Auto‑Sliding HF Synchronous Welding & Cutting Machine: All‑In‑One Production Solution For Eco‑Blister & Leather Embossing

Manufacturers for APET, PETG, GAG eco‑blister packs, tooth‑brush clamshell packages and PU leather embossed articles face common bottlenecks. Conventional machines separate welding and cutting into two independent procedures with low throughput. Eco plastic films tend to flash, burn or leave whitened burr‑edges. Fixed pressure settings cannot fit both thin and thick materials. Single‑station models waste loading‑unloading time. Standard machines hardly satisfy flexible multi‑SKU production with various mould dimensions.

DONGGUAN HIPOWER LTD launches HR‑15KWT auto‑sliding high‑frequency synchronous welding‑cutting machine. Equipped with bi‑directional auto‑sliding tables with pre‑programmed alternate dual‑station cycles, it completes welding and die‑cutting within one single working cycle. Powered by high‑Q oscillation tube, customizable cutting force ranges from 1T‑80T. Pneumatic‑hydraulic or full‑hydraulic press modes are selectable, paired with ±2.5℃ high‑precision temperature control. It processes eco blister packs as well as leather embossed products, with comprehensive non‑standard customization available.

Core Technical Features of HR‑15KWT

1. Stable 15KW High‑Q Oscillation Tube for Multi‑Material Processing

Equipped with 15KW HF power and premium 8T85RB electron tube at industrial 27.12MHz. High‑Q oscillator delivers well‑balanced energy output. Tuned specially for hard‑to‑weld APET/PETG/GAG eco‑films to achieve tight sealing without burning or whitening. It also performs reliable embossing for PU/PVC leather, shoe‑pad and soft‑rubber articles for long‑run mass production.

2. Auto‑Bidirectional Sliding Table, Alternate Dual‑Station with Mechanical Interlock

Pre‑programmed left‑right sliding tables run alternately with mechanical safety interlock. While one station carries out welding‑cutting cycle, operators load/unload workpieces on the other station to eliminate machine idle time. Productivity rises greatly compared to single‑station machines. Operators stay outside hazardous welding zone to improve safety for high‑volume blister and leather‑goods orders.

3. Simultaneous Welding & Cutting for Burr‑Free Finished Parts

High‑frequency welding and die cutting finish synchronously in one stroke. Eco blister shells, tooth‑brush packages and leather‑embossed parts obtain neat clean edges without secondary manual trimming, saving labor cost and lowering reject ratio.

4. High‑Precision Temperature Control ±2.5℃ for Wide Material Range

Precise thermal control system adjustable from 30℃‑200℃ with tolerance ±2.5℃. Thin eco‑films avoid thermal scorching; thick‑leather and multi‑layer composites get sufficient hot‑press effect. Consistent quality is guaranteed in continuous batches.

5. Customizable Cutting‑Force 1T‑80T, Two Press‑Mode Options

Cutting force can be customized from 1T‑80T, built with heavy‑duty rigid frame for stable output. Two press solutions are selectable: pneumatic‑hydraulic for fast response for regular blister packaging; full‑hydraulic delivers heavy stable pressure for deep embossing and large‑size die‑cutting of thick leather & multi‑layer composites.

6. 5557 High‑Sensitivity Anti‑Flash Protection for Expensive Mould Safety

Built‑in 5557 instant anti‑spark system cuts HF power upon flash occurrence. It protects cutting dies, leather‑embossing moulds and internal electronic components, reduces mould wear during frequent product change‑over and supports 24‑hour non‑stop factory‑floor‑operation.

7. Full Customization & Complete ODM/OEM Support

Electrode size, slide stroke, pressure rating and heating assemblies are fully customizable. Larger work‑table and auto‑feeding mechanism can be added for oversized clamshell boxes or large‑format leather embossing. Private‑label ODM / OEM service is available to build exclusive sync‑cutting production lines matching customer workshop layout.

Suitable Applications & Compatible Raw Materials

Eco‑Friendly Blister Packaging

APET / PETG / GAG dual blister shell, tooth‑brush blister pack, soft plastic clamshell, toy & hardware blister‑card welding & synchronous cutting

Leather Embossing & Forming

PU / PVC leather embossing, shoe‑pad patterning, trademark hot‑stamping, shoe‑material accessories, soft inflatable articles integrated welding‑cutting

Compatible Materials

APET, PETG, GAG eco‑film, PVC, PU artificial leather and all HF‑weldable plastic composite materials

Supported Processes

HF welding, synchronous die‑cutting, leather embossing & hot‑pattern forming

Main Technical Specifications

Model: HR‑15KWT

HF Output Power:15KW (customizable within 5‑15KW)

Electron Tube:8T85RB

HF Frequency:27.12MHz

Power Supply:AC 380V 3‑Phase 50Hz, export voltage customizable

Input Power:25KVA

Max Cutting Force:30T (customizable 1T‑80T)

Press Mode: Standard pneumatic‑hydraulic, full‑hydraulic optional

Max Electrode Gap:200mm

Electrode Moving Range:150mm

Standard Upper Electrode Size:600800mm (size & shape customizable)

Standard Lower Electrode Size:600800mm; sliding‑table dimension 650*850mm (table customizable)

Temperature Range:30‑200℃ adjustable, accuracy ±2.5℃

Overall Machine Size: Final dimension subject to official quotation drawing

Remarks: Full‑machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.

Frequently Asked Questions

Will HR‑15KWT burn or whiten PETG eco‑blister?

Yes it works well. Optimized energy setting together with precise temperature control plus anti‑flash protection minimizes scorching and whitening, complying with food‑grade packaging requirements.

Can one machine handle both blister sealing and leather embossing?

Yes. Just swap corresponding moulds. Process recipes can be saved and recalled for quick product change‑over to realize multi‑purpose operation.

Is heavy cutting‑force available for thick leather?

Cutting‑force can be customized within 1T‑80T, full‑hydraulic upgrade is available for deep embossing & large‑format heavy‑duty die‑cutting.

Can dual‑slide tables switch to single‑station working mode?

Program supports single‑station / dual‑station switch. Single‑station for small‑batch sampling; dual‑station alternate mode for mass‑volume production.

What about warranty for customized machines?

1‑year full‑machine warranty plus lifelong remote‑technical‑support. Engineers provide on‑site installation, commissioning & operator training. All technical inquiries get response within 24 hours.

Contact HIPOWER for Custom Welding‑Cutting Solution

Full‑range 5KW‑15KW sliding‑table synchronous fusing machines accept free material sample testing. Our engineers design tailor‑made equipment according to workpiece dimension, material and output requirement.

▶ Request Free Quotation ▶ Free Material Sample Test ▶ Download Machine Catalogue

Contact Info:

Email: hipower06@hi‑pwr.com

WhatsApp:+86‑135‑9014‑6525

Tel:+86‑0769‑8600‑3636 ext.812

About DONGGUAN HIPOWER LTD

Founded in 1999 in Dongguan China, HIPOWER focuses on industrial HF welding & synchronous fusing equipment with 27‑year R&D history. Our portfolio covers auto‑slide synchronous fusing machines, membrane‑track welders, automotive‑interior HF machines, filter‑bag welders, rotary blister machines and cylinder forming machines. All products carry CE certificates and are exported to over 60 countries worldwide. The HR‑15KWT series highlights multi‑process high‑force non‑standard customization, solving pain‑points like burnt eco‑blister edges, insufficient embossing pressure and low efficiency caused by separate procedures. It empowers packaging & leather‑goods factories for flexible multi‑purpose mass‑production.
