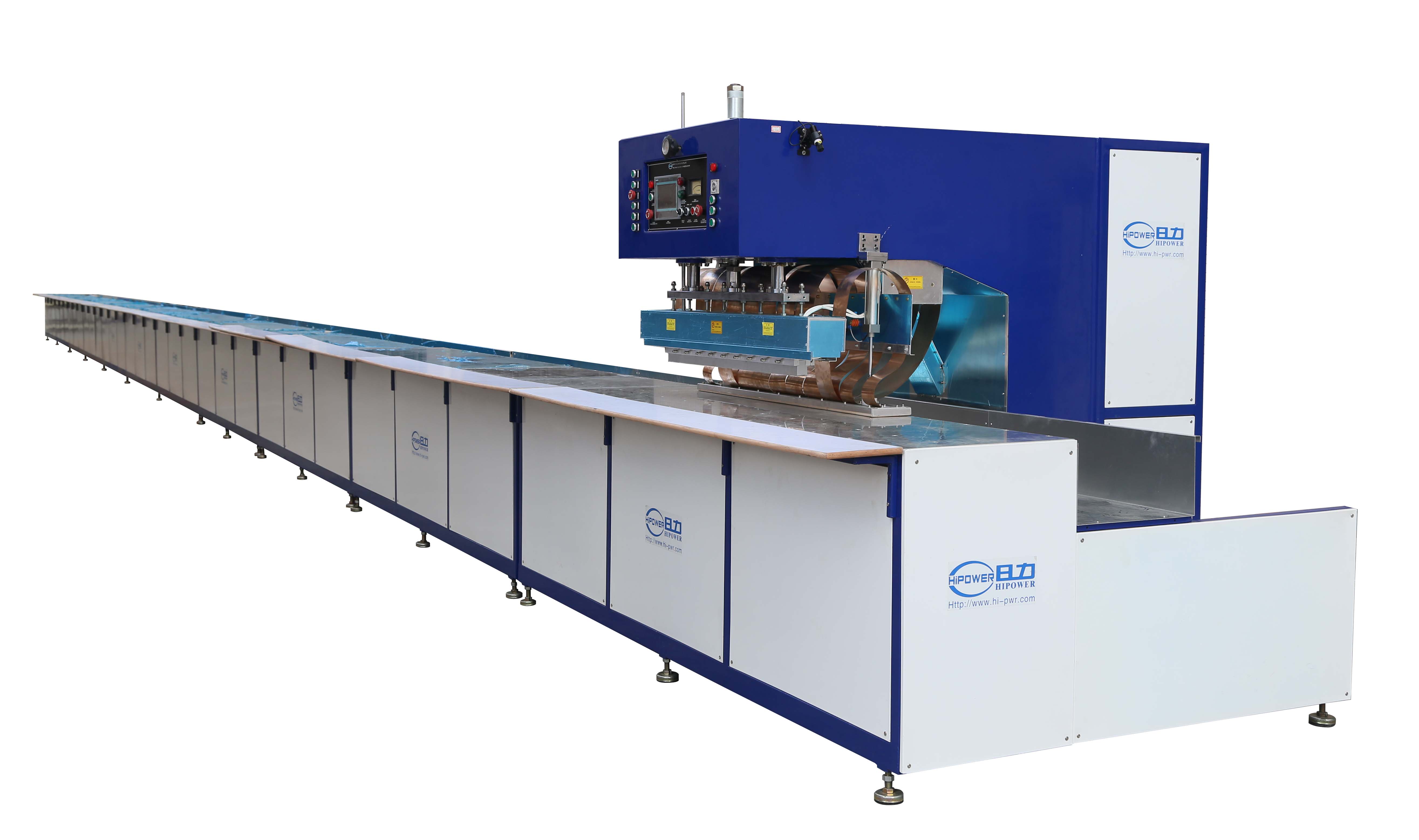

HR-15KWA Auto Track Moving HF Welder for Tarpaulin & Membrane Long Continuous Welding

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Jun 24,2026 | Updated: Jun 24,2026

HIPOWER has specialized in high-frequency welding equipment R&D and manufacturing for over 27 years, providing customized solutions for customers in more than 60 countries worldwide.

HIPOWER HR-15KWA Auto Track Moving HF Welder: One-Stop Continuous Welding Solution for Extra-Long Tarpaulin & Membrane Fabric

Manufacturers of outdoor membrane structure, canopy tent, truck tarpaulin, large inflatable pool and tension membrane face obvious drawbacks when using fixed HF machines: unable to complete one-piece long weld up to hundreds of meters, low efficiency from segmented splicing, weak waterproof seams and wrinkles caused by manual fabric pulling. To solve these industry pain points, DONGGUAN HIPOWER LTD releases HR-15KWA auto track moving HF welder. The welding head travels automatically along customized rails, supporting non-stop continuous welding for 6m to 100m super long seams, becoming core production equipment for large waterproof fabric factories.

Core Technical Features of the HR-15KWA

1. Stable 15KW HF Output with 8T85RB Electron Tube

Equipped with 15KW high frequency generator and premium 8T85RB tube at standard 27.12MHz frequency. European square oscillation box delivers steady powerful output for thick PVC tarpaulin and TPU membrane long-hour continuous welding. Integrated weld seam provides far better waterproof and tear resistance than segmented joints.

2. Auto Moving Rail Design, Customizable 6~100m Work Track

The welding head moves automatically along the rail; worktable track length can be customized from 6m,9m,12m,15m up to 100m. No manual fabric pulling required, one single continuous weld covers full-length tarpaulin/membrane edge, cutting production time by over 2/3 compared with traditional segmented processing.

3. PLC Servo Synchronous Drive & Laser Precise Positioning

Adopts PLC servo motion control system with high positioning accuracy, paired with touch screen HMI for easy parameter setup. Standard laser light locates weld path in advance to avoid fabric shifting and uneven seam width, ensuring consistent finished products in mass production.

4. Optional Upgrades for Diverse Production Processes

Two practical optional functions available: ATS Auto-Tuning System automatically matches HF output for different thickness PVC/TPU materials; vacuum adsorption worktable fixes thin soft membrane flat without wrinkles, compatible with both heavy tarpaulin and light landscape film processing.

5. 5557 High-Sensitivity Anti-Flash + Air Intake Dust Filter

Standard instant spark protection cuts HF power within milliseconds to protect mould and internal electric parts once abnormal flash occurs. Built-in air intake filter blocks workshop dust to extend machine service life, stable for 24/7 non-stop factory operation.

6. Full Non-Standard Customization + ODM/OEM Support

Track length, electrode size, clamping pressure and HF power can be fully customized as per product requirements. Private label ODM & OEM service supported for large tarpaulin and membrane engineering manufacturers.

Suitable Applications & Compatible Materials

Outdoor tarpaulin: truck covers, agricultural canvas, camping canopy, carport membrane cloth

Membrane engineering: tension membrane, landscape architectural membrane, space cable membrane, inflatable roof membrane

Large inflatable goods: inflatable swimming pool, flexible gas tank, inflatable tent, drifting island

Advertising landscape: large printing advertising film, outdoor waterproof banner, soft ceiling membrane

Other PVC/TPU thermoplastic coated waterproof fabrics requiring long continuous weldingMain Technical Specifications

plaintext

Model: HR-15KWA

HF Output Power:15KW

Electron Tube:8T85RB

HF Frequency:27.12MHz

Power Supply:AC 380V/50Hz/3-Phase(Customizable)

Input Power:25KVA

Max. Clamp Pressure:1000KGS

Max. Electrode Gap:150mm

Electrode Moving Range:100mm

Upper Electrode Size:50*50*900mm (Wheel roller type optional:50*50*1500mm)

Table Track Length:6m/9m/12m/15m up to 100m Customizable

Laser Light Positioning:Included

Worktable Rollers:Included

Packing Dimension:L3220*W2200*H2350mm & L3220*W1800*H1850mm (For reference only, subject to quotation sheet)

Optional Functions: ATS Auto-Tuning System, Vacuum Adsorption Worktable

Remarks:Customized,ODM&OEM Accepted;Specifications subject to change without notice for improvement

Frequently Asked Questions

Can HR-15KWA weld 100-meter long tarpaulin seam in one run?

Yes, the work track can be customized maximum 100 meters, the head travels automatically to finish full long weld continuously without segmentation.

How to avoid wrinkles when welding thin soft membrane?

Optional vacuum adsorption worktable holds fabric flat during travel welding, perfectly solve wrinkle issue for thin TPU landscape film.

Can I customize track length and electrode size separately?

Full custom service available, track length, electrode width, pressure and HF power can all be adjusted based on your product, OEM private label supported.

What safety protection does the machine have?

Three layers of safety protection: 5557 anti-spark system, overload power cut, emergency stop button. Air dust filter extends component lifespan, whole machine CE certified.

What’s your after-sale warranty policy?

1-year full machine warranty plus lifetime remote technical support. Engineers can travel to factory for installation, commissioning and operator training, all technical inquiries replied within 24 hours.

Contact HIPOWER for Custom Welding Solution

Standard rail machines or customized ultra-long 100m production lines are available. Our professional engineers provide tailored solution according to your tarpaulin & membrane product dimension.

▶ Request Free Quote ▶ Free Sample Test ▶ Download Catalogue

Contact Info:

Email:hipower9@hi-pwr.com

WhatsApp:+86-135-9014-6525

Tel:+86-769-86003636 ext.812

About DONGGUAN HIPOWER LTD

Founded in 1999 in Dongguan China, HIPOWER is a leading manufacturer of high-frequency welding equipment, specializing in auto-track HF welders, deep-throat tarpaulin machines, auto-slide cutting machines and full series HF equipment. All models pass CE certification and exported to over 60 countries worldwide. Our durable equipment greatly improves production efficiency and reduces defective splicing rate for tarpaulin and membrane factories.
