With the rapid development of outdoor membrane architecture, tent halls, flexible energy storage and advertising printing, the demand for large-area splicing of PVC and TPU membranes continues to grow. Conventional HF welders generally have narrow and shallow feeding throats, requiring repeated moving and turning of large membranes, leading to low efficiency. Long seams lack positioning references, causing misalignment, missing welds and weak sealing. Sparks during processing damage custom moulds and raise maintenance costs. Membranes vary in thickness and width across industries, and standard machines have poor adaptability.

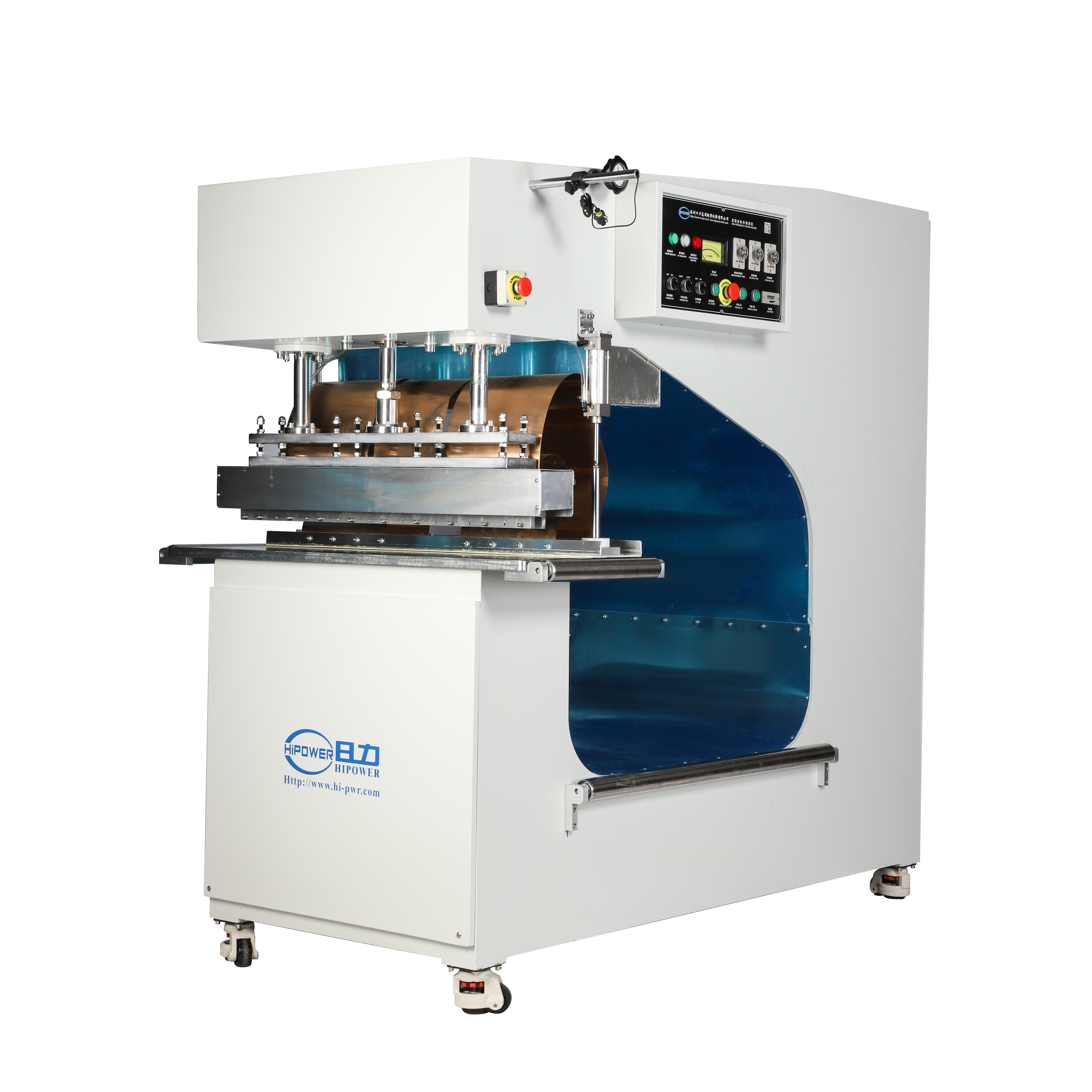

To solve these industry pain points, DONGGUAN HIPOWER LTD launches HR-15KW-F2 1150mm deep throat HF bar welder for PVC canvas & membrane. It features a 1150mm deep-throat wide feeding tank, European standard stable oscillation system, laser positioning guide and dual-roller feeding structure. Optimized for continuous splicing of large-area membranes, it widely applies to dozens of scenarios including architectural membrane, outdoor tarpaulin, flexible energy storage and inflatable products. Power ranges from 5KW to 35KW on request, with full non-standard customization available.
The 1150mm Deep Throat wide feeding tank provides ample depth and width. Large-roll and wide-format PVC/TPU membranes can be fed in full width for continuous long-seam welding without repeated moving or turning. It is especially suitable for continuous splicing of large-area membrane structures and wide tarpaulins, greatly reducing segmented joints, improving seam integrity and waterproof performance while reducing labor intensity.
Equipped with European standard square HF oscillation cabinet and premium 8T85RB electron tube running on 27.12MHz industrial frequency. The robust anti-interference circuit delivers stronger and more stable output. It achieves deep fusion for thick PVC coated fabric, TPU composite membrane and coated tarpaulins. Weld seams feature high tensile strength, tear resistance and waterproof performance, meeting weather resistance and water pressure requirements for outdoor engineering products.
Standard laser light positioning guide helps operators align membranes precisely along the laser line for straight uniform long seams without deviation. Rollers on worktable and both sides of the tank bottom enable smooth and effortless feeding of heavy membranes. Compared with pure manual feeding, both splicing accuracy and operating efficiency are improved.
Standard high-sensitivity 557 instant anti-spark system cuts HF power within milliseconds when abnormal flash occurs, effectively protecting welding moulds and internal core components, reducing maintenance cost of expensive custom moulds. Air intake filtering design keeps dust and moisture away from electronic components, extending service life and supporting long-time continuous operation on construction sites and in factories.
Ground pressure plate protection structure with front guard prevents operators from reaching the welding zone. Dual bottom rollers ensure smooth feeding and reduce scratching of heavy membranes. The machine complies with industrial safety standards for both outdoor on-site work and factory mass production.
Optional ATS auto-tuning system automatically adjusts energy output for membranes of different thicknesses for consistent welding quality. Machine power is selectable from 5KW to 35KW to fit everything from thin advertising banners to extra-thick industrial tarpaulins. Throat depth, welding bar length and frame structure are all customizable to match specific project scenarios and product specifications.
With its large-span deep throat design and stable HF output, HR-15KW-F2 is widely compatible with five categories and dozens of 细分 membrane welding applications:
Suitable for all kinds of outdoor architectural membrane welding, including tensile membrane, space membrane, cable membrane structure, carport membrane, landscape membrane, spire membrane, park membrane, building facade membrane and charging station membrane. The large-span deep throat allows full-width continuous welding with strong sealing performance, meeting waterproof, wind-resistant and weather-resistant engineering standards.
Fits splicing and edge sealing of outdoor tents, large marquee halls, advertising banners, truck covers, logistics tarpaulins, agricultural sunshades, storage tarpaulins, carports and canopies. Long seams are formed in one pass with minimal misalignment of printed graphics and excellent waterproof performance, ideal for mass production in advertising, outdoor products and logistics industries.
Processes flexible biogas digesters, oil storage bags, PVC air bags, water bags, liquid bags, inflatable boats, inflatable castles, large inflatable amusement facilities and inflatable tents. High-frequency fusion delivers high strength seams with excellent air and water tightness, meeting pressure sealing requirements of flexible storage and inflatable products.
Adaptable to agricultural greenhouse film, breeding shed film, grain storage tarpaulins, industrial dust covers, mining air ducts, waterproof membranes and fire-resistant tarpaulins. The robust machine adapts to complex working conditions in factories and outdoor sites, supporting long-time continuous operation.
Applicable for stretch ceilings, decorative membranes, exhibition membranes, bus station membranes, bicycle shed membranes and other commercial public membrane welding. Smooth neat seams meet high appearance requirements of decorative membrane projects.
Model: HR-15KW-F2 HF Output Power:15KW (5KW~35KW power customization available) Electron Tube:8T85RB HF Frequency:27.12MHz Power Supply:AC 380V / 50Hz 3-Phase, voltage customizable for export Input Power:25KVA Max. Clamp Pressure:1000KGS Max. Electrode Gap:150mm Electrode Moving Range:100mm Standard Upper Electrode Size:5050900mm (length customizable) Standard Lower Electrode Size:4501050mm Deep Throat Width:1150mm Standard Configurations: Laser positioning guide, worktable rollers, double bottom rollers, 557 anti-flash, air intake filter Optional Configurations: ATS auto-tuning system, power upgrade, extended welding bar, custom throat width Packing Size: L2100W1320*H2050mm Overall Machine Size: Final dimension subject to official quotation drawing Remarks: Full machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.
Yes. The 1150mm deep throat wide tank allows full-width continuous welding, greatly reducing segmented joints. The seams have good integrity and waterproof performance, ideal for both on-site membrane construction and factory mass production.
Yes. European standard oscillation box delivers sufficient stable power. Optional auto-tuning system provides deep fusion for thick coated tarpaulins with high tensile strength and no peeling or leaking.
The large deep throat space also facilitates placement and welding of irregular and ring-shaped membranes, adapting to more special-shaped membrane structures and inflatable products.
Yes, full customization is supported. Power ranges 5KW-35KW. Throat width, welding bar length and frame structure can all be tailor-designed for different industries and products.
1-year full machine warranty plus lifelong remote technical support. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.
All series F2 deep throat HF welders (8KW/10KW/12KW/15KW/25KW) support free material sample testing. Our engineers design tailored equipment based on material, width, application scenario and production capacity. ▶ Request Free Quotation ▶ Free Membrane Sample Test ▶ Download Machine Catalogue Contact Info: Email: hipower06@hi-pwr.com WhatsApp:+86-135-9014-6525 Tel:+86-0769-8600-3636 ext.812
Founded in 1999 in Dongguan China, HIPOWER specializes in industrial HF welding equipment with 27 years of R&D experience. Our product portfolio includes deep throat membrane welders, track-type auto walking welders, synchronous weld-cut machines, automotive interior HF machines, blister packaging machines and cylinder forming machines. All machines hold CE certification and export to over 60 countries globally. The HR-15KW-F2 series focuses on large-span multi-scenario non-standard customization, solving industry pain points such as low efficiency of large-area membrane splicing, poor seam sealing and weak equipment adaptability. We help membrane engineering, outdoor products and flexible energy storage industries achieve efficient and high-quality membrane welding production.
