HR-15KW-F2 1150mm Deep Throat HF Welder for Wide Tarpaulin & Membrane Fabric

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Jun 27,2026 | Updated: Jun 27,2026

HIPOWER has specialized in high-frequency welding equipment R&D and manufacturing for over 27 years, providing customized solutions for customers in more than 60 countries worldwide.

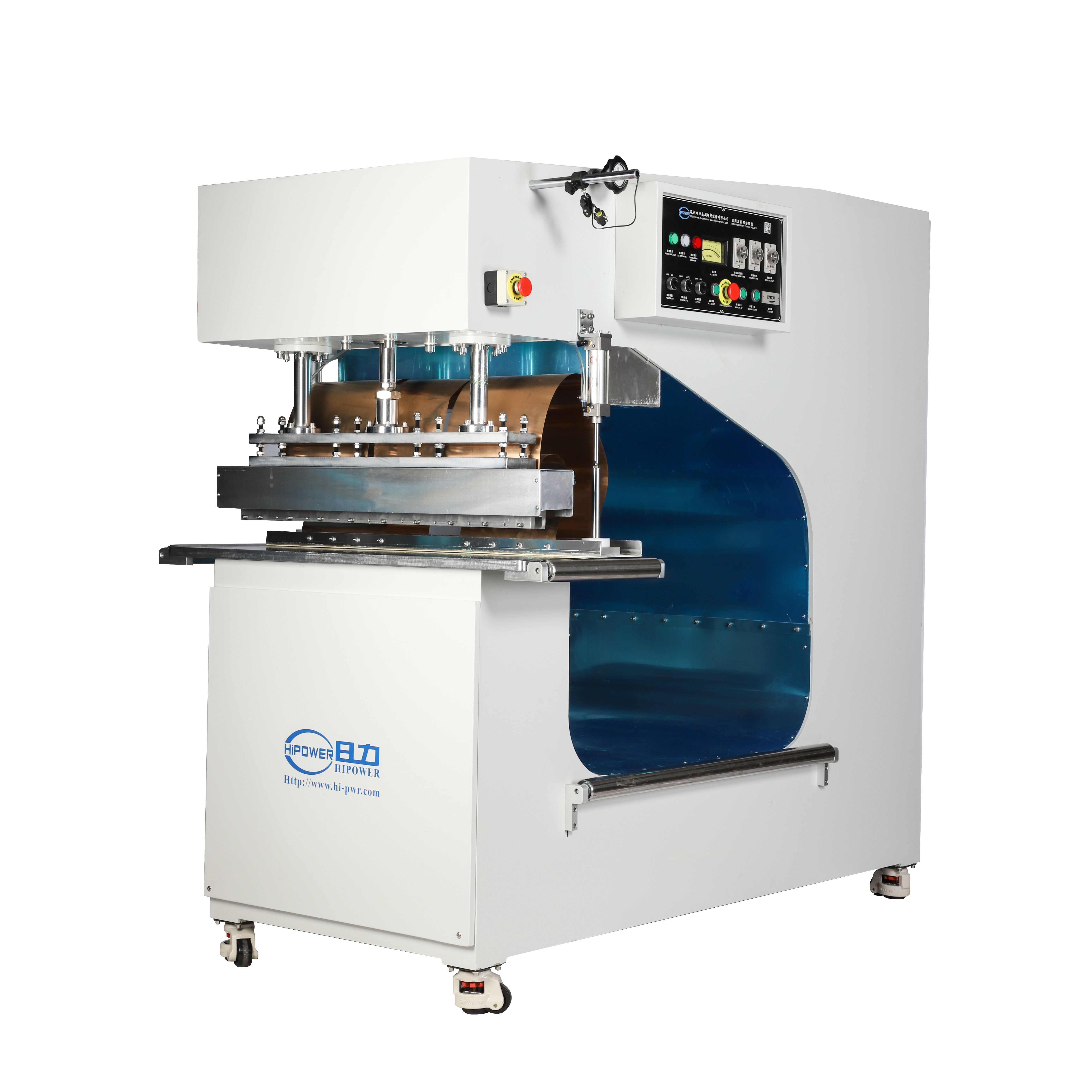

HIPOWER HR-15KW-F2 Deep Throat HF Welder: 1150mm Extra-Wide Space for Large Tarpaulin & Membrane Fabric Welding

For manufacturers of wide-format PVC tarpaulins, tension membranes, inflatable boats and truck covers, standard 750mm throat machines cannot feed wide cloth smoothly, requiring repeated cutting and segmented welding, which leads to excessive seams, poor waterproof performance and low productivity. DONGGUAN HIPOWER LTD has launched the HR-15KW-F2 1150mm extra-wide deep throat high frequency heat sealer. The widened feeding bin allows wide fabric to be fed without cutting, realizing one-step continuous long seam welding. It becomes the preferred upgrade machine for outdoor waterproof fabric factories.

Core Technical Features of the HR-15KW-F2

1. Stable 15KW Output with 8T85RB Electron Tube

Equipped with 15KW high-frequency generator and premium 8T85RB tube at 27.12MHz standard frequency. European square oscillation box delivers stronger and more stable power output, supporting long-hour continuous welding for thick PVC canvas and TPU membrane. Weld seams are tight with excellent waterproof and tear resistance.

2. 1150mm Extra-Wide Deep Throat for Unobstructed Feeding

This model features a widened 1150mm deep throat with ample rear space. Both the worktable and bottom bin are fitted with dual-side rollers. Wide tarpaulin and membrane can be fed directly without trimming, completing full-length continuous welding and eliminating segmented splicing.

3. Laser Positioning + Rear Safety Platen

Built-in laser light accurately marks the weld path to prevent fabric shifting and ensure straight seams. The grounding platen is installed behind the welding mould to completely avoid hand injuries for operators, greatly improving workshop safety.

4. 5557 Anti-Flash Protection + Air Intake Dust Filter

High-sensitivity 5557 spark protection instantly cuts off high-frequency power to protect mould and circuits. The air intake filtering system blocks dust, reducing electrical faults and supporting 24-hour non-stop production.

5. Optional Auto-Tuning System for Multi-Material Processing

The optional ATS auto-tuning system automatically adjusts HF power to fit PVC and TPU coated fabrics of different thicknesses. One machine works for both thin landscape film and heavy truck tarpaulin.

6. Full Non-Standard Customization + ODM/OEM Support

Electrode size, pressure and power can be fully customized. Private label OEM service is available, and we can adjust machine structure according to fabric width and seam length to meet personalized production needs for outdoor soft goods.

Suitable Applications & Compatible Materials

Outdoor tarpaulin: truck covers, agricultural canvas, carport membrane, camping canopy

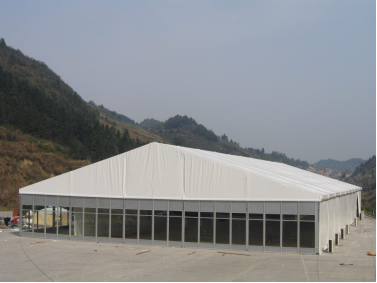

Membrane engineering: tension membrane, architectural membrane, space cable membrane, inflatable roof

Inflatable products: inflatable boat, kayak, flexible gas tank, large inflatable pool

Advertising material: outdoor waterproof banner, large printing film, soft ceiling membrane

Other PVC/TPU coated waterproof fabrics for long continuous edge sealing

Main Technical Specifications

plaintext

Model: HR-15KW-F2

HF Output Power:15KW

Electron Tube:8T85RB

HF Frequency:27.12MHz

Power Supply:AC 380V/50Hz/3-Phase(Customizable)

Input Power:25KVA

Max. Clamp Pressure:1000KGS

Max. Electrode Gap:150mm

Electrode Moving Range:100mm

Upper Electrode Size:50*50*900mm

Lower Electrode Size:450*1050mm

Laser Light:Included

Table Rollers:Both Sides Included

Bottom Bin Rollers:Both Sides Included

Deep Throat Free Space:1150mm

Packing Dimension:L2100*W1320*H2050mm

Optional Function:Auto-Tuning System

Remarks:Customized,ODM&OEM Accepted;Specifications subject to change without notice for improvement

Frequently Asked Questions

How much wider is this throat compared with F1 model?

The deep throat reaches 1150mm, 400mm wider than regular F1 version, so extra-wide tarpaulin can be fed directly without cutting.

Can it weld thickened PVC canvas?

Yes, the 15KW power plus square oscillator ensures stable welding on heavy tarpaulin with tight, non-peeling seams.

Can we add the auto-tuning function?

ATS auto-tuning system is optional, which automatically adapts to different materials without manual frequency adjustment.

Is the safety protection complete?

It has 5557 anti-spark system, dust-proof circuit and rear safety platen, suitable for long-time mass production.

What about after-sales service?

1-year full warranty plus lifetime technical support, remote commissioning and on-site installation. All inquiries will be replied within 24 hours.

Contact HIPOWER for Custom Welding Solution

We provide standard 1150mm throat machines as well as customized widened tables and lengthened electrodes. Our engineers tailor production lines for tarpaulin and membrane products.
