HIPOWER has specialized in high-frequency welding equipment R&D and manufacturing for over 27 years, providing customized solutions for customers in more than 60 countries worldwide.

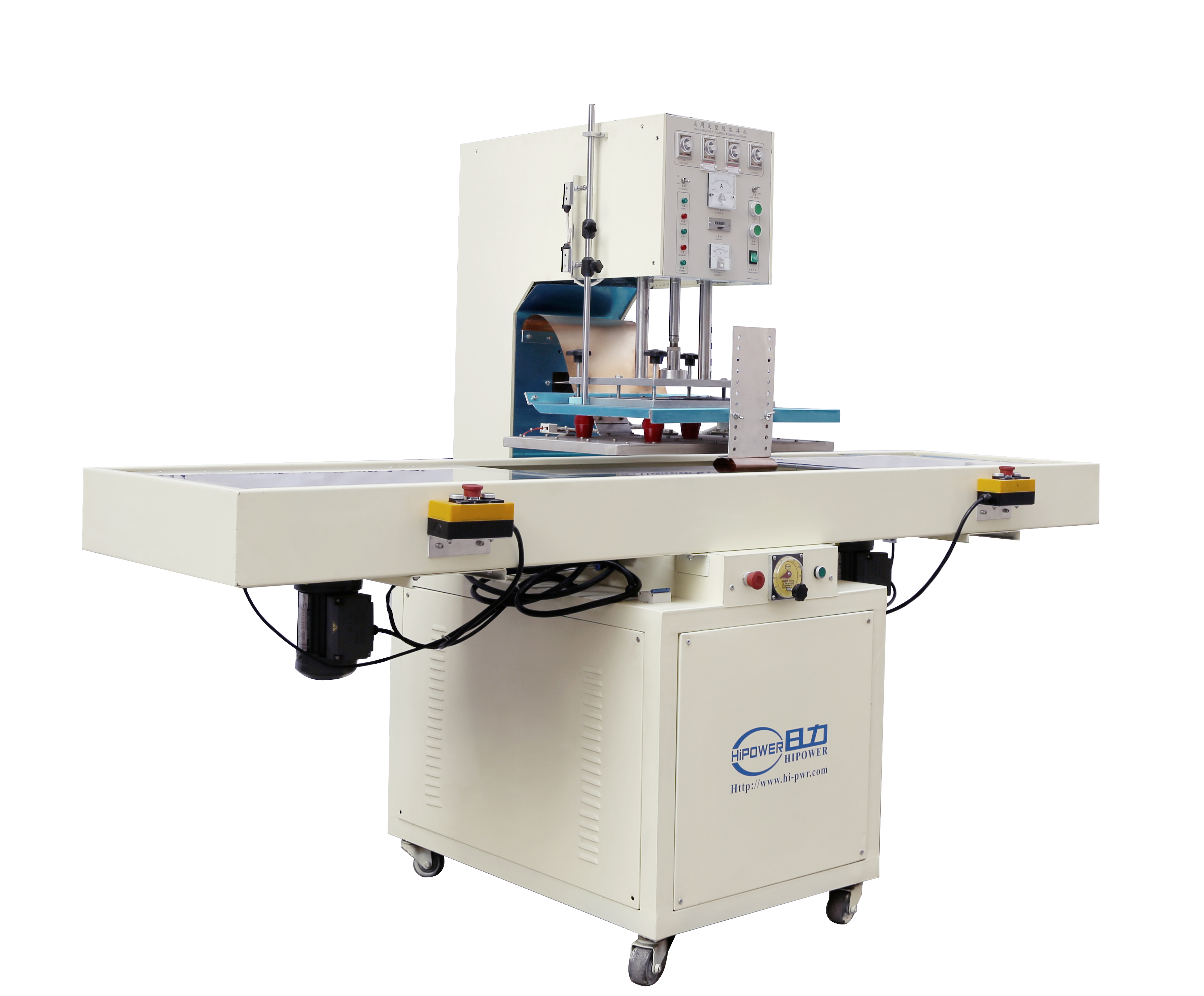

HIPOWER HR-15KW-AT Automatic Slide HF Welder: Efficient Welding Solution for Large-Area PVC/TPU Products
For manufacturers of large-area PVC/TPU products such as tarpaulins, membrane structures and inflatable products, achieving uniform, high-precision and efficient long-distance welding is a common industry challenge. Traditional manual slide machines are cumbersome to operate, have large positioning errors and unstable temperature control, which can easily lead to uneven welds and material deformation.
To solve these industry pain points, DONGGUAN HIPOWER LTD has launched the HR-15KW-AT automatic slide high frequency welding machine, a purpose-built solution for large-area PVC/TPU products, equipped with automatic slide, precision temperature control and stable HF output, which can efficiently complete long-distance and large-area heat sealing operations.
Core Technical Features of the HR-15KW-AT
1. 15KW Stable Output with 8T85RB Electron Tube
The HR-15KW-AT is equipped with a 15KW high-frequency oscillator and a premium 8T85RB electron tube, operating at the global industry-standard 27.12MHz frequency. This configuration delivers strong and stable output, easily meeting the continuous welding needs of large-area materials. The weld strength is close to the base material itself, with excellent waterproof and tear resistance.
2. Automatic Slide Design for Higher Efficiency
The machine adopts an automatic slide structure, which realizes automatic feeding and alignment of materials, greatly reducing manual operations and improving production efficiency. The slide runs smoothly and positions accurately, ensuring the uniformity of long-distance welds and avoiding errors and rework caused by manual operation.
3. High-Precision Temperature Control (±2.5℃)
The machine is equipped with a high-precision temperature control system, with a temperature tolerance range of ±2.5℃. It can accurately adjust the welding temperature, effectively avoiding material overheating deformation or weak welds caused by insufficient temperature, especially suitable for processing temperature-sensitive PVC/TPU coated fabrics.
4. Pneumatic Pressure Mode for Stable Performance
The machine adopts pneumatic pressure mode with a maximum pressure of 350KGS. The pressure output is stable and uniform, ensuring consistent material stress during large-area welding, resulting in flat and beautiful welds without bubbles or weak welds, with high finished product consistency.
5. High-Sensitivity 5557 Anti-Flash Protection System
A standard high-sensitivity 5557 anti-flash protection system instantly cuts off high-frequency output when abnormal sparking occurs, effectively protecting the welding mold and internal electronic components, reducing production waste and extending the service life of the equipment.
6. Full Non-Standard Customization + ODM/OEM Support
The HR-15KW-AT supports comprehensive non-standard customization, including slide travel, electrode size, temperature range, power configuration, etc., which can be customized according to customer product requirements. ODM and OEM services are also available to adapt to personalized production scenarios in different industries.
Suitable Applications & Compatible Materials
The HR-15KW-AT is designed for high-frequency heat sealing of the following large-area PVC/TPU products:
Tarpaulins, tents, and membrane structure products
Inflatable boats, inflatable tents, flexible tanks and other inflatable products
Advertising banners and large outdoor advertising materials
Medical mattresses, anti-bedsore mattresses and other TPU/PVC products
All other large-area PVC/TPU-based thermoplastic-coated fabrics
Main Technical Specifications
plaintext
Model: HR-15KW-AT
HF Output Power: 15KW
Electron Tube: 8T85RB
HF Frequency: 27.12MHz
Power Supply: AC 380V / 50Hz / 3-Phase (Customizable)
Input Power: 25KVA
Max. Pressure: 350KGS
Press Mode: Pneumatic Press
Max. Electrode Gap: 200mm
Electrode Moving Range: 150mm
Upper Electrode Size: 600*800mm
Lower Electrode Size: 650*900mm
Temperature Range: 30℃ - 200℃ Adjustable (±2.5℃ Precision)
Remarks: Customized, ODM & OEM Accepted; Specifications subject to change without notice for improvement
Frequently Asked Questions
What materials is the HR-15KW-AT suitable for welding?
The HR-15KW-AT is mainly used for large-area welding of PVC, TPU and other thermoplastic-coated fabrics, such as tarpaulins, membrane structures and inflatable products. It is not suitable for non-thermoplastic materials such as metal and glass.
What is the temperature control accuracy of the machine?
The machine is equipped with a high-precision temperature control system with a temperature tolerance range of ±2.5℃, which can accurately control the welding temperature to avoid material deformation or weak welds.
Can the slide travel be customized according to product size?
Yes, we offer comprehensive non-standard customization services, including slide travel, electrode size, power configuration, etc., according to your product size. ODM and OEM services are also available.
What safety features does the machine have?
The machine is standard equipped with a high-sensitivity 5557 anti-flash protection system, overload protection, and emergency stop protection. All our machines are CE-certified and comply with international safety standards.
What after-sales support do you provide?
We provide a 1-year warranty for all our machines, as well as lifetime technical support. Our engineering team can provide remote troubleshooting and on-site installation and training services worldwide. Most inquiries are responded to within 24 hours.
