HR-15KW-AT Auto Sliding Table HF Welding & Embossing Machine | Custom Blister Pack & Inflatable Product Welder

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Aug 19,2026 | Updated: Aug 19,2026

HIPOWER has specialized in industrial HF welding & embossing equipment for over 27 years, delivering customized multi-scene welding solutions for plastic packaging, inflatable products and daily necessities factories worldwide.

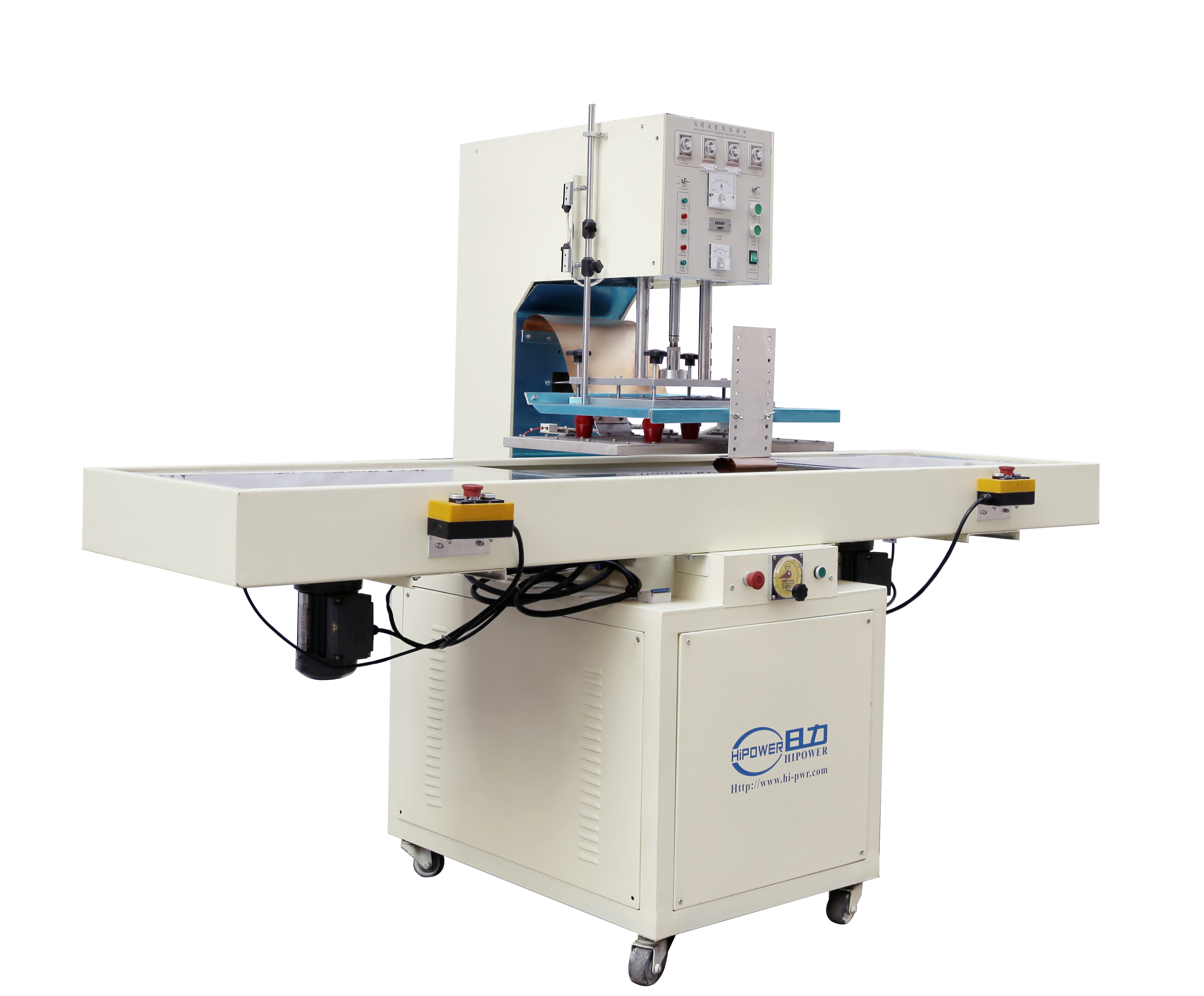

HIPOWER HR-15KW-AT Sliding Table HF Welding Machine: Versatile Solution for Packaging & Inflatable Product Welding & Embossing

Manufacturers in plastic blister packaging, daily goods sealing and PVC inflatable products face common challenges. Single-station HF machines waste much time on loading/unloading with low productivity. Large inflatable products and wide packaging workpieces cannot be welded in one step due to limited standard table size. Poor temperature control causes uneven welding, scorching and whitening, with weak adaptability to materials of different thicknesses. Single press mode cannot meet both thin packaging and thick inflatable product processing, and standard machines can hardly cover multi-category production.

To solve these pain points, DONGGUAN HIPOWER LTD launches HR-15KW-AT automatic sliding table HF welding & embossing machine. It adopts double-station alternate operation, stable high-Q oscillation system and precise temperature control. Optional pneumatic, hydraulic and pneumatic-hydraulic press modes are available. One machine covers blister packaging, daily goods sealing and inflatable product welding & embossing, with full non-standard customization available.

Core Technical Features of the HR-15KW-AT

1. Stable 15KW High-Q Oscillation for Reliable Multi-Material Performance

Equipped with 15KW HF power and premium 8T85RB electron tube running on 27.12MHz industrial frequency, the high-Q oscillation circuit delivers uniform and stable energy output. The energy is optimized for PVC, PETG blister packs, soft plastic bags and inflatable fabrics, creating firm weld seams and clear embossing patterns. It fits a wide range of processing from thin packaging films to thick inflatable fabrics.

2. Double-Station Sliding Table for Higher Productivity

Left and right sliding stations work alternately under preset program. While one station performs welding, the other station allows loading and unloading at the same time, eliminating idle waiting time. Compared with single-station models, productivity is significantly improved with lower labor intensity, suitable for continuous mass production of blister packs and inflatable product orders.

3. Optional Press Modes for Flexible Process Matching

Three press options are available: pneumatic, hydraulic and pneumatic-hydraulic combined. Customers can select the best solution based on material thickness and processing craft. Pneumatic mode offers fast response and high efficiency for thin blister packaging; hydraulic mode delivers sufficient pressure and stable fusion for thick inflatable products and deep embossing. One machine can be configured to adapt to multi-category production.

4. High-Precision Temperature Control with ±2.5℃ Accuracy

Built-in high-precision temperature control system maintains temperature tolerance within ±2.5℃, adjustable from 30℃ to 200℃. It precisely matches heating temperature for plastic sheets and inflatable fabrics of different thicknesses, avoiding scorching from overheating or weak bonding from insufficient temperature, ensuring consistent quality in mass production and reducing reject rates.

5. High-Sensitivity 5557 Anti-Flash Protection for Mould Safety

Standard high-sensitivity 5557 instant anti-spark system cuts HF power within milliseconds when abnormal flash occurs. It effectively protects welding moulds, embossing dies and internal core components, lowering maintenance cost of expensive custom moulds and supporting 24/7 non-stop factory operation.

6. Imported High-Quality Electronic Parts for Durable Operation

Core circuits adopt imported high-quality electronic components with strong anti-interference ability and low failure rate. It runs stably for long hours under complex workshop conditions, reducing downtime and maintenance time to keep production on schedule.

7. Full Customization & Complete ODM/OEM Support

Worktable size, sliding stroke, power rating, press mode and heating system can all be customized. We design extended and widened tables for large inflatable products and add automatic feeding mechanisms for high-volume production. Private-label ODM & OEM service is provided to build exclusive HF welding & embossing production lines based on customer workshop layout and process requirements.

Suitable Applications & Compatible Materials

Blister Packaging Applications

Stationery packaging, electronic product packaging, MP3/MP4/MP5 blister packs, toothbrush packaging, toy packaging, gift packaging, hardware tool packaging, USB drive blister-card sealing.

Inflatable Product Applications

PVC water beds, drifting rafts, children swimming pools, inflatable toys, PVC soft bag forming, plastic welding processing.

Compatible Materials

PVC, PETG, TPU, soft plastic sheets, plastic laminated films and all HF-weldable flexible plastic materials.

Supported Processes

Blister-card sealing, edge welding, pattern embossing, soft bag forming in one integrated process.

Main Technical Specifications

Model: HR-15KW-AT

HF Output Power:15KW (5KW~15KW power customization available)

Electron Tube:8T85RB

HF Frequency:27.12MHz

Power Supply:AC 380V / 50Hz 3-Phase, voltage customizable for export

Input Power:25KVA

Max. Clamp Pressure:350KGS (hydraulic/pneumatic-hydraulic upgrade available)

Press Mode: Standard pneumatic pressure, hydraulic & pneumatic-hydraulic options available

Max. Electrode Gap:200mm

Electrode Moving Range:150mm

Standard Upper Electrode Size:600800mm (size & shape fully customizable)

Standard Lower Electrode Size:650900mm (sliding table size customizable)

Temperature Range:30℃ ~ 200℃ adjustable, ±2.5℃ accuracy

Overall Machine Size: Final dimension subject to official quotation drawing

Remarks: Full machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.

Frequently Asked Questions

Can HR-15KW-AT process large PVC inflatable products like rafts and swimming pools?

Yes. Worktable size can be customized to be wider and longer to fit large inflatable products, enabling one-step full welding without segmented splicing for smoother and firmer seams.

Can we choose hydraulic press? What if we produce both thin packaging and thick inflatables?

Yes, pneumatic, hydraulic and pneumatic-hydraulic press modes are all customizable. By changing moulds and adjusting parameters, one machine can process both thin packaging and thick inflatable products.

Can it do embossing besides welding?

Yes. Simply replace corresponding embossing moulds to complete plastic embossing and patterning. Process parameters can be saved and recalled with one click for fast product changeover.

Can we run only one station? Is it easy to operate?

Yes, the program supports both single and double station modes which can be switched freely via touch screen. Operators can choose modes flexibly according to order volume, suitable for both small-batch sampling and mass production.

What is the warranty policy for customized machines?

1-year full machine warranty plus lifelong remote technical support. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.
