Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD Published: Sep 25,2026 | Updated: Sep 25,2026 HIPOWER has specialized in blister packaging HF machinery for over 27 years, delivering integrated coding-sealing-picking customized packaging solutions for daily goods, hardware, cosmetics and food factories worldwide.
Manufacturers producing APET, PETG, GAG eco blister packs for toothbrushes, tools, stationery and toys face common challenges. Separate processes of coding, sealing and unloading lead to high labor cost across multiple machines. Inaccurate card feeding causes misaligned seals and offset printing with high reject rates. Eco films have high melting points and are hard to weld, causing whitening, scorching and weak seals on standard machines. Single-station machines waste time on loading/unloading with low productivity. Frequent product changeovers require lengthy tuning, and standard machines can hardly meet diverse packaging demands.

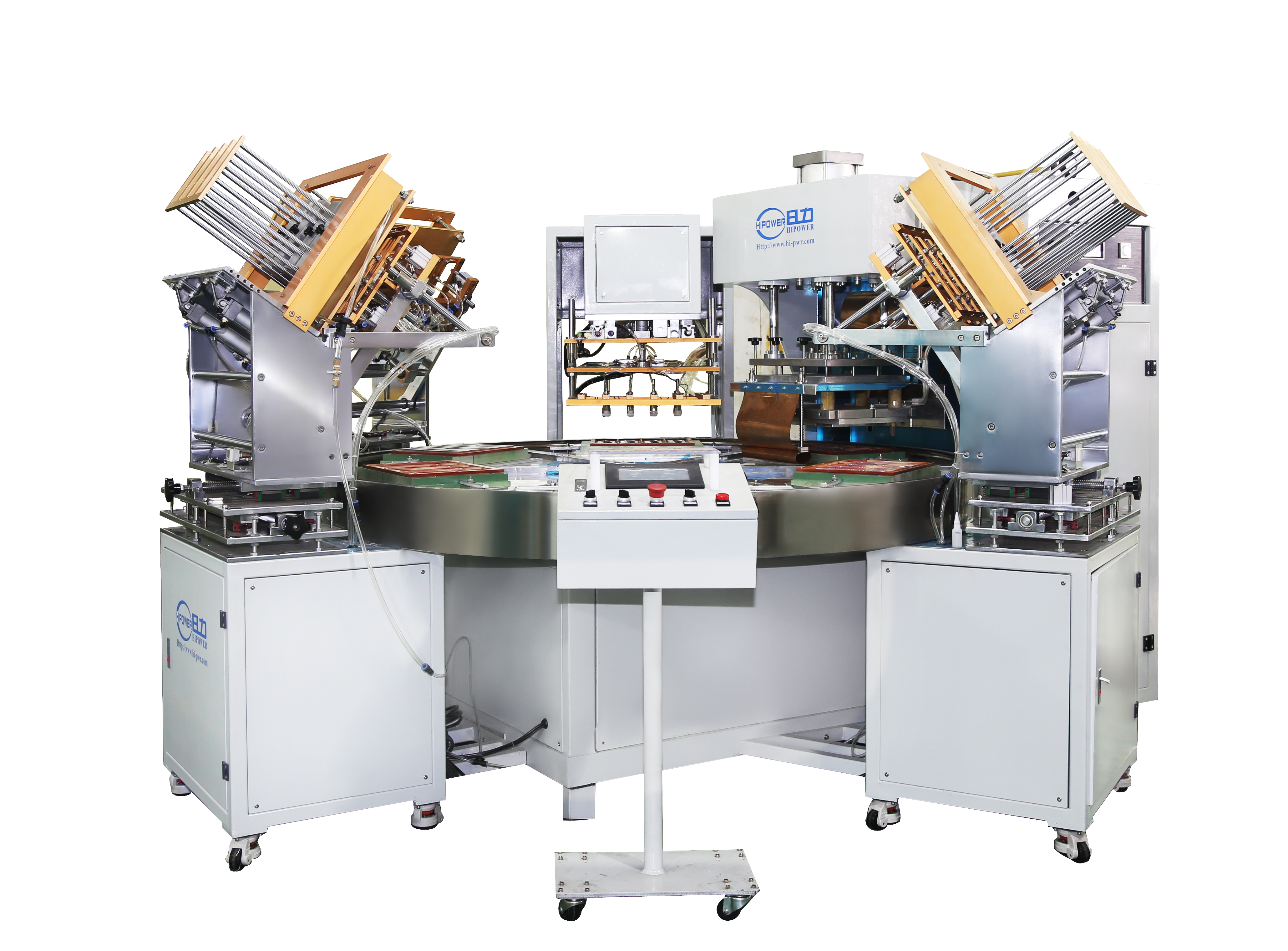

To solve these pain points, DONGGUAN HIPOWER LTD launches HR-15KW-6AC multi-function automatic date stamping + blister + paper card welding machine. It adopts a 6-station automatic rotary table, integrating automatic date coding, HF blister-card sealing and finished product pick-up in one machine. Equipped with servo bullet magazine card feeder, ±10μm precision positioning, high-Q oscillation system and 557 anti-flash protection, with PLC touch screen recipe storage. It is specially designed for eco blister-card packaging, supporting both mass production and flexible multi-SKU changeover, with full non-standard customization available.
The automatic rotating table comes with 6 independent stations, integrating three processes: automatic date stamping, blister-card heat sealing and finished product pickup. Stations work alternately with staggered timing. Operators only load materials on one single station, all other steps are automatic. Single operator manages the whole line, doubling productivity versus single-station equipment for bulk toothbrush, hardware and accessory orders.
The paper card magazine adopts bullet compartment structure driven by servo motor for smooth steady feeding. High-precision divider controls overall positioning tolerance within ±10μm. Sealing and coding positions stay consistent on every finished pack, eliminating reject goods caused by offset printing and misaligned edges and cutting sorting labor cost.
Equipped with 15KW HF power and premium 8T85RB electron tube running on 27.12MHz industrial frequency, the high-Q oscillation circuit delivers stable balanced power. Energy output is optimized for hard-to-weld APET/PETG/GAG eco films, ensuring tight seals without whitening, burning or mould adhesion. Standard high-sensitivity 557 instant anti-flash system cuts HF power within milliseconds, effectively protecting sealing moulds and reducing maintenance cost for long continuous production.
PLC+HMI touch screen manages all parameters including welding time, coding setting, rotary speed and temperature with visualized adjustment. All recipes can be saved and recalled directly for quick product changeover, ideal for flexible production of multiple SKUs. Temperature adjustable between 30℃~200℃ to fit films of different thicknesses.
Station quantity, electrode dimension, rotary table size, coding style and pickup mechanism can all be customized freely. Power range optional from 8KW to 15KW, private label ODM & OEM service available. We can extend table size, adjust station layout or add automatic card feeding according to workshop layout and blister dimension to build exclusive packaging lines.
With integrated 3-in-1 technology and high-precision positioning, HR-15KW-6AC widely fits four categories and dozens of blister-card packaging products:
Suitable for blister packaging of toothbrushes, dental floss, combs, beauty tools, facial brushes, nail clippers and cosmetic accessories. Clear coding, neat sealing and transparent blisters without whitening meet appearance and sealing requirements of daily and personal care products.
Processes utility knives, scissors, screwdrivers, wrenches, small hardware parts and tool kits. High-frequency welding delivers strong seals that resist cracking, suitable for heavy and angular hardware parts to prevent blister damage during transportation.
Fits pens, erasers, pencil sharpeners, stationery sets, small toys and puzzle accessories. Precise positioning, uniform coding positions and neat finished appearance meet high-quality packaging requirements of stationery and toy brands.
Applied to blister packs of candies, snacks, gift charms, medals and keychains. Eco material welding produces no odor with good sealing performance, meeting hygiene and sealing requirements of food-contact packaging.
Model: HR-15KW-6AC HF Output Power:15KW (8KW~15KW power customization available) Electron Tube:8T85RB HF Frequency:27.12MHz Power Supply:AC 380V / 50Hz 3-Phase, voltage customizable by region Input Power:25KVA Max. Clamp Pressure:1000KGS Press Mode: Standard pneumatic pressure, hydraulic upgrade available via customization Max. Electrode Gap:200mm Electrode Moving Range:150mm Standard Upper & Lower Electrode Size:350*500mm (size & shape fully customizable) Adjustable Heating Temperature:30℃~200℃ Overall Machine Size: Final dimension subject to official quotation drawing Remarks: Full machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.
Yes. 15KW power is optimized for eco PETG material, paired with anti-flash protection to deliver firm clean seals without scorching or discoloration, compliant with food-safe packaging standards.
Station number can be customized freely to 4/6 stations; stamping, sealing and pickup workflow can be rearranged to fit factory workshop layout.
Yes, coding assembly and welding moulds are fully customizable. We adjust printing position, date font and format to match all irregular blister designs.
The touch screen stores multiple sets of process recipes. Operators call saved parameters directly without repeated tuning of power and temperature for fast changeover.
1-year full machine warranty plus lifelong remote technical support. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.
Full series rotary packing machines (8KW/10KW/12KW/15KW) support free material sample testing. Our engineers design tailored equipment based on blister size, material and required productivity. ▶ Request Free Quotation ▶ Free Film Sample Test ▶ Download Machine Catalogue Contact Info: Email: hipower06@hi-pwr.com WhatsApp:+86-135-9014-6525 Tel:+86-0769-8600-3636 ext.812
Founded in 1999 in Dongguan China, HIPOWER specializes in automated HF blister packaging machinery with 27 years of R&D experience. Our product lineup covers rotary multi-station packing machines, automatic cylinder tube machines, synchronous weld-cut machines, membrane welders and automotive interior HF machines. All units hold CE certification and export to more than 60 countries globally. The HR-15KW-6AC series features integrated non-standard customization, combining coding, sealing and auto unloading in one machine. It solves major packaging pain points including high labor cost, low precision and high reject rate for eco blister factories, helping manufacturers achieve low-labor automated production.
