HR-15KW-6AC 6-Station Rotary Blister Card Packaging Machine | APET PETG Eco Pack Date Stamping Sealing HF Equipment

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Jul 25,2026 | Updated: Jul 25,2026

HIPOWER has manufactured plastic blister packaging machinery for over 27 years, delivering customized integrated HF production lines for daily goods, hardware and cosmetic factories across more than 60 countries worldwide.

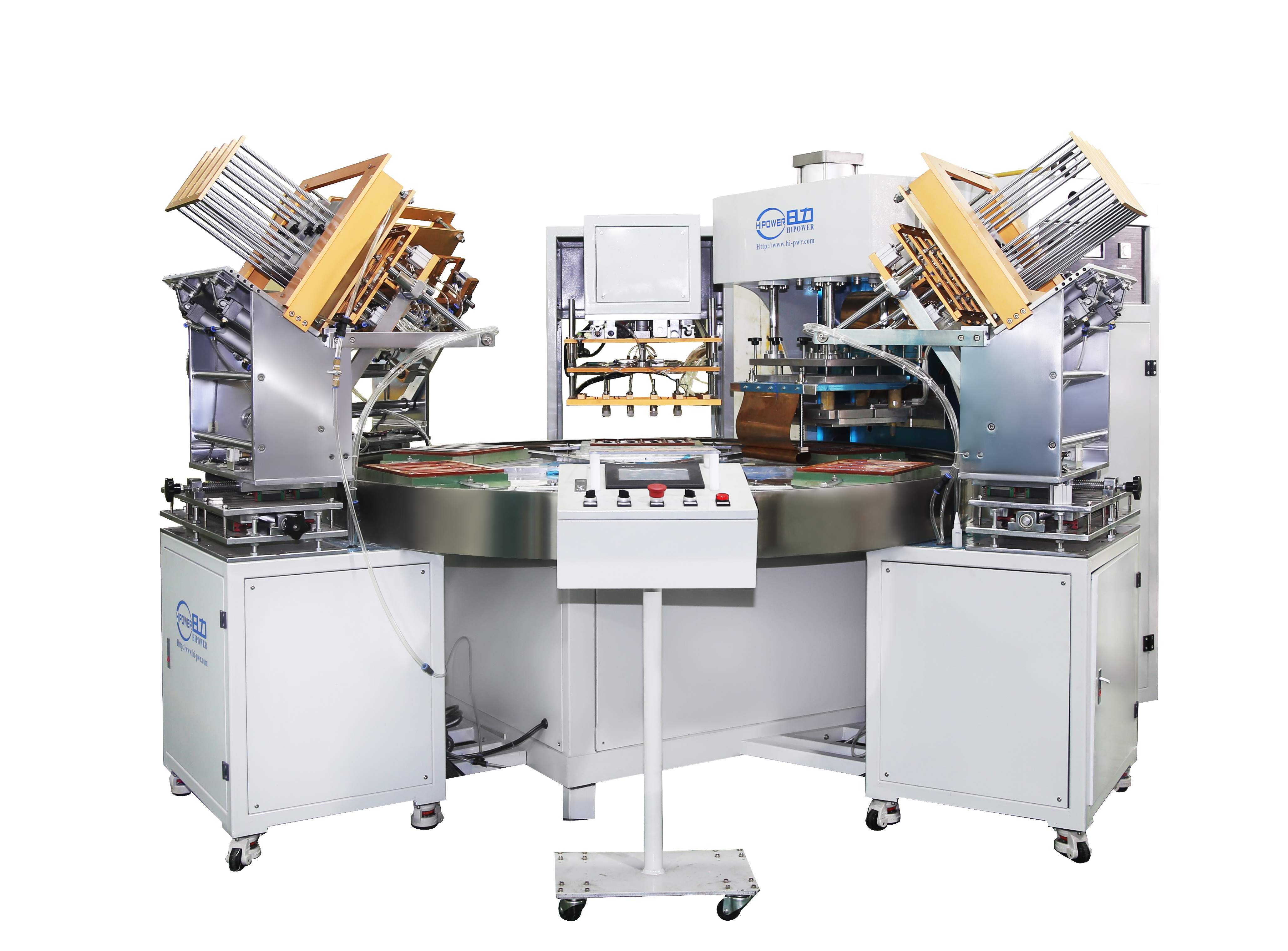

HIPOWER HR-15KW-6AC 6-Station Rotary Packing Machine: All-In-One Automated Forming Solution for Eco Blister & Paper Card Packaging

Factories producing APET, PETG, GAG eco transparent blister packs for toothbrushes, cutlery and hardware face multiple production troubles: separate machines for coding, sealing and picking lead to extra labor and positioning errors; eco plastic is easy to burn or whiten during welding; low-power machines cannot seal thick eco sheets steadily. To solve these issues, DONGGUAN HIPOWER LTD launches HR-15KW-6AC six-station rotary HF packaging machine. It integrates date stamping, high-frequency sealing and automatic material picking into one machine. Cyclic 6-station operation supports mass production and stable welding of thick eco materials, with full non-standard customization available.

Core Technical Features of the HR-15KW-6AC

1. Stable 15KW HF Output Optimized for Thick Eco Plastic Sheets

Equipped with 15KW HF generator and premium 8T85RB electron tube running on 27.12MHz industrial frequency. High-Q oscillation circuit provides consistent power specially tuned for APET/PETG/GAG hard eco plastic. Thick transparent blisters gain tight sealed edges without whitening, burning or mould adhesion, meeting long-term mass production requirements of food-grade and cosmetic eco packaging.

2. 6-Station Rotary Cycle, 3 Processes Fully Automated

The rotating table comes with six independent stations to realize automatic date stamping, blister-card heat sealing and finished product pickup. All processes run alternately with staggered timing. Operators only load materials on one single station, all other steps are automatic. Single operator manages the whole line, doubling productivity versus single-station equipment for bulk toothbrush and hardware orders.

3. Servo Bullet Feeding, ±10μm Precision Positioning for High Yield

Paper card feeding adopts bullet magazine structure driven by servo motor for smooth steady feeding. High-precision divider controls overall positioning tolerance within ±10μm. Sealing and date coding stay consistent on every finished pack, eliminating reject goods caused by offset printing and misaligned edges and cutting sorting labor cost.

4. 5557 Anti-Flash Protection Prevents Mould Damage for Eco Material

Built-in high-sensitivity 5557 instant anti-spark system cuts HF power within milliseconds when flash occurs (common during eco PETG/APET processing). It reliably protects customized sealing moulds, oscillation tubes and internal circuits, reducing mould replacement cost and supporting 24-hour non-stop factory operation.

5. PLC Touch Screen Intelligent Control with Storable Recipes

PLC+HMI touch screen manages all parameters including welding time, coding setting, rotary speed and temperature with visualized adjustment. All recipes can be saved and recalled directly for quick product changeover, ideal for flexible production of multiple SKUs. Temperature adjustable between 30℃~200℃ to fit films of different thickness.

6. Full Customization & Complete ODM/OEM Support

Station quantity, electrode dimension, rotary table size, coding style and pickup mechanism can all be customized freely. Power range optional from 8KW to 15KW, private label ODM & OEM service available. We can extend table size, adjust station layout or add automatic card feeding according to workshop layout and blister dimension to build exclusive packaging lines.

Suitable Applications & Compatible Raw Materials

Application Products

Daily necessities packaging: toothbrushes, dental floss, beauty tools, combs and ornaments blister-card packs

Hardware packaging: utility knives, scissors, hand tools and small metal accessories sealed blister packs

Compatible Materials

APET, PETG, GAG eco transparent plastic sheets and HF-weldable PVC rolls

Supported Crafts

Edge sealing, date batch coding, automatic finished product discharging

Main Technical Specifications

Model: HR-15KW-6AC

HF Output Power:15KW

Electron Tube:8T85RB

HF Frequency:27.12MHz

Power Supply:AC 380V / 50Hz 3-Phase, voltage customizable by region

Input Power:25KVA

Max. Clamp Pressure:1000KGS

Press Mode:Pneumatic pressure (hydraulic upgrade available via customization)

Max. Electrode Gap:200mm

Electrode Moving Range:150mm

Standard Upper & Lower Electrode Size:300*500mm (fully customizable in size & shape)

Adjustable Heating Temperature:30℃~200℃

Overall Machine Size: Final dimension subject to official quotation drawing

Remarks: Full customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.

Frequently Asked Questions

Can HR-15KW-6AC process food-grade PETG eco toothbrush blisters?

Yes. 15KW power matches eco PETG perfectly, paired with anti-flash protection to guarantee sealed edges without scorching or discoloration, compliant with food-safe packaging standards.

Can we change to 4 stations instead of 6? Are processes rearrangeable?

Station number can be customized freely to 4/6 stations; stamping, sealing and pickup workflow can be rearranged to fit factory workshop layout.

Can we customize date code format and position on blister packs?

Yes, coding assembly and welding moulds are fully customizable. We adjust printing position, date font and format to match all irregular blister designs.

Is parameter adjustment time-consuming when switching multiple products?

The touch screen stores multiple sets of process recipes. Operators call saved parameters directly without repeated tuning of power and temperature for fast changeover.

What is the warranty policy for customized machines?

1-year full machine warranty plus lifetime remote technical service. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.

Contact HIPOWER for Custom Packaging Solution

Full series rotary packing machines (8KW/10KW/12KW/15KW) support free material sample testing. Our engineers design tailored equipment based on blister size, material and required productivity.
