HR-15KW-4AC Rotary HF Welding Cutting Machine for Thick APET Eco Blister Packaging

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Jul 11,2026 | Updated: Jul 11,2026

HIPOWER has specialized in high-frequency welding equipment R&D and manufacturing for over 27 years, supplying integrated weld-cut solutions for eco-packaging factories in more than 60 countries worldwide.

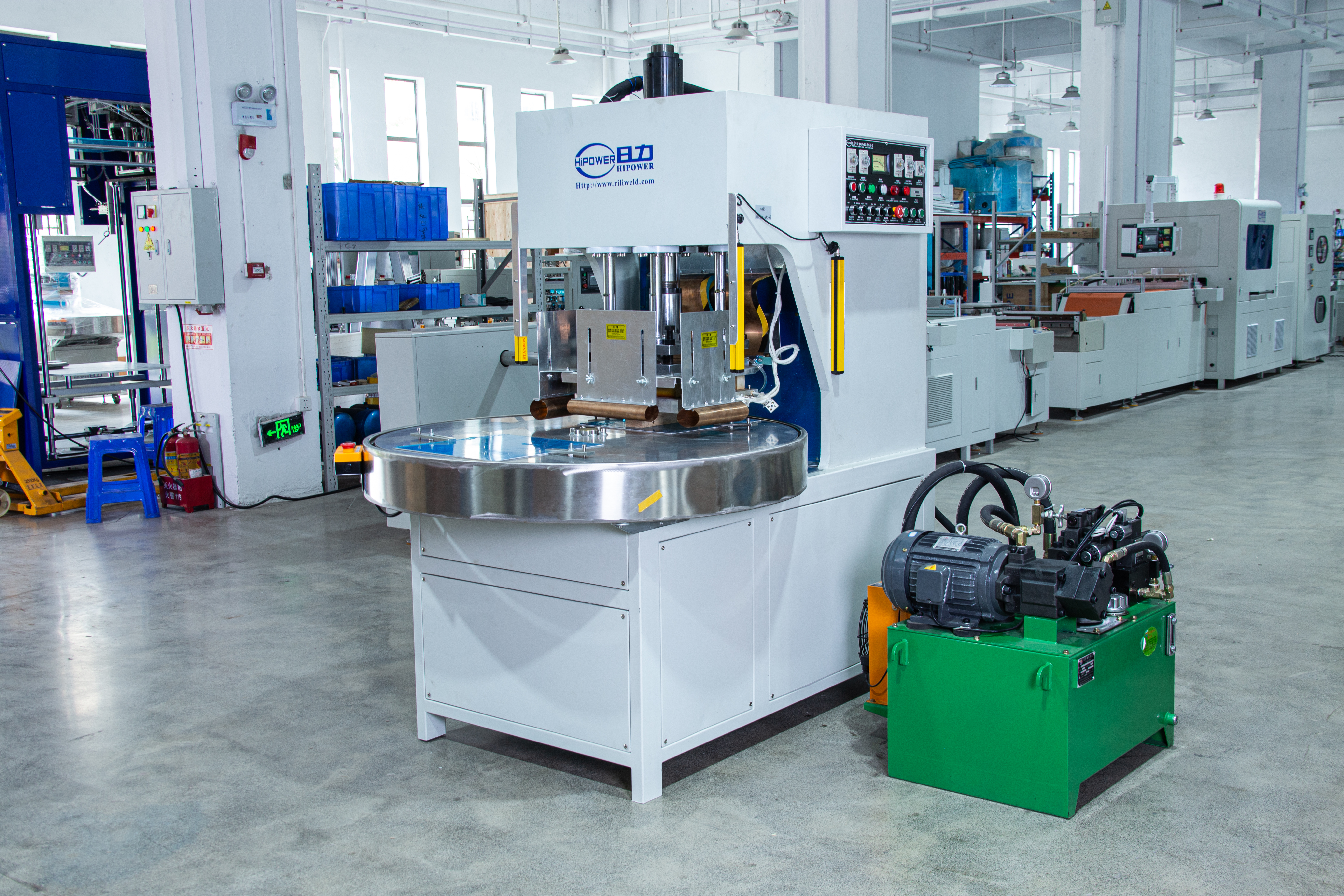

HIPOWER HR-15KW-4AC Rotary HF Welder: One-Stop High Power Production Solution for Eco-Friendly Blister Packaging

Manufacturers of APET, PETG, GAG eco clamshell, toothbrush blister and cosmetic packaging face obvious limitations of low-power rotary machines: insufficient HF energy fails to fully fuse thick eco sheets, causing weak sealing and rough cutting edges; single station leads to low output and long waiting time, inaccurate positioning creates inconsistent finished sizes. To solve these industry pain points, DONGGUAN HIPOWER LTD launches HR-15KW-4AC automatic rotary HF cutting machine. With stable 15KW power and 3~6 cyclic stations, it completes welding and cutting simultaneously, becoming core automatic production equipment for mass thick eco blister orders.

Core Technical Features of the HR-15KW-4AC

1. Stable 15KW HF Output with 8T85RB Electron Tube

Equipped with 15KW high frequency generator and premium 8T85RB tube at standard 27.12MHz frequency. High-Q oscillation circuit delivers steady abundant power to deeply fuse thick APET/PETG sheets, tight seal without whitening, burning or mould sticking, perfectly solve hard fusion issue of thick eco plastic materials, suitable for heavy clamshell and double plastic box processing.

2. 3~6 Customizable Rotary Stations for Higher Single Operator Output

Standard 4-station rotary table, optional 3/5/6 stations with program preset & mechanical interlock for cyclic alternate operation. Feeding, heat sealing, sync cutting and unloading run separately at different stations, only one worker handles full workflow, output increased over 40% compared with low-power 4AC models, support non-stop mass packaging production.

3. Precise Indexing with ±10μm Position Tolerance

High precision divider controls positioning error within ±10μm, uniform cutting & sealing dimension for bulk blister products, eliminate reject goods with misaligned edge and uneven size, greatly save labor sorting cost and raise finished yield rate.

4. Optional Synchronous Cutting Function, Customizable 1T~80T Cutting Pressure

Optional one-step weld & cut function, cutting pressure adjustable from 1T to 80T; two pressure modes: pneumatic-oil or full hydraulic, max clamping pressure up to 30T. Finished edge smooth and burr-free without secondary trimming after one single operation.

5. High-Sensitivity 5557 Anti-Flash Protection System

Standard instant spark protection instantly cuts HF output once abnormal flash occurs during eco sheet processing, fully protect precision blister mould and internal electronic components, reduce mould maintenance and material waste, stable for 24/7 daily factory production.

6. Full Non-Standard Customization + ODM/OEM Support

Station quantity, electrode dimension, rotary travel, pressure and temperature range are fully customizable, private label ODM & OEM service available. Machine structure can be adjusted for irregular and oversized blister boxes to meet personalized packaging production demands.

Suitable Applications & Compatible Materials

Eco blister packaging: APET/PETG/GAG transparent clamshell, toothbrush & dental floss cosmetic blister packs

Daily commodity packaging: toy clamshell, hardware blister tray, electronic inner tray, stationery plastic boxes

Plastic packaging processing: PVC soft plastic boxes, transparent folding boxes, all thermoplastic rolls requiring simultaneous weld and cut

Main Technical Specifications

plaintext

Model: HR-15KW-4AC

HF Output Power:15KW

Electron Tube:8T85RB

HF Frequency:27.12MHz

Power Supply:AC 380V/50Hz/3-Phase(Customizable)

Input Power:25KVA

Max. Clamp Pressure:30T(Cutting Pressure:1T~80T Optional Custom)

Press Mode:Pneumatic+Oil-Pressure(Hydraulic Optional)

Max. Electrode Gap:200mm

Electrode Moving Range:150mm

Upper Electrode Size:600*800mm

Lower Electrode Size:600*800mm

Rotary Table Size:650*850mm

Temperature Range:30℃~200℃ Adjustable

Remarks:Customized,ODM&OEM Accepted;Specifications subject to change without notice for improvement

Frequently Asked Questions

Can HR-15KW-4AC weld thick APET eco blister?

Yes, 15KW high power oscillation circuit provides sufficient energy for deep fusion on thick APET/PETG sheets, no cold weld, burning or mould sticking, support one-step synchronous cutting.

Can I customize 3 or 6 working stations?

3~6 stations are fully customizable, adjust rotary station quantity based on factory capacity and labor allocation.

Does the machine finish welding and cutting in one cycle?

Optional synchronous cutting module enables complete sealing & edge trimming on the same station, burr-free finished goods without extra manual trimming.

What’s the after-sales warranty policy?

1-year full machine warranty plus lifetime technical support, remote commissioning & on-site installation training available, all technical inquiries replied within 24 hours.

Contact HIPOWER for Custom Welding Solution

Standard 15KW 4-station rotary cutting machines and customized multi-station production lines are available, our professional engineers design tailored equipment solutions for eco blister packaging factories.

▶ Request Free Quote ▶ Free Sample Test ▶ Download Catalogue

Contact Info:

Email:hipower06@hi-pwr.com

WhatsApp:+86-135-9014-6525

Tel:0769  8600  3636

About DONGGUAN HIPOWER LTD

Founded in 1999 in Dongguan China, HIPOWER is a leading HF welding equipment manufacturer specializing in automatic rotary cutting machines and slide table HF welders, all models CE certified and exported to over 60 countries worldwide. The high-power 4AC rotary series is optimized for thick eco blister, solving insufficient fusion and low productivity issues of low-power machines, helping packaging factories boost automatic output and finished product qualification rate.
