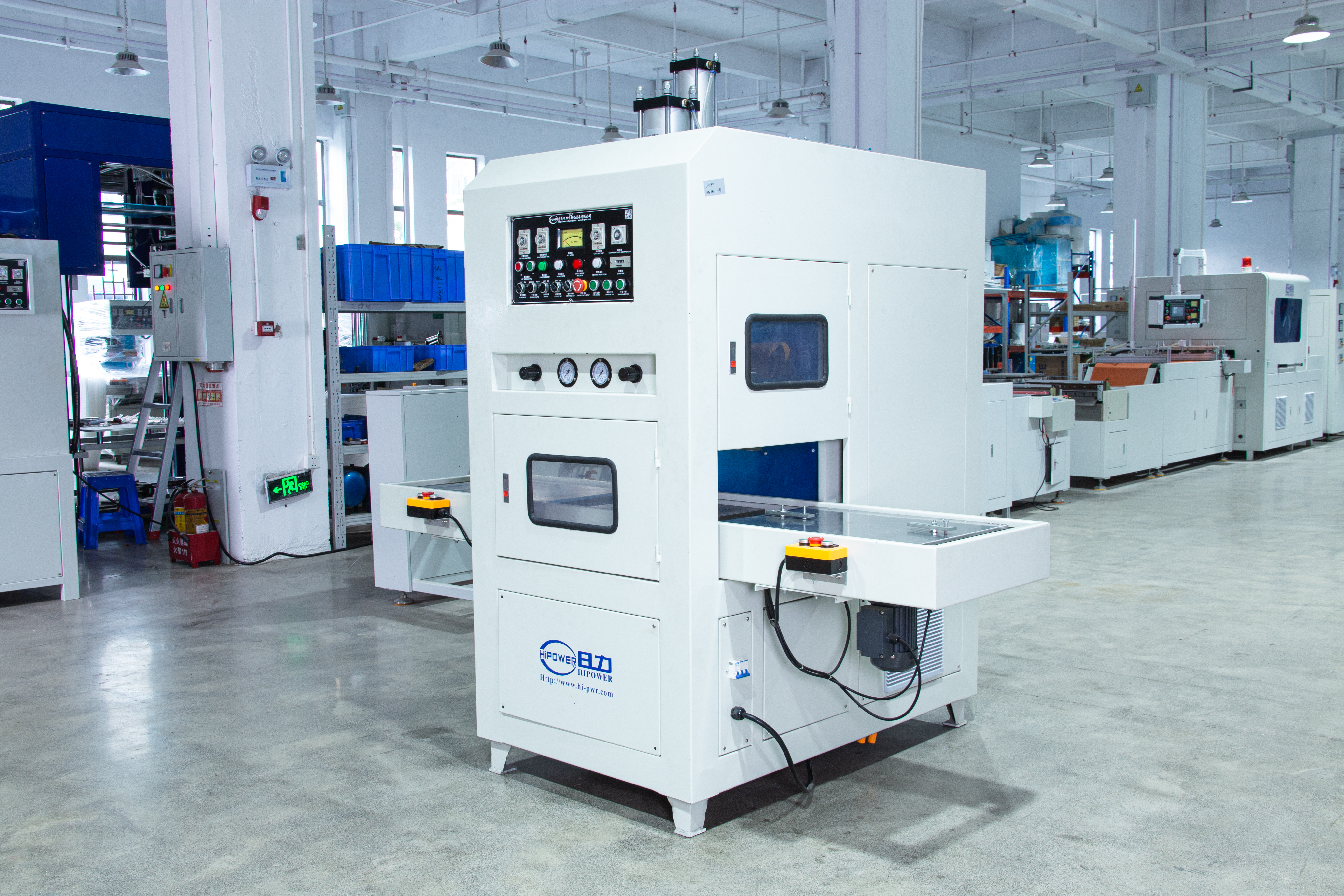

HIPOWER HR-12KWT Automatic Slide HF Welder: Efficient Welding & Cutting Solution for Eco-Friendly Blister Packaging
For industries such as APET, PETG, and GAG eco-friendly blister packaging, toothbrush packaging, and plastic box making, achieving welding and cutting in one step while ensuring smooth, burr-free edges and no product burning or deformation is a core industry pain point. Traditional equipment requires two separate processes, resulting in low efficiency, large positioning errors, and difficulty in precision processing of eco-friendly materials, leading to issues such as mold sticking, flash, and weak welds that affect product qualification rates.
To solve these industry pain points, DONGGUAN HIPOWER LTD has launched the HR-12KWT automatic slide high frequency welding and cutting machine, a purpose-built solution for eco-friendly blister packaging, toothbrush packaging, and plastic box making, equipped with an automatic slide, high-precision temperature control, and synchronous cutting function. It completes welding and cutting in one step, greatly improving production efficiency and product quality.
Core Technical Features of the HR-12KWT
1. 12KW Stable Output for Eco-Friendly Blister Materials
The HR-12KWT is equipped with a 12KW high-frequency oscillator and a premium E3130 electron tube, operating at the global industry-standard 27.12MHz frequency. Strong and stable power output easily meets the continuous welding needs of eco-friendly materials such as APET, PETG, and GAG. The weld strength is high with no burning or yellowing, perfectly adapting to the production requirements of eco-friendly blister packaging and toothbrush packaging.
2. Automatic Slide + Dual-Station Alternating Operation for Doubled Efficiency
The machine adopts an automatic slide structure with pre-set programs and mechanical interlocks, enabling dual-station alternating operation with automatic slide movement. It greatly reduces manual operations, doubling efficiency compared to single-station equipment. Operators can load materials at one station while completing welding and cutting at the other without waiting, realizing assembly line operation, especially suitable for mass production of blister packaging products.
3. Weld & Cut in One Step with 1T-80T Customizable Cutting Pressure
The machine supports synchronous cutting technology, completing welding and cutting in the same station in one step without secondary processing. The cutting pressure is customizable from 1T to 80T, with stable and reliable output and a firm and strong structure. The cut edges are smooth and burr-free, requiring no additional trimming and forming directly, greatly reducing labor costs and scrap rates.
4. High-Precision Temperature Control (±2.5℃)
The machine is equipped with a high-precision temperature control system with a temperature tolerance range of ±2.5℃, adjustable from 30℃ to 200℃. It can accurately control the welding temperature, effectively avoiding material overheating deformation or weak welds caused by insufficient temperature, ensuring the welding effect of blister packaging and plastic boxes, and improving product yield.
5. Multi-Mode Pressure for Different Product Processes
The machine supports two optional pressure modes: pneumatic-oil pressure and pure hydraulic pressure, with a maximum pressure of up to 20T. It can be flexibly adjusted according to material and thickness, adapting to various processes such as soft rubber welding, thick material welding, and synchronous cutting. One machine can cover the production of multiple products.
6. High-Sensitivity 5557 Anti-Flash Protection System
A standard high-sensitivity 5557 anti-flash protection system instantly cuts off high-frequency output when abnormal sparking occurs, effectively protecting the welding mold and internal electronic components, reducing production waste, extending the service life of the equipment, and lowering mold maintenance costs, adapting to 24/7 continuous production in workshops.
7. Full Non-Standard Customization + ODM/OEM Support
The HR-12KWT supports comprehensive non-standard customization, including electrode size, slide travel, cutting pressure, temperature range, etc., which can be customized according to customer product requirements. ODM and OEM services are also available to adapt to personalized production scenarios in different industries such as eco-friendly blister packaging, toothbrush packaging, and plastic box making.
Suitable Applications & Compatible Materials
The HR-12KWT is designed for high-frequency welding and synchronous cutting of the following products:
Eco-friendly blister packaging: APET, PETG, GAG blister packaging, square plastic box packaging
Daily necessities packaging: toothbrush packaging, cosmetic packaging, stationery packaging, toy packaging, gift packaging
Plastic box making: eco-friendly film plastic boxes, transparent folding boxes, PVC/PP plastic box welding and cutting
Other welding and synchronous cutting processes of TPU/PVC/PU materials
Main Technical Specifications
plaintext
Model: HR-12KWT
HF Output Power: 12KW
Electron Tube: E3130
HF Frequency: 27.12MHz
Power Supply: AC 380V / 50Hz / 3-Phase (Customizable)
Input Power: 20KVA
Max. Pressure: 20T (Cutting Pressure 1T-80T Customizable)
Press Mode: Pneumatic+Oil Pressure (Pure Hydraulic Optional)
Max. Electrode Gap: 200mm
Electrode Moving Range: 150mm
Upper Electrode Size: 500*700mm
Lower Electrode Size: 500*700mm
Sliding Table Size: 550*750mm
Temperature Range: 30℃ - 200℃ Adjustable (±2.5℃ Precision)
Remarks: Customized, ODM & OEM Accepted; Specifications subject to change without notice for improvement
Frequently Asked Questions
Is the HR-12KWT suitable for welding APET/PETG eco-friendly blister materials?
Absolutely. The machine is designed specifically for eco-friendly materials such as APET, PETG, and GAG, with high welding strength and no burning or yellowing, effectively preventing material deformation, while supporting synchronous cutting for one-step forming.
Can the machine complete welding and cutting in one step?
Yes, the machine supports synchronous cutting technology, completing welding and cutting in the same station in one step with smooth, burr-free edges, requiring no secondary processing and greatly improving production efficiency.
Can electrodes be customized according to blister packaging sizes?
Yes, we offer comprehensive non-standard customization services, including electrode size, slide travel, cutting pressure, etc., according to your product sizes. ODM and OEM services are also available.
What is the temperature control accuracy of the machine?
The machine is equipped with a high-precision temperature control system with a temperature tolerance range of ±2.5℃, which can accurately control the welding temperature to avoid material deformation or weak welds, ensuring the welding effect of blister packaging.
What after-sales support do you provide?
We provide a 1-year warranty for all our machines, as well as lifetime technical support. Our engineering team can provide remote troubleshooting and on-site installation and training services worldwide. Most inquiries are responded to within 24 hours.
Contact HIPOWER for a Custom Welding Solution
Whether you need a standard HR-12KWT model or a fully customized high-frequency welding production line for your eco-friendly blister packaging and toothbrush packaging, our experienced engineering team is ready to help you find the perfect solution for your production needs.
