HR-10KWT Automatic Slide HF Cutter | Welding Machine for Waterproof Bags, Cooler Bags & Bike Bags

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: May 30, 2026 | Updated: May 30, 2026

With over 27 years of experience, HIPOWER devotes to R&D and production of high-frequency welding equipment, delivering customized solutions for clients across more than 60 countries.

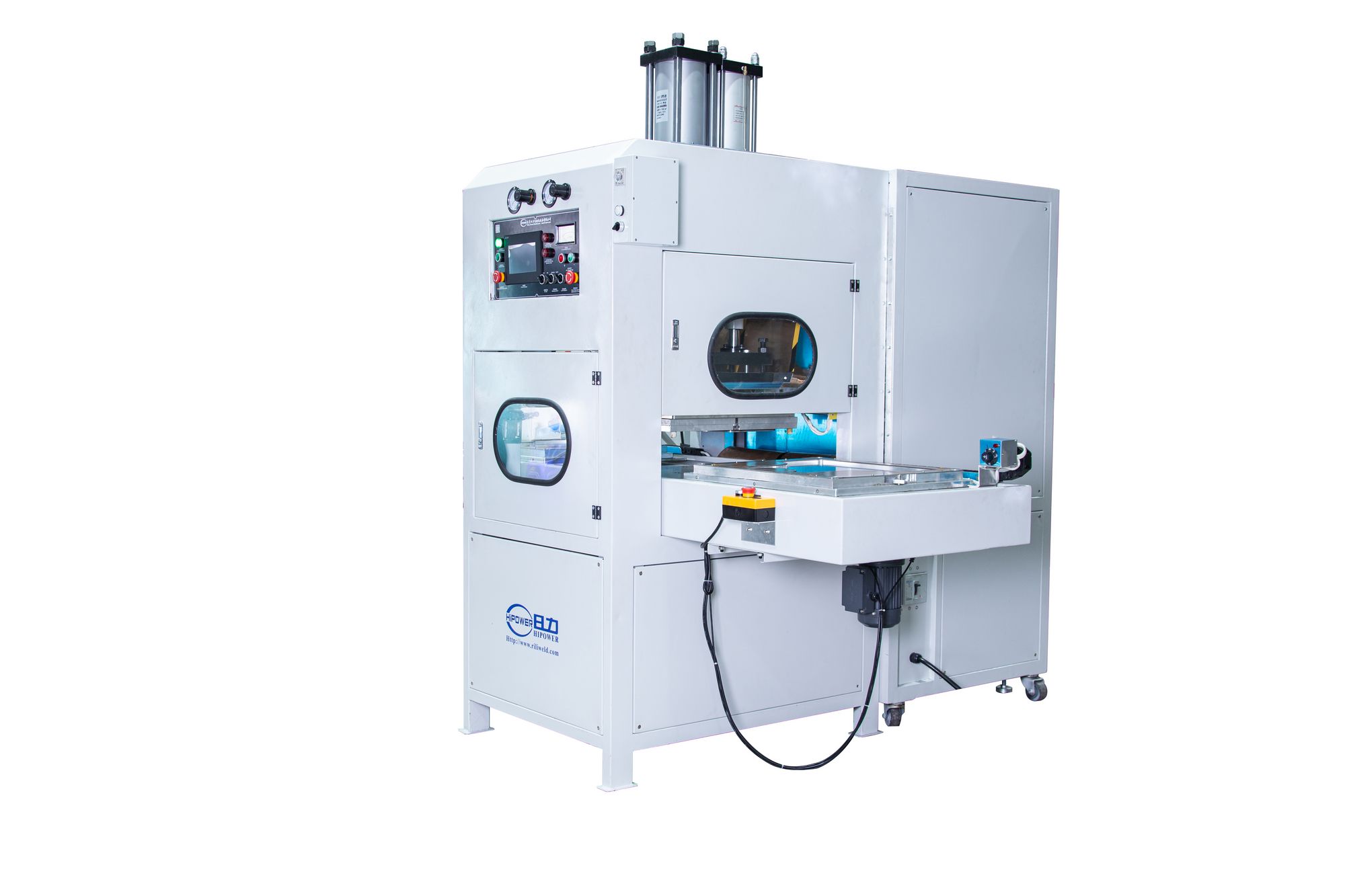

HR-10KWT Automatic Slide HF Cutter: Ideal Solution for Outdoor Waterproof Bags

The market demand for custom waterproof bags, waterproof backpacks, cooler bags, thermal bags, waterproof storage bags, half-rack bike bags and regular bike bags keeps growing. Traditional processing equipment requires separate working procedures, leading to low efficiency, positioning errors, weld leakage and fabric deformation, which fail to meet strict requirements for waterproof performance and appearance.

To solve these industry challenges, DONGGUAN HIPOWER LTD launches the HR-10KWT Automatic Slide High Frequency Welding & Cutting Machine. Specially designed for outdoor waterproof bags, it integrates automatic slide, precise temperature control and synchronous cutting functions to realize one-stop processing, greatly improving productivity and product quality.

Core Advantages

1. 10KW Stable Power for Waterproof Fabrics

Equipped with 10KW high-frequency oscillator and premium E3069 electron tube, the machine works at standard 27.12MHz frequency. It delivers steady power for continuous processing of TPU, PVC and composite waterproof fabrics. The welding seam features high strength, excellent waterproof and tear resistance, fully meeting requirements of various bags.

2. Dual-Station Automatic Slide for Higher Output

The automatic slide structure with mechanical interlock enables alternating operation of two stations. Operators can load materials and process products at the same time without waiting. The output is more than doubled compared with single-station machines, perfect for mass production.

3. One-Step Welding & Cutting

Built-in synchronous cutting function combines two procedures into one. The cutting pressure is adjustable from 1T to 80T. The rigid body ensures smooth, burr-free cutting edges. It eliminates secondary trimming work, cuts labor cost and reduces reject rate.

4. Precise Temperature Control within ±2.5℃

The temperature ranges from 30℃ to 200℃ with an error of only ±2.5℃. Users can adjust temperature according to fabric material and thickness to avoid deformation and weak welds, fully guaranteeing waterproof performance.

5. Dual Pressure Modes for Versatile Processes

Two pressure options are available: pneumatic-hydraulic and full hydraulic pressure, with a maximum pressure of 15T. It adapts to soft rubber welding, thick material welding and synchronous cutting, covering all common processes for outdoor bags.

6. 5557 Anti-Flash System for Safe & Durable Operation

The high-sensitivity 5557 anti-flash system cuts off HF output instantly once abnormal spark occurs, protecting molds and internal components. The machine supports 24-hour non-stop operation, with long service life and low maintenance cost.

7. Full Customization & ODM/OEM Service

We provide full customization on electrode size, slide travel, cutting pressure and temperature range. ODM and OEM services are also available to match different sizes and styles of outdoor bags.

Applicable Products & Materials

Waterproof series: Custom waterproof bags, waterproof backpacks, waterproof storage bags

Thermal & cooling series: Cooler bags, thermal bags, TPU thermal storage products

Cycling series: Half-rack bike bags, bike bags and cycling accessories bags

Compatible materials: TPU, PVC, PU and other thermoplastic waterproof fabrics

Technical Specifications

plaintext

Model: HR-10KWT

HF Output Power: 10KW

Electron Tube: E3069

HF Frequency: 27.12MHz

Power Supply: AC 380V / 50Hz / 3-Phase (Customizable)

Input Power: 18KVA

Max. Pressure: 15T (Cutting Pressure: 1T-80T Adjustable)

Press Mode: Pneumatic+Oil Pressure (Pure Hydraulic Optional)

Max. Electrode Gap: 200mm

Electrode Moving Range: 150mm

Upper Electrode Size: 400*600mm

Lower Electrode Size: 400*600mm

Sliding Table Size: 450*650mm

Temperature Range: 30℃ - 200℃ Adjustable (±2.5℃ Precision)

Remarks: Customized, ODM & OEM Accepted; Specifications are subject to change for product improvement

FAQ

1. Is it suitable for fabrics of waterproof bags and cooler bags?

Yes. Optimized for TPU, PVC and composite waterproof fabrics, it creates tight and leak-proof welds. One-step cutting ensures finished products with good appearance.

2. Can it finish welding and cutting in one process?

Absolutely. The synchronous cutting function combines two processes, leaving smooth edges without burrs, which saves extra trimming work.

3. Can we customize molds and parameters based on product sizes?

Yes. We offer comprehensive customization on electrodes, slide travel and pressure. ODM & OEM cooperation is also welcome.

4. How about the temperature control accuracy?

The temperature control error is within ±2.5℃. Accurate temperature regulation prevents fabric deformation and weak welds, keeping stable waterproof performance.

5. What after-sales services do you provide?

We offer 1-year warranty and lifelong technical support. Our team provides global remote troubleshooting, on-site installation and training, with responses within 24 hours.

Contact Us

Whether you need standard machines or customized production lines for waterproof bags, cooler bags and bike bags, our professional engineering team will offer tailored solutions.

▶ Request Free Quote

▶ Professional Technical Support

▶ Download Product Catalogue

Contact Info

Email: hipower9@hi-pwr.com

WhatsApp: +86-135-9014-6525

Tel: +86-769-86003636 ext. 812

About Us

Established in 1999, DONGGUAN HIPOWER LTD is a professional manufacturer of high-frequency welding equipment. Our product line includes high frequency heat sealers, ultrasonic welders and synchronous cutters, exported to over 60 countries worldwide.

All products are CE certified and manufactured under strict quality standards. We keep delivering reliable and cost-effective machines to help clients improve efficiency and reduce costs.
