HR-10KW-TA Dual Pedal HF Welder | For Stationery, Auto Interior & Inflatable Goods

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Jun 03,2026 | Updated: Jun 03,2026

HIPOWER has specialized in high-frequency welding equipment R&D and manufacturing for over 27 years, providing customized solutions for customers in more than 60 countries worldwide.

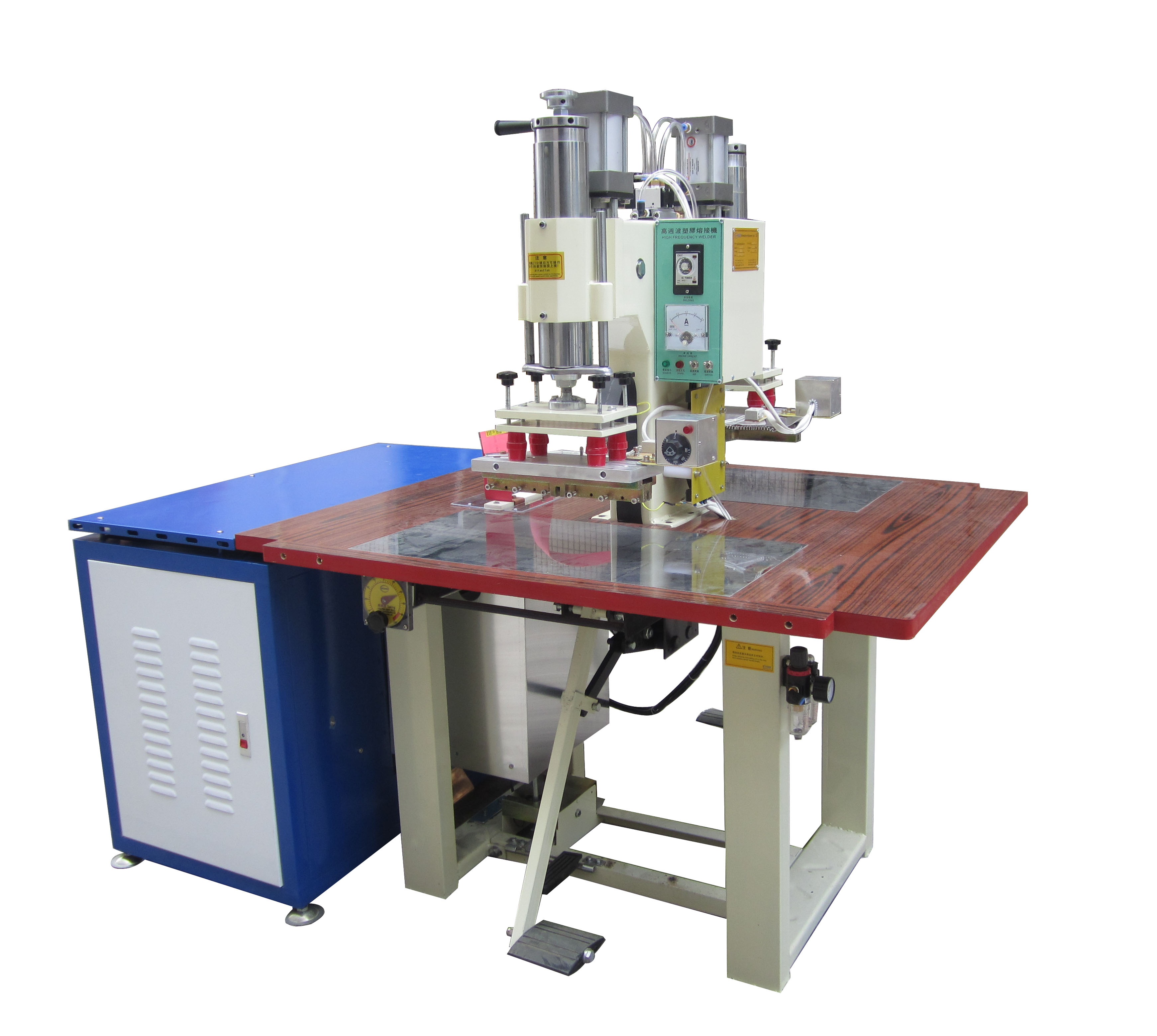

HIPOWER HR-10KW-TA Dual Pedal HF Welder: Universal Welding Machine for Small PVC & TPU Products

Faced with challenges of small-batch diversified production, high labor cost and low productivity of single-head machine for stationery, auto interior, non-slip mat and mini inflatable goods manufacturers, DONGGUAN HIPOWER LTD launches HR-10KW-TA dual pedal HF welder. With classic dual-station foot-driven design, it balances easy operation and high efficiency, becoming the mainstream equipment for medium & small processing factories.

Core Technical Features of the HR-10KW-TA

1. Stable 10KW Output with E3069 Electron Tube

Equipped with 10KW HF oscillator and premium E3069 tube at standard 27.12MHz frequency. Stable HF output perfectly welds PVC, TPU, PU thermoplastic materials with tight, waterproof and tearproof seams for thin stationery and thick automotive fabrics.

2. Dual Pedal Drive & Alternating Dual-Station Operation

Mechanical interlock plus preset program enables two working heads operate alternately. Operators load raw material on one station while welding on another, nearly doubling output compared with single-pedal machine; foot control avoids hand compression for easy operation.

3. High-Precision Temp Control within ±2.5℃

Adjustable temperature range:30℃~200℃ with ±2.5℃ tolerance, effectively prevent overburning, deformation and cold weld on thin materials and improve finished product rate.

4. Multiple Pressure Options Available for Sync Cutting

Optional pneumatic/hydraulic/combined pressure; standard clamping pressure 350KGS, cutting pressure customizable from 350KGS to 5T, available for independent heat sealing or one-step weld & cut forming.

5. High-Sensitivity 5557 Anti-Flash Protection System

Standard 5557 spark protection instantly cuts off HF output during abnormal spark, protecting mould and inner electronic parts to lower maintenance cost for long-time daily production.

6. Full Non-Standard Customization + ODM/OEM Support

Custom electrode size, head stroke and pressure parameters, OEM private label service available for irregular products.

Suitable Applications & Compatible Materials

Stationery gifts: photo albums, card holders, ID pouches, mouse pads, notebook covers, PVC gift bags

Auto interior parts: steering wheel covers, car cushions, PVC floor mats, trunk non-slip mats

Non-slip mats: door mats, bath mats, logo printed advertising carpets, PVC gaskets

Inflatable items: life vests, drifting floats, kids inflatable toys, TPU water storage bags

Others: PVC trademarks, plastic hang tags & small soft rubber accessories

Main Technical Specifications

plaintext

Model: HR-10KW-TA

HF Output Power:10KW

Electron Tube:E3069

HF Frequency:27.12MHz

Power Supply:AC 380V/50Hz/3-Phase(Customizable)

Input Power:18KVA

Max. Clamp Pressure:350KGS(Cutting Pressure:350KGS~5T Optional)

Press Mode:Foot Pedal(Optional Pneumatic/Hydraulic/Combined)

Max. Electrode Gap:200mm

Electrode Moving Range:60mm

Upper Electrode Size:200*300mm

Lower Electrode Size:350*700mm

Temperature Range:30℃-200℃ Adjustable(±2.5℃ Precision)

Productivity:3000~4000PCS/8h

Machine Size:L1720×W1200×H1700mm

Remarks:Customized,ODM&OEM Accepted;Specifications subject to change without notice for improvement

Frequently Asked Questions

What materials can HR-10KW-TA process?

All thermoplastic PVC,TPU,PU; not applicable for metal,glass and non-melt plastic.

Does it support synchronous cutting?

Yes,custom cutting pressure from 350KGS to 5T for one-step weld&cut without extra trimming.

Can we customize electrode dimension?

Yes,we customize electrode,table size and working stroke based on your product.

After-sales service policy?

1-year full warranty plus lifetime technical support,remote guidance and on-site installation as required,reply within 24 hours.
