HR-10KW-F1 Deep Throat HF Welder for Tarpaulin & Membrane Structures

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Jun 10, 2026 | Updated: Jun 10, 2026

HIPOWER has specialized in high-frequency welding equipment R&D and manufacturing for over 27 years, providing customized solutions for customers in more than 60 countries worldwide.

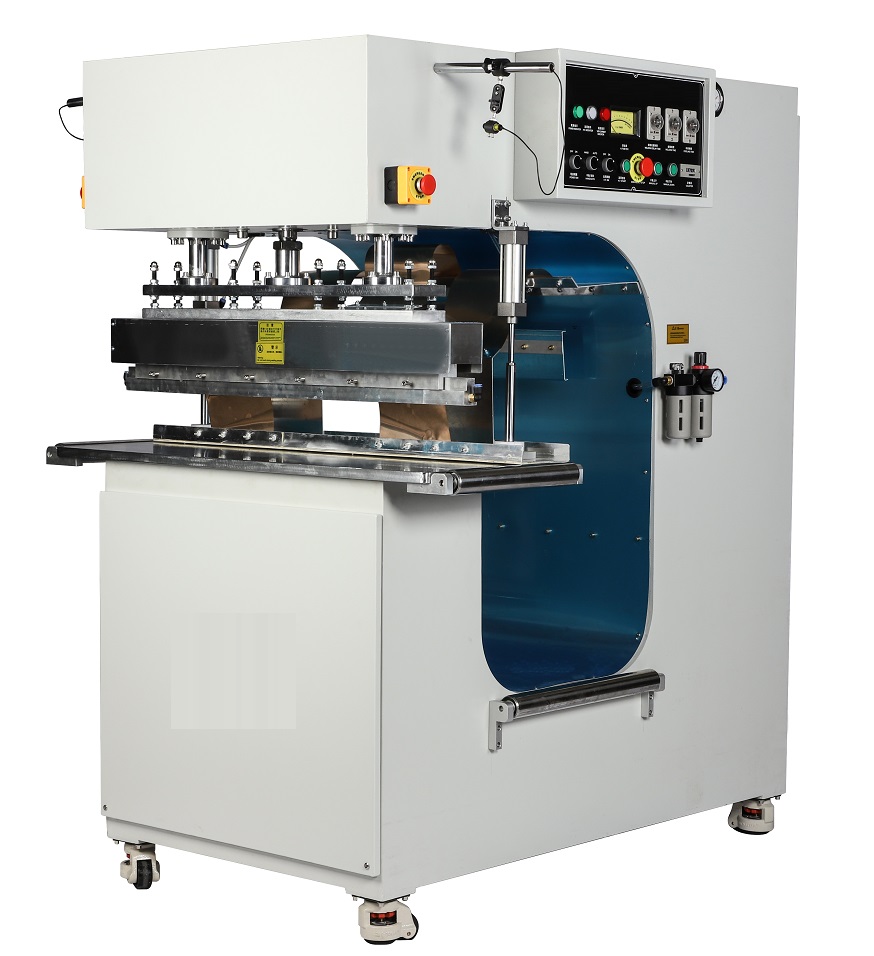

HIPOWER HR-10KW-F1 Deep Throat HF Welder: Efficient Continuous Welding Solution for Tarpaulins & Membranes

For manufacturers of outdoor tarpaulins, tents, membrane structures, inflatable boats, and truck covers, traditional equipment is limited by worktable space, making it difficult to feed large-format materials smoothly and perform long-distance continuous welding, leading to weld misalignment, wrinkles, and material deformation. To solve this industry pain point, DONGGUAN HIPOWER LTD has launched the HR-10KW-F1 deep throat high frequency heat sealer, purpose-built for large-format tarpaulin and membrane materials with a 750mm deep throat design, suitable for continuous welding operations.

Core Technical Features of the HR-10KW-F1

1. Stable 10KW Output with E3069 Electron Tube

The HR-10KW-F1 is equipped with a 10KW high-frequency oscillator and a premium E3069 electron tube, operating at the global industry-standard 27.12MHz frequency. The European-standard square oscillatory box design delivers stronger and more stable power output, providing consistent and reliable welding energy for PVC tarpaulins and membrane materials even under 24/7 continuous operation. The weld strength is close to the base material itself, with excellent waterproof and tear resistance.

2. 750mm Deep Throat Design for Large-Format Materials

The machine features a 750mm deep throat structure with large free space behind the bin and dual-side rollers, enabling smooth feeding of large-format materials such as tarpaulins and canvas. No need for section cutting, directly performing long-distance continuous welding, greatly improving production efficiency and avoiding splicing marks caused by section welding.

3. High-Sensitivity 5557 Anti-Flash + Laser Positioning

A standard high-sensitivity 5557 anti-flash protection system instantly cuts off high-frequency output when abnormal sparking occurs, effectively protecting the welding mold and internal electronic components. It also has a built-in laser light positioning device to assist precise alignment, avoiding material deviation and ensuring every weld is uniform and straight.

4. Dual-Side Rollers for Smooth Feeding

Both the worktable and the bottom of the bin are equipped with dual-side rollers, reducing resistance when feeding large-format tarpaulins and canvas, lowering manual pulling intensity, avoiding material pulling deformation, and ensuring uniform feed speed and consistent weld width.

5. Air Intake Filter + Safety Grounding Platen

The machine adopts an air intake filtering system to protect internal electronic components from dust, extending the service life of the equipment. The ground-press platen is positioned behind the welding mold, completely eliminating the risk of hand injuries to operators.

6. Full Non-Standard Customization + ODM/OEM Support

The HR-10KW-F1 supports comprehensive non-standard customization, including electrode size, pressure configuration, and power range according to the thickness and width of tarpaulins and membrane structures. ODM and OEM services are also available to adapt to personalized production scenarios in different industries.

Suitable Applications & Compatible Materials

The HR-10KW-F1 is designed for high-frequency heat sealing and continuous welding of the following products:

Outdoor tarpaulins/tents: PVC tarpaulins, camping tents, canopies, carport fabrics, truck covers, agricultural canvas

Membrane structures: tension membranes, landscape membrane buildings, space membranes, cable membranes, inflatable membrane structures

Inflatable products: inflatable boats, inflatable kayaks, flexible tanks, gas storage bags, inflatable tents

Advertising materials: large-format advertising banners, print cloth, outdoor advertising films

Others: PVC/TPU-based thermoplastic coated fabrics, waterproof membranes, industrial soft film materials

Main Technical Specifications

plaintext

Model: HR-10KW-F1

HF Output Power: 10KW

Electron Tube: E3069

HF Frequency: 27.12MHz

Power Supply: AC 380V / 50Hz / 3-Phase (Customizable)

Input Power: 18KVA

Max. Pressure: 1000KGS

Max. Electrode Gap: 150mm

Electrode Moving Range: 100mm

Upper Electrode Size: 50*50*900mm

Lower Electrode Size: 450*1050mm

Laser Light: Included

Rollers on Table: Both Sides Included

Rollers at Bottom: Both Sides Included

Free Space Behind: 750mm

Packing Size: L1800×W1300×H2050mm

Optional Features: Auto-Tuning System, Custom Electrodes

Remarks: Customized, ODM & OEM Accepted; Specifications subject to change without notice for improvement

Frequently Asked Questions

Can the HR-10KW-F1 weld large-format tarpaulin materials?

Yes, the 750mm deep throat + dual-side roller design enables smooth feeding and long-distance continuous welding of tarpaulins and canvas without section cutting.

Does the machine support auto-tuning function?

Yes, optional automatic high-frequency compensation system adapts to different thicknesses and materials, automatically adjusting the output frequency to ensure stable welding.

Can electrodes be customized according to product size?

Yes, we offer comprehensive non-standard customization services, including electrode size and power configuration according to your tarpaulin and membrane product sizes. ODM and OEM services are also available.

What safety features does the machine have?

The machine is standard equipped with a high-sensitivity 5557 anti-flash protection system, overload protection, and emergency stop protection. The ground-press platen is rear-mounted to avoid hand injuries. All products are CE-certified.

What after-sales support do you provide?

We provide a 1-year warranty and lifetime technical support. Our engineering team can provide remote troubleshooting and on-site installation and training services worldwide. Most inquiries are responded to within 24 hours.
