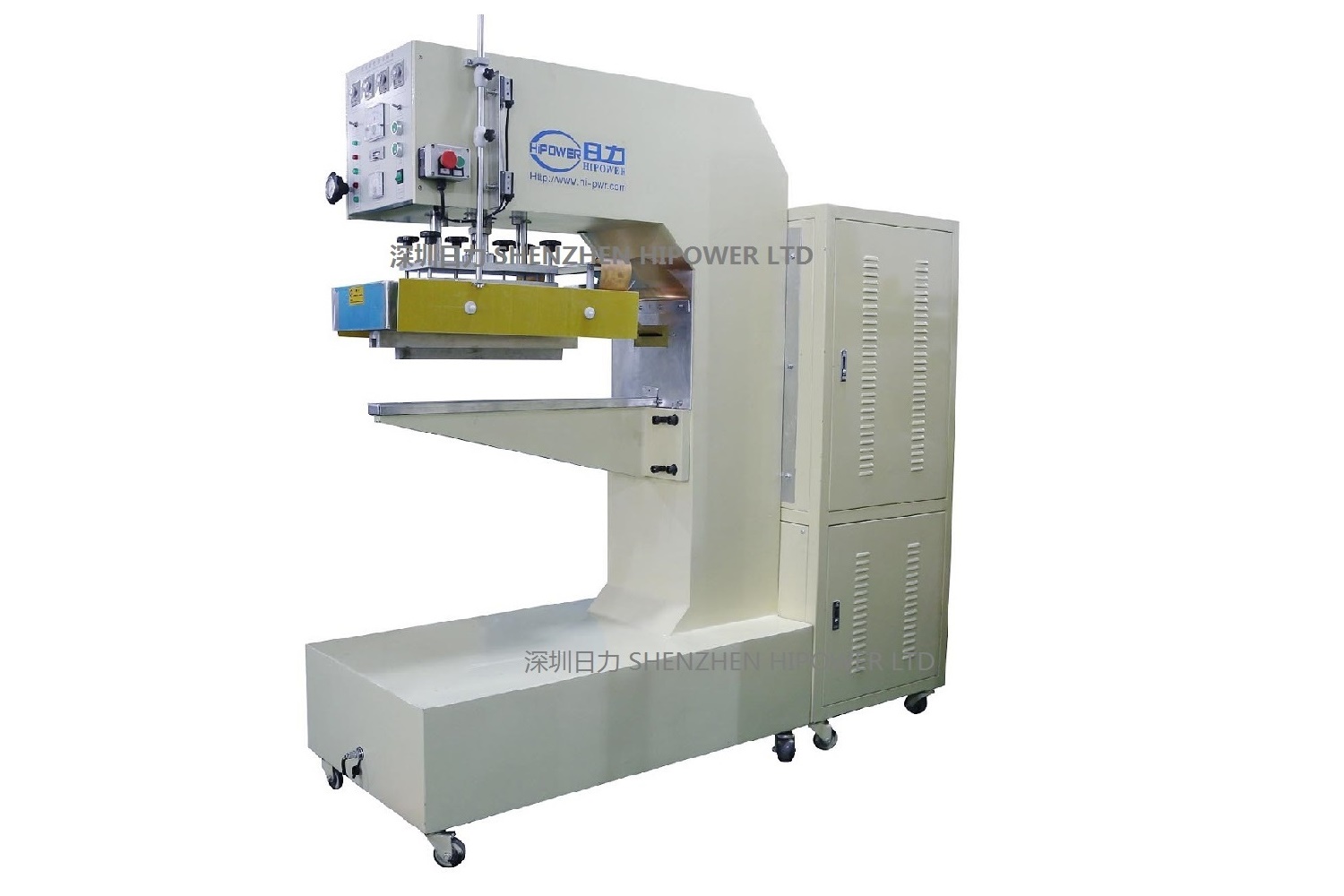

HIPOWER HR-10KW-E HF Welder: Specialized Welding Solution for Round Tube PVC/TPU Products
For manufacturers of round tube and cylindrical PVC/TPU products, uniform and stable circumferential welding is key to ensuring product sealing and durability. Traditional flat high-frequency welders often struggle to achieve even circular fusion, leading to uneven seams, cold joints, and leakage issues that compromise finished product quality.
To solve this industry pain point, DONGGUAN HIPOWER LTD has launched the HR-10KW-E high-frequency welding machine, a purpose-built solution optimized for welding cylindrical and long-tube PVC/TPU products. In this article, we will introduce its core technical features, complete technical specifications, application scenarios, and customization options to help you choose the right welding equipment for your production line.
Core Technical Features of the HR-10KW-E HF Welding Machine
1. 10KW Stable Output with E3069 Electron Tube
The HR-10KW-E is equipped with a 10KW high-frequency oscillator and a premium E3069 electron tube, operating at the global industry-standard 27.12MHz frequency. This configuration ensures consistent and stable power output even during continuous production, providing uniform heat distribution for cylindrical products.
For buyers, this means even heat distribution across the entire circumferential weld, eliminating hot spots and cold welds, ensuring consistent sealing for every cylindrical product.
2. European-Standard Square High-Frequency Oscillatory Box
The machine adopts a European-standard square high-frequency oscillatory box, which delivers stronger output power and lower energy loss compared to traditional circular oscillators. Its robust structure ensures long-term reliability with minimal maintenance requirements.
This design significantly improves welding strength, making the weld seam nearly as strong as the base material itself, providing excellent waterproofing and tear resistance for all finished products.
3. High-Sensitivity 5557 Anti-Spark Protection System
A standard high-sensitivity 5557 anti-spark protection system instantly cuts off high-frequency output within milliseconds when abnormal sparking occurs. This effectively protects both the welding mold and internal electronic components from damage.
For manufacturers, this reduces production waste, minimizes equipment downtime, and lowers overall operating costs.
4. Laser Light Position Guidance System
The machine comes with a built-in laser light position guidance system, which projects a clear alignment line onto the worktable. This helps operators accurately position materials before welding, ensuring consistent seam placement every time.
This feature improves welding precision by up to 30% and reduces the learning curve for new operators, making it easy to achieve professional results with minimal training.
5. Full Non-Standard Customization + ODM/OEM Support
We understand that every production line has unique requirements. The HR-10KW-E supports comprehensive non-standard customization, including custom lower electrode shapes, sizes, and configurations tailored to your specific cylindrical product specifications. ODM and OEM services are also available for private label manufacturing.
This flexibility allows the machine to adapt to a wide range of cylindrical products and production processes, maximizing your investment value.
6. Safety & Operator-Friendly Design
Safety is our top priority. The ground-press platen is positioned behind the welding mold, completely eliminating the risk of hand injuries to operators during operation. An input air-filtering system protects internal electronic parts from dust and contaminants, extending the service life of the equipment.
The worktable is designed for easy loading and unloading of cylindrical materials, improving overall operational efficiency and reducing operator fatigue.
Suitable Applications & Compatible Materials
The HR-10KW-E is designed for high-frequency heat sealing of the following cylindrical/long-tube PVC/TPU products:
Welding of PVC/TPU cylinders and long tubes
Soft film ceilings and circular membrane structure products
Inflatable cylinders and tubular inflatable products
Advertising banner cylinder splicing
All other PVC/TPU-based cylindrical/long-tube thermoplastic-coated fabrics
Frequently Asked Questions
What materials can the HR-10KW-E process?
The HR-10KW-E is primarily designed for welding cylindrical/long-tube PVC, TPU, and other thermoplastic-coated fabrics. It is not suitable for welding metal, glass, or non-thermoplastic materials.
What is the maximum thickness of material it can weld?
The machine can weld materials with a thickness ranging from 0.2mm to 1.5mm. For thicker materials, we can customize the power output and pressure settings to meet your specific requirements.
Can the machine be customized for our cylinder product sizes?
Yes, we offer full non-standard customization services. We can customize the electrode shape, size, worktable configuration, power output, and other features to match your unique product specifications (e.g., cylinder diameter and length). ODM and OEM services are also available.
What safety features does the machine have?
The machine is equipped with a rear-mounted ground-press platen to prevent hand injuries, a high-sensitivity 5557 anti-spark protection system, and overload protection. All our machines are CE-certified and comply with international safety standards.
What after-sales support do you provide?
We provide a 1-year warranty for all our machines, as well as lifetime technical support. Our engineering team can provide remote troubleshooting and on-site installation and training services worldwide. Most inquiries are responded to within 24 hours.
