Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD Published: Oct 01,2026 | Updated: Oct 01,2026 HIPOWER has specialized in custom HF welding equipment for over 27 years, delivering customized long-tube / cylinder plastic welding solutions for membrane structure, plastic tube, flexible storage and inflatable product industries worldwide.
Manufacturers producing PVC round tubes, soft film cylinders, industrial hoses and plastic ducts face common challenges with standard flat-table HF machines. Flat worktables cannot fit curved cylinder surfaces, leading to poor contact, missed welds, cold joints and peeling. Fixed-size electrodes cannot match cylinders of different diameters and lengths. Long seam welding suffers from difficult positioning, low efficiency and unstable quality. Custom shaped tubes lack dedicated machines, and standard equipment has poor adaptability with limited modification options.

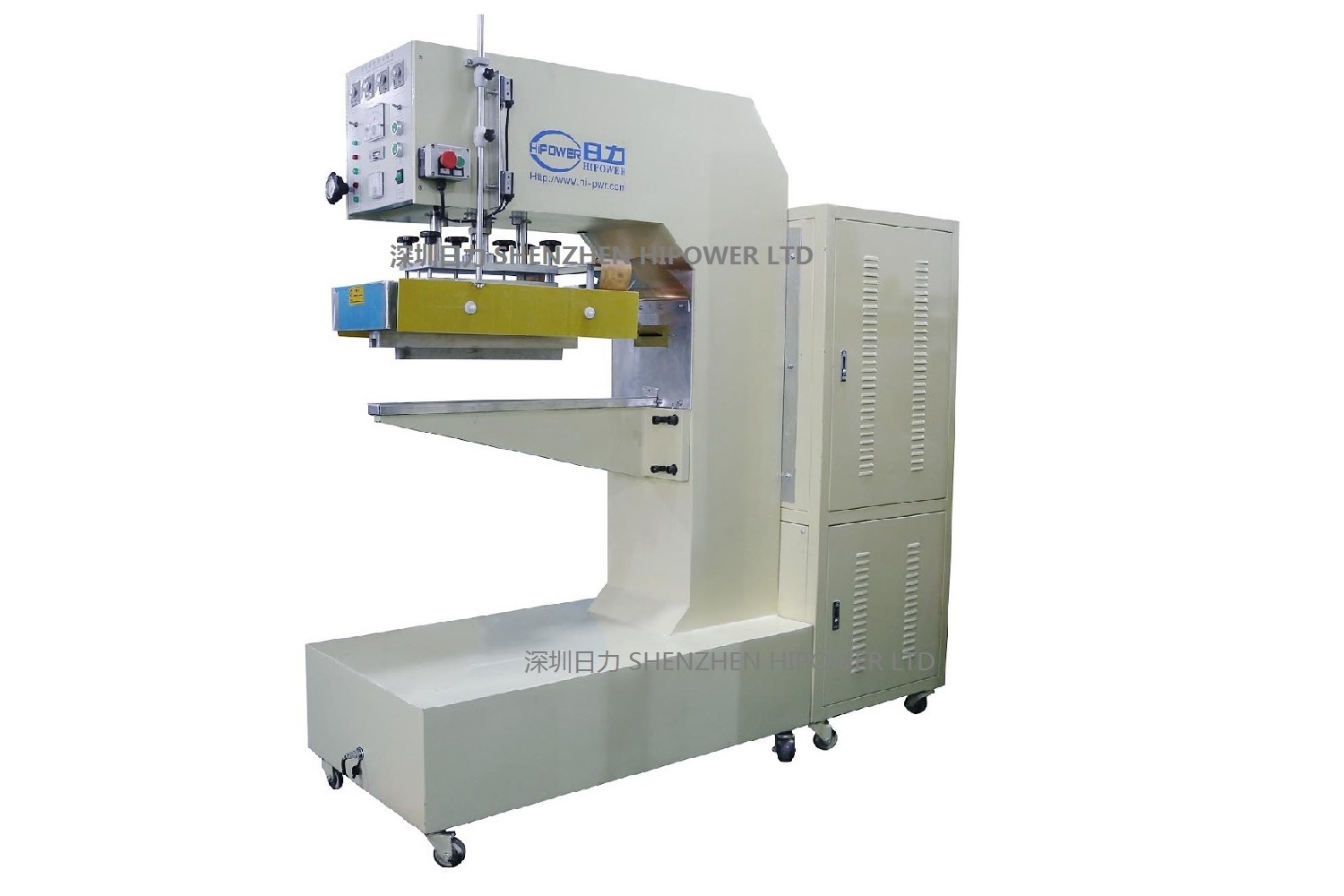

To solve these pain points, DONGGUAN HIPOWER LTD launches HR-10KW-E custom PVC membrane HF welding machine (special for round tube products). As part of HIPOWER's full custom HF product line, its lower electrode and worktable are fully customizable to match product shapes. Equipped with European standard square oscillation cabinet and high-sensitivity anti-flash protection, it solves welding difficulties for various long, cylindrical and curved plastic workpieces. It also handles flat membrane welding, with full non-standard customization available.
Equipped with 10KW HF power and premium E3069 electron tube running on 27.12MHz industrial frequency, with European standard square oscillation cabinet. The robust anti-interference circuit delivers stronger and more stable output. It achieves deep molecular fusion for PVC and TPU cylinder fabrics with high seam strength and excellent sealing, meeting pressure, waterproof and airtight requirements of industrial hoses and flexible containers.
The lower electrode worktable is fully customizable to product shape with multiple structure options. Dedicated electrodes and supporting fixtures are designed according to cylinder diameter, tube length and workpiece curvature. Workpieces fit tightly with uniform consistent weld seams, solving poor contact and missed weld issues of standard flat machines, and adapting to various long tube and curved workpieces.
Standard high-sensitivity 5557 instant anti-spark system cuts HF power within milliseconds when abnormal flash occurs, effectively protecting custom cylinder moulds and internal core components, reducing maintenance cost of expensive custom moulds. Air intake filtering design keeps dust and moisture away from electronic components, extending service life.
Multiple optional functions are available: ATS auto-tuning system automatically adapts energy output for different material thicknesses and types for more stable welding quality and less manual tuning. Machine power is selectable from 5KW to 35KW to fit thin packaging tubes to thick industrial hoses. Laser light positioning device is optional for more accurate workpiece placement.
Ground pressure plate protection structure with front guard prevents operators from reaching the welding zone. The machine complies with industrial safety standards. Loading and unloading of long tube workpieces is convenient, balancing efficiency and safety for long-time continuous factory operation.
Electrode size, worktable structure, welding bar length, power rating and automation level can all be customized. Dedicated loading fixtures, rotating mechanisms and long-tube support structures can be designed according to customer products. Private-label ODM & OEM service is available to build exclusive long-tube welding production lines matching customer process and workshop layout.
With customizable worktable structure and stable HF output, HR-10KW-E widely fits four categories and dozens of products:
Specialized for PVC round tubes, soft film cylinders, industrial hoses, plastic air ducts, packaging tubes, ventilation flexible connectors and flexible silos. Custom curved electrodes fit tube bodies perfectly with uniform sealed seams, meeting pressure, waterproof and dustproof requirements.
Also handles outdoor membrane structures, tents, advertising banners, marquees, tensile membranes, space membranes, cable membranes, sunshades and carport membranes. By changing corresponding fixtures, it processes both long tube parts and flat membranes for multi-purpose use.
Suitable for flexible biogas digesters, oil storage bags, PVC air bags, water bags, liquid bags and flexible containers. HF fusion delivers excellent air and water tightness for all kinds of flexible storage products.
Processes inflatable boats, inflatable castles, inflatable toys, air mattresses and drifting boats. Strong durable seams ensure pressure resistance and service life of inflatable products.
Model: HR-10KW-E HF Output Power:10KW (5KW~35KW power customization available) Electron Tube:E3069 HF Frequency:27.12MHz Power Supply:AC 380V / 50Hz 3-Phase, voltage customizable for export Input Power:18KVA Max. Clamp Pressure:500KGS Max. Electrode Gap:150mm Electrode Moving Range:100mm Standard Upper Electrode Size:5050250mm (length & shape fully customizable) Lower Electrode Size: Customizable to product shape Standard Configurations: European oscillation box, 5557 anti-flash, air intake filter, safety pressure plate guard Optional Configurations: ATS auto-tuning system, laser positioning, extended welding bar, custom fixtures Packing Size: L1850W1000H1950mm Remarks: Full machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.
Yes. The lower electrode worktable is custom-built according to cylinder diameter and length, fitting various long tube and round tube products with tight contact and stable welding results.
Yes, welding bar length and worktable size can be customized to fit extra-long tubes and large-diameter cylinders.
Yes. By changing corresponding flat fixtures, it handles both long tube parts and flat membrane splicing for multi-purpose use with lower equipment investment.
The ATS auto-tuning system automatically adjusts energy output according to material type and thickness for more stable welding quality, less operator skill requirement and shorter setup time.
1-year full machine warranty plus lifelong remote technical support. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.
All series custom HF welders (corner type, rotary type, round tube type, projection screen type, hanging head type) support free material sample testing. Our engineers design tailored equipment based on workpiece shape, size, material and production capacity. ▶ Request Free Quotation ▶ Free Plastic Material Sample Test ▶ Download Machine Catalogue Contact Info: Email: hipower06@hi-pwr.com WhatsApp:+86-135-9014-6525 Tel:+86-0769-8600-3636 ext.812
Founded in 1999 (formerly Shenzhen Rili Machinery Factory), HIPOWER is a professional HF & ultrasonic equipment manufacturer integrating R&D, design, manufacturing, sales and technical service. It obtained CE certification in 2008, with independent import & export rights and products exported to over 60 countries worldwide. The company focuses on automated plastic welding, fusing, cutting and heat sealing, offering full lines of custom HF machines including corner, rotary, round tube, projection screen and hanging head types. We build dedicated welding solutions based on customer products and processes, helping industries solve custom plastic welding challenges.
