Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD
Published: May 9, 2026 | Updated: May 9, 2026
HIPOWER has specialized in high-frequency welding equipment R&D and manufacturing for over 27 years, providing customized solutions for customers in more than 60 countries worldwide.

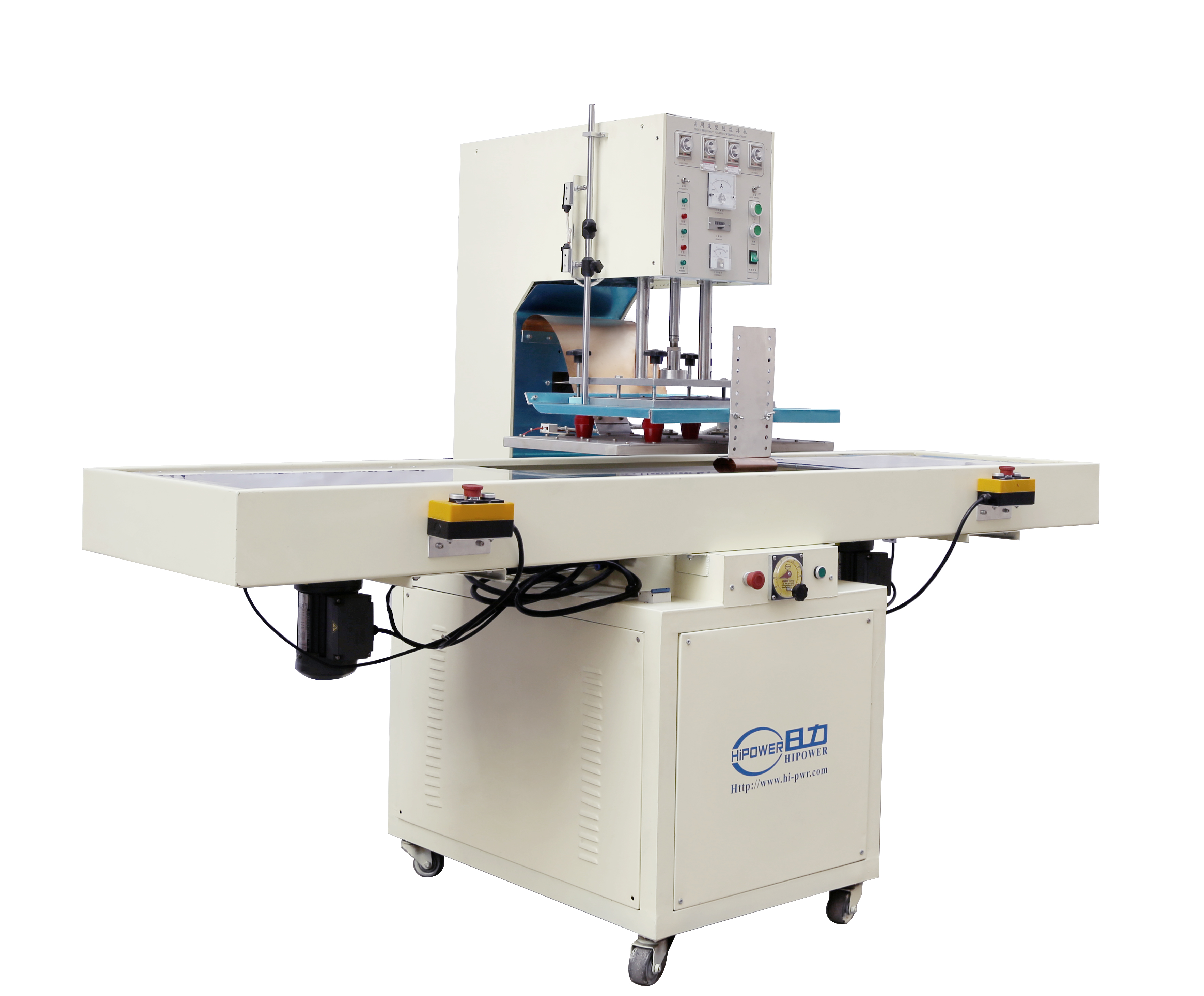

HIPOWER HR-10KW-AT Automatic Slide HF Welder: Efficient Welding Solution for Blister Packaging & Inflatable Products
For industries such as stationery, electronics, toothbrush packaging, and PVC inflatable products, the stability, precision, and efficiency of high-frequency welding equipment directly affect product yield and production cycle. Traditional manual equipment is cumbersome to operate, has large positioning errors, and unstable temperature control, which can easily lead to weak welds, deformation, and flash, making it difficult to meet the needs of synchronous cutting of blister packaging and sealed welding of inflatable products.
To solve these industry pain points, DONGGUAN HIPOWER LTD has launched the HR-10KW-AT automatic slide high frequency welding machine, a purpose-built solution for small and medium-sized blister packaging and PVC inflatable products, equipped with an automatic slide, ±2.5℃ precision temperature control, and stable HF output, which can efficiently complete batch welding operations.
Core Technical Features of the HR-10KW-AT
1. 10KW Stable Output with E3069 Electron Tube
The HR-10KW-AT is equipped with a 10KW high-frequency oscillator and a premium E3069 electron tube, operating at the global industry-standard 27.12MHz frequency. The high Q-value oscillation tube design ensures stable and reliable output, which is perfectly suitable for welding thermoplastic materials such as PVC and TPU. The weld strength is close to the base material itself, with excellent sealing and tear resistance.
2. Automatic Slide Design with Dual-Station Alternating Operation
The machine adopts an automatic slide structure with pre-set programs and mechanical interlocks, enabling dual-station alternating operation. The left and right stations work alternately, greatly reducing manual operations, improving production efficiency, and reducing operator fatigue. At the same time, it avoids manual positioning errors, ensuring the consistency of every finished product.
3. High-Precision Temperature Control (±2.5℃)
The machine is equipped with a high-precision temperature control system, with a temperature tolerance range of ±2.5℃. It can accurately adjust the welding temperature, effectively avoiding material overheating deformation or weak welds caused by insufficient temperature, especially suitable for processing temperature-sensitive blister packaging and thin PVC products.
4. Pneumatic Pressure Mode for Labor-Saving and Efficient Operation
The machine adopts pneumatic pressure mode, which is simple and labor-saving to operate. The pressure output is stable and uniform, ensuring consistent material stress during welding, resulting in flat and beautiful welds without bubbles or weak welds, with high finished product consistency. Optional pneumatic-oil/hydraulic pressure mode is available according to product requirements.
5. High-Sensitivity 5557 Anti-Flash Protection System
A standard high-sensitivity 5557 anti-flash protection system instantly cuts off high-frequency output when abnormal sparking occurs, effectively protecting the welding mold and internal electronic components, reducing production waste, extending the service life of the equipment, and lowering mold maintenance costs.
6. Full Non-Standard Customization + ODM/OEM Support
The HR-10KW-AT supports comprehensive non-standard customization, including slide travel, electrode size, temperature range, pressure configuration, etc., which can be customized according to customer product requirements. ODM and OEM services are also available to adapt to personalized production scenarios in different industries.
Suitable Applications & Compatible Materials
The HR-10KW-AT is designed for high-frequency heat sealing of the following products:
Blister packaging for stationery, electronics, MP3/MP4/USB drives
Toothbrush packaging, dental floss packaging, toy packaging, gift packaging, hardware tool packaging
PVC inflatable products: inflatable mattresses, rafts, children's swimming pools, inflatable toys
PVC soft rubber, plastic welding, PVC processing and other applications
Main Technical Specifications
plaintext
Model: HR-10KW-AT
HF Output Power: 10KW
Electron Tube: E3069
HF Frequency: 27.12MHz
Power Supply: AC 380V / 50Hz / 3-Phase (Customizable)
Input Power: 18KVA
Max. Pressure: 350KGS
Press Mode: Pneumatic Press (Optional Pneumatic-Oil/Hydraulic)
Max. Electrode Gap: 200mm
Electrode Moving Range: 150mm
Upper Electrode Size: 400*600mm
Lower Electrode Size: 500*700mm
Temperature Range: 30℃ - 200℃ Adjustable (±2.5℃ Precision)
Remarks: Customized, ODM & OEM Accepted; Specifications subject to change without notice for improvement
Frequently Asked Questions
What materials is the HR-10KW-AT suitable for welding?
The HR-10KW-AT is mainly used for welding PVC, TPU and other thermoplastic-coated fabrics, such as blister packaging, inflatable products, stationery packaging, toothbrush packaging, etc. It is not suitable for non-thermoplastic materials such as metal and glass.
What is the temperature control accuracy of the machine?
The machine is equipped with a high-precision temperature control system with a temperature tolerance range of ±2.5℃, which can accurately control the welding temperature to avoid material deformation or weak welds.
Does the machine support dual-station operation?
Yes, the machine adopts an automatic slide dual-station design, with left and right stations working alternately, greatly improving production efficiency and reducing labor costs.
Can the electrode be customized according to product size?
Yes, we offer comprehensive non-standard customization services, including electrode size, slide travel, pressure configuration, etc., according to your product size. ODM and OEM services are also available.
What safety features does the machine have?
The machine is standard equipped with a high-sensitivity 5557 anti-flash protection system, overload protection, and emergency stop protection. All our machines are CE-certified and comply with international safety standards.
What after-sales support do you provide?
We provide a 1-year warranty for all our machines, as well as lifetime technical support. Our engineering team can provide remote troubleshooting and on-site installation and training services worldwide. Most inquiries are responded to within 24 hours.
