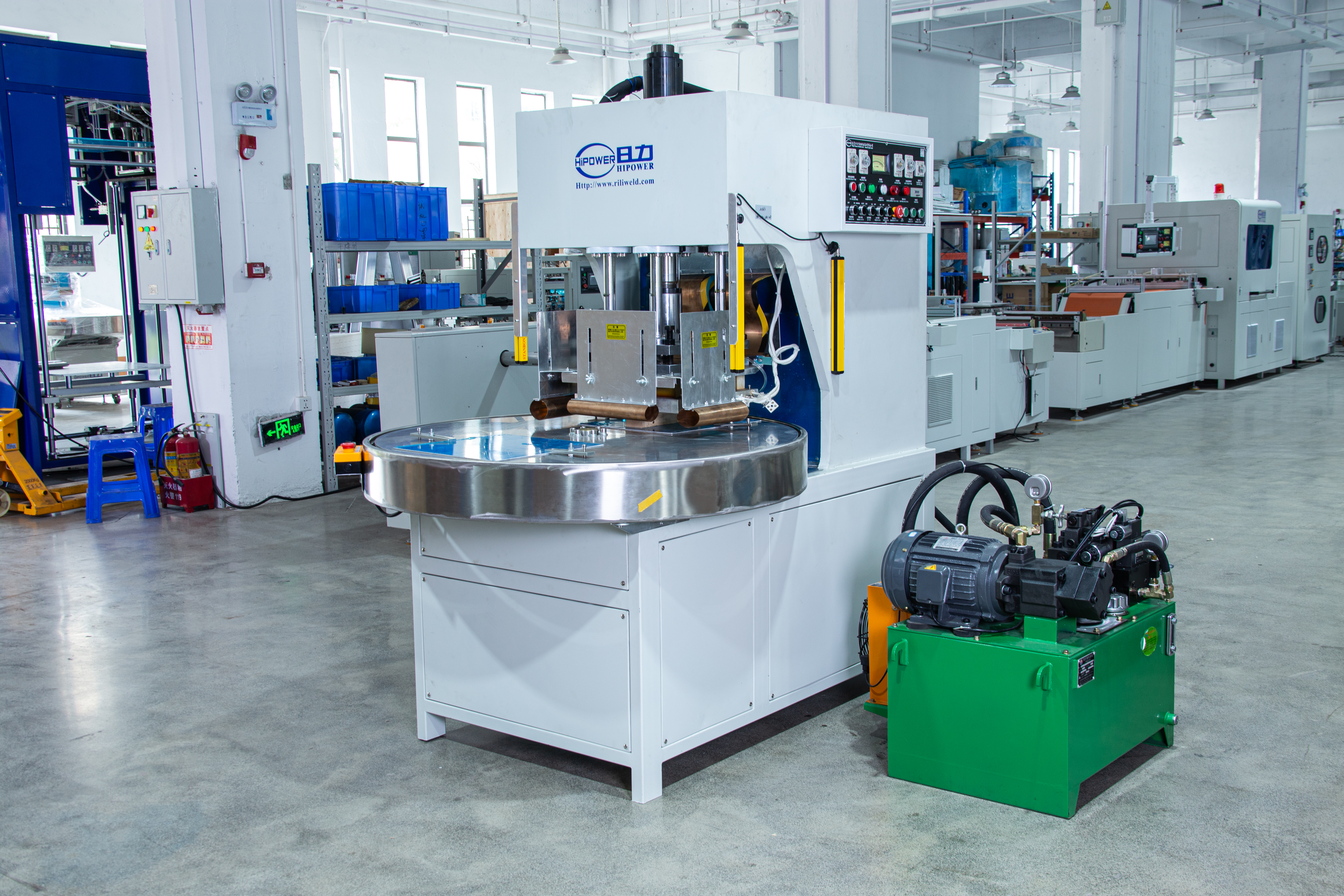

HR-10KW-4AC Rotary Table HF Welder for Eco APET Blister Packaging

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Jun 06,2026 | Updated: Jun 06,2026

HIPOWER has specialized in high-frequency welding equipment R&D and manufacturing for over 27 years, providing customized solutions for customers in more than 60 countries worldwide.HIPOWER HR-10KW-4AC Rotary Table HF Welder: All-in-One Weld & Cut Solution for Eco Blister PackagingFor manufacturers producing APET, PETG, GAG eco-friendly blister, toothbrush clamshell and daily goods packaging, traditional single-station machines suffer slow manual loading, low productivity, uneven cutting and easy material burning. To solve these pain points, DONGGUAN HIPOWER LTD launches HR-10KW-4AC automatic rotary HF cutting machine, multi-station circulating design realizes one-step welding & cutting, ideal for mass blister production.Core Technical Features of the HR-10KW-4AC1. Stable 10KW HF Output with E3069 Electron TubeEquipped with 10KW HF generator and premium E3069 tube on standard 27.12MHz frequency. High-Q oscillation circuit delivers steady power for APET/PETG/GAG eco-blister, clean weld without yellowing or burning.2. 3~6 Customizable Rotary Stations for Higher OutputStandard 4-station rotary table, optional 3 or 6 stations. Program & mechanical interlock enables cyclic station operation: feeding, welding, cutting and unloading run simultaneously, single operator manages full production line, output 2~3X higher than single-head machine.3. Precise Indexing with ±10μm Position ToleranceHigh-precision divider ensures positioning accuracy within ±10μm, consistent cutting dimension for bulk blister products, greatly reduce reject rate from misaligned sealing.4. Optional Sync Cutting, Cutting Pressure 1T~80T AdjustableOptional synchronous weld&cut function with customizable cutting pressure from 1T to 80T; pneumatic-oil or full hydraulic pressure available, max clamping pressure up to15T, finished edge smooth without extra trimming.5. High-Sensitivity 5557 Anti-Flash Protection SystemInstant spark shutdown system protects mould and internal electric parts, effectively avoid mould damage and material waste caused by eco-blister flash burning, support non-stop daily production.6. Full Non-Standard Customization + ODM/OEM SupportCustom station quantity, electrode size, rotary stroke and pressure range, private label OEM service available for irregular blister orders.Suitable Applications & Compatible Materials

Eco blister: APET/PETG/GAG clamshell blister, toothbrush blister pack, dental floss packaging

Daily goods: cosmetic blister, toy clamshell, hardware & electronic component blister tray

Others: PVC plastic pack and all thermoplastic items requiring simultaneous weld and cut

Main Technical SpecificationsplaintextModel: HR-10KW-4AC

HF Output Power:10KW

Electron Tube:E3069

HF Frequency:27.12MHz

Power Supply:AC 380V/50Hz/3-Phase(Customizable)

Input Power:18KVA

Max. Clamp Pressure:15T(Cutting Pressure:1T~80T Optional)

Press Mode:Pneumatic+Oil-Pressure(Hydraulic Optional)

Max. Electrode Gap:200mm

Electrode Moving Range:150mm

Upper Electrode Size:400*600mm

Lower Electrode Size:400*600mm

Table Size:450*650mm

Temperature Range:30℃~200℃ Adjustable

Remarks:Customized,ODM&OEM Accepted;Specifications subject to change without notice for improvement

Frequently Asked QuestionsCan it process APET eco blister?Yes, specially optimized HF circuit for APET/PETG/GAG, anti-burning & anti-sticking, support one-step sync cutting.Can I customize 3 or 6 working stations?Yes, 3~6 stations are fully customizable according to your production capacity.Does it finish weld and cut in one go?Optional synchronous cutting function to complete sealing & trimming on same station.After-sale service?1-year full warranty plus lifetime technical support, remote guidance & on-site installation available, reply within 24 hours.Contact HIPOWER for Custom Welding SolutionStandard machine or customized blister production line available, our professional engineers provide tailored solution.
