Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD Published: Aug 25,2026 | Updated: Aug 25,2026 HIPOWER has specialized in automotive interior HF welding equipment for over 27 years, delivering customized welding & cutting solutions for auto OEM suppliers and interior parts manufacturers worldwide.

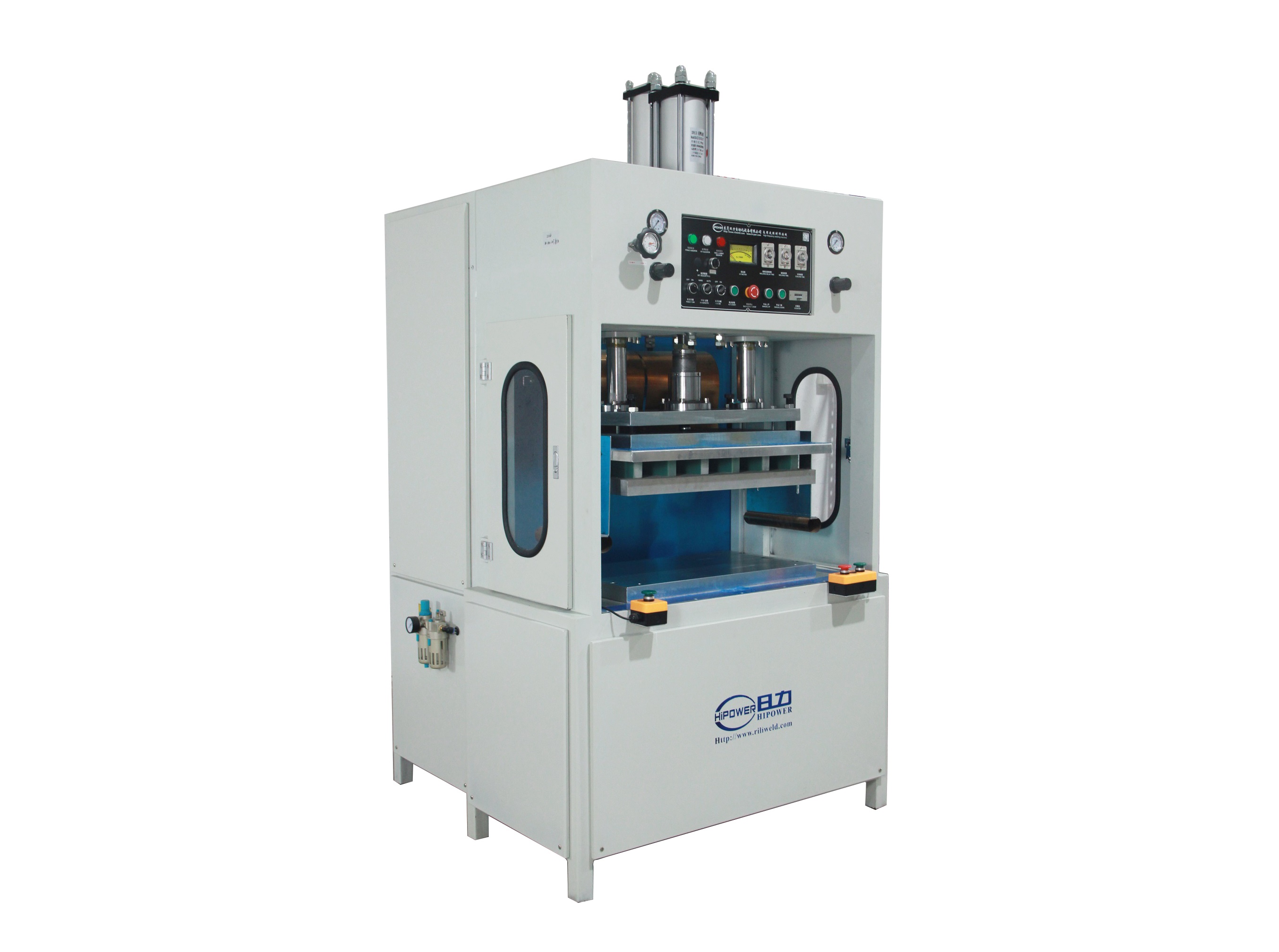

HIPOWER HR-10KW-20T Automotive Interior HF Welding Machine: Custom One-Stop Solution for Interior Parts Welding & Cutting

Manufacturers of automotive interior parts such as sun visors, window shades, trunk tonneau covers, pollen filters, sound insulation cotton and AC filter bags face common challenges. Standard machines have fixed pressure levels and cannot flexibly adapt to interior parts of different thicknesses and materials. PVC, composite fabric and filter cotton materials easily suffer from weak welding, delamination and burrs after cutting. Single-station machines waste time on loading/unloading with low productivity. Interior parts vary in size across vehicle models, and standard machines can hardly meet customized production demands.

To solve these pain points, DONGGUAN HIPOWER LTD launches HR-10KW-20T high frequency welding machine for automotive interior trims. Equipped with a stable high-Q oscillation system, it supports customizable cutting force from 1T to 20T, offers pneumatic-hydraulic and full hydraulic press modes, and optional single-side auto sliding table. One machine covers welding and cutting of various automotive interior parts, with full non-standard customization available.

Core Technical Features of the HR-10KW-20T

1. Stable 10KW High-Q Oscillation Tube for Multi-Material Welding

Equipped with 10KW HF power and premium E3069 electron tube running on 27.12MHz industrial frequency, the high-Q oscillation circuit delivers uniform and stable energy output. The energy is optimized for automotive interior materials such as PVC fabric, composite textiles, filter cotton and non-woven fabrics, creating firm weld seams and clean cut edges without burrs. No secondary trimming is required, meeting high-quality processing standards for automotive interiors.

2. Customizable Cutting Force 1T–20T with Robust Structure

The cutting force can be customized over a wide range from 1T to 20T. Pressure parameters are configured individually based on material thickness, layers and die size. The machine features a robust structure with stable and reliable output. It delivers consistent welding and cutting results for both thin sun visor fabrics and thick sound insulation cotton or multi-layer filter bags, with low deformation and smooth cutting surfaces.

3. Optional Press Modes for Flexible Process Matching

Two press modes are available: pneumatic-hydraulic and full hydraulic. Customers can select the best solution based on interior part process and material thickness. Pneumatic-hydraulic mode offers fast response and high efficiency for regular interior parts welding and cutting. Full hydraulic mode delivers heavy and stable pressure for thick materials, multi-layer composite parts and large die cutting.

4. Optional Single-Side Auto Sliding Table for Safety & Efficiency

Customizable single-side automatic sliding table is available, with separate welding and loading zones for safer operation. The sliding table runs alternately under preset program. While one station is welding, the other allows loading and unloading at the same time, eliminating idle waiting time and effectively improving productivity for mass production of automotive interior parts.

5. High-Sensitivity Anti-Flash Protection for Mould Safety

Optional high-sensitivity 557 anti-flash system cuts HF power within milliseconds when abnormal flash occurs. It effectively protects welding moulds, cutting dies and internal core components, reducing mould maintenance cost during frequent product changeover and supporting long-time continuous production.

6. Full Customization & Complete ODM/OEM Support

Electrode size, worktable dimension, cutting force, sliding structure and power rating can all be customized. Special fixtures, automatic positioning structures and multi-station rotary designs can be tailored for specific vehicle interior parts. Private-label ODM & OEM service is provided to build exclusive automotive interior welding production lines based on customer workshop layout and product features.

Suitable Applications & Compatible Materials

Interior Functional Parts

Automotive sun visors, window shades, trunk tonneau covers, roller blinds

Filtration & Sound Insulation Parts

Automotive pollen filters, AC filter bags, interior sound insulation cotton, acoustic foam

Compatible Materials

PVC, composite fabric, non-woven fabric, filter cotton, plastic composite fabrics and other HF-weldable automotive interior materials

Supported Processes

Interior edge sealing, forming & cutting, press fitting in one integrated process

Main Technical Specifications

Model: HR-10KW-20T HF Output Power:10KW (power customization available) Electron Tube:E3069 HF Frequency:27.12MHz Power Supply:AC 380V / 50Hz 3-Phase, voltage customizable for export Input Power:18KVA Max. Cutting Force:20T (1T-20T customization available) Press Mode: Standard pneumatic-hydraulic, full hydraulic optional Max. Electrode Gap:250mm Electrode Moving Range:200mm Standard Upper Electrode Size:300600mm (size & shape fully customizable) Standard Lower Electrode Size:400700mm (table size customizable) Temperature Range:30℃ ~ 200℃ adjustable Packing Dimension: L1300W1200H1980mm Overall Machine Size: Final dimension subject to official quotation drawing Remarks: Full machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.

Frequently Asked Questions

Can HR-10KW-20T process automotive sound insulation cotton and filter bags?

Yes. The machine is optimized for non-woven fabric, filter cotton and composite materials. It delivers firm welding and smooth cutting edges, completing both cotton pressing and filter bag sealing & cutting in one machine.

Can cutting pressure be adjusted according to product thickness?

Yes, cutting force is customizable from 1T to 20T. It matches appropriate pressure for thin sun visors, thick sound insulation cotton and multi-layer filter bags to ensure processing quality.

Can we customize larger electrodes for long interior parts?

Yes, upper and lower electrode sizes can be extended and widened to fit long interior parts such as full-size sun visors and trunk tonneau covers.

Can we add an auto sliding table to improve efficiency?

Optional single-side automatic sliding table is available for alternate loading and welding, improving both operational safety and production efficiency.

What is the warranty policy for customized machines?

1-year full machine warranty plus lifelong remote technical support. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.

Contact HIPOWER for Custom Interior Welding Solution

All series automotive interior HF welders support free material sample testing. Our engineers design tailored equipment based on interior part type, material, size and production capacity. ▶ Request Free Quotation ▶ Free Interior Material Sample Test ▶ Download Machine Catalogue Contact Info: Email: hipower06@hi-pwr.com WhatsApp:+86-135-9014-6525 Tel:+86-0769-8600-3636 ext.812

About DONGGUAN HIPOWER LTD

Founded in 1999 in Dongguan China, HIPOWER specializes in industrial HF welding equipment with 27 years of R&D experience. Our product portfolio includes automotive interior welders, track-type membrane welders, synchronous weld-cut machines, filter bag welders, blister packaging machines and cylinder forming machines. All machines hold CE certification and export to over 60 countries globally. The HR-10KW-20T series focuses on automotive interior non-standard customization, solving industry pain points such as multi-material adaptation, diverse sizes and low changeover efficiency. We help automotive OEM suppliers achieve flexible and high-quality mass production.
