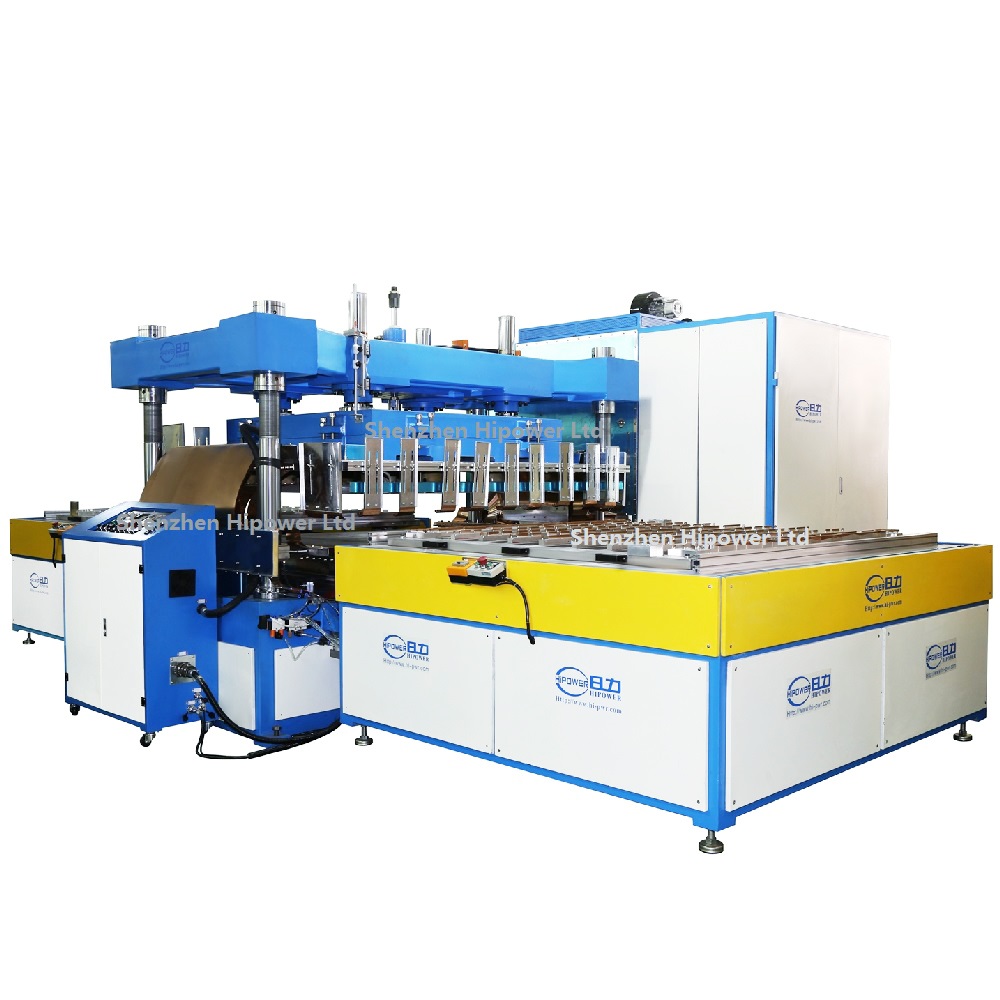

HR-100KWT Large Custom Gantry HF Welder for Giant Inflatable Pool, Floating Mat & PVC Mattress

Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD

Published: Jul 15,2026 | Updated: Jul 15,2026

HIPOWER has specialized in high-frequency welding equipment R&D and manufacturing for over 27 years, providing customized high-power welding solutions for inflatable goods, soft furniture and large plastic product factories in more than 60 countries worldwide.

HIPOWER HR-100KWT Large Gantry HF Welder: Customized High Power Welding Solution for Oversized PVC Soft Products

Manufacturers of giant inflatable pools, water floating mats, inflatable boats, air sofas, massage mattresses and embossed carpets are facing obvious limitations of standard HF machines: insufficient power, fixed table dimensions cannot complete one-piece welding of oversized workpieces. Segmented splicing leads to excessive seams and high risk of water leakage. Different products require different pressure and table sizes, standard equipment hardly meets personalized production demands. To solve these industry pain points, DONGGUAN HIPOWER LTD launches HR-100KWT large gantry high frequency welding machine. Equipped with stable 100KW high power and fully customizable structure, it is purpose-built for integrated welding and embossing of extra-large soft plastic workpieces, becoming premium customized core equipment for inflatable and soft furnishing factories.

Core Technical Features of the HR-100KWT

1. Stable 100KW HF Output with Imported 9T94A Electron Tube

HR-100KWT adopts a 100KW high-frequency generator and premium imported 9T94A electron tube, running on dedicated 13.56MHz industrial frequency. The high-Q oscillation circuit delivers consistent abundant energy to support long-hour non-stop production. Multi-layer thick PVC/TPU fabrics can achieve deep sufficient fusion with integrated weld seams, excellent waterproof and tear resistance to satisfy long-term immersion requirements of large pressure-bearing inflatable products.

2. Heavy-Duty Gantry Frame, Fully Customizable for Oversized Workpieces

Built with high-strength heavy gantry frame for stable operation. All dimensions support full customization: length & width of upper/lower electrodes, worktable size and head stroke can be individually designed according to maximum workpiece dimension. It realizes one-step integrated welding & embossing for extra-large fabric, eliminating water leakage risks caused by segmented splicing. Power range can be selected flexibly from 50KW to 100KW to match exclusive production process.

3. High-Sensitivity 5557 Anti-Flash Protection for Large Custom Moulds

Standard 5557 instant spark protection cuts HF power within milliseconds once abnormal flash occurs, effectively protecting large customized welding moulds and internal precision electronic components, greatly lowering damage risk of expensive large moulds and supporting 24/7 continuous mass production.

4. Multiple Optional Modules for Flexible Configuration

Optional functional modules can be selected freely according to materials and crafts: upper & lower electrode heating unit, ATS auto-tuning system, circulating cooling system. Standard pressure mode is pneumatic drive, hydraulic upgrade available for ultra-thick materials and deep 3D embossing. It supports sealing welding of inflatable goods, carpet embossing and mattress composite welding.

5. Controllable Press System for Uniform Pressure Distribution

Standard pneumatic driving mode provides stable adjustable clamping force, maximum pressure reaches 2T. Hydraulic upgrade is available for ultra-thick materials and deep embossing, ensuring even pressure distribution on large workpieces and avoiding local cold weld or insufficient fusion.

6. Deep Customization + Full ODM/OEM Support

Comprehensive personalized customization available, including power specification, frame dimension, electrode size, driving mode and electrical layout. We provide complete ODM & OEM private label service, and can design exclusive high-power HF production lines combined with customer workshop space and automated matching demands.

Suitable Applications & Compatible Materials

Water inflatable goods: giant inflatable swimming pool, floating mat, drifting raft, life vest, inflatable boat, flexible water storage bag

Soft home furnishing: inflatable sofa, air mattress, massage mattress, shower curtain, bath pillow

Carpet processing: large-area plastic carpet, advertising mat embossing, PVC mat splicing welding

Other wide thermoplastic fabric for large-size integrated welding and embossing

Main Technical Specifications

Model: HR-100KWT

HF Output Power:100KW

Electron Tube:9T94A

HF Frequency:13.56MHz

Power Supply:AC 380V / 50Hz 3-Phase, voltage customizable

Input Power:50KVA

Max. Clamp Pressure:2T

Standard Press Mode:Pneumatic Pressure (Hydraulic Upgrade Optional)

Max. Electrode Gap:150mm

Electrode Moving Range:100mm

Standard Upper Electrode Size:50×80 (fully customizable in any dimension)

Standard Lower Electrode Size:50×90 (fully customizable in any dimension)

Optional Functions: Electrode Heating, ATS Auto-Tuning, Circulating Cooling System, Hydraulic Press

Remarks: Full machine supports deep customization, ODM & OEM accepted; specifications subject to improvement without prior notice.

Frequently Asked Questions

Can HR-100KWT be customized with extra-large table to weld one whole sheet fabric for giant inflatable pool?

Yes. Worktable and electrode size are not limited to standard dimensions. We design the size strictly based on your maximum inflatable product, supporting one-piece continuous welding and minimizing water leakage risks from splicing.

Can it fully weld multi-layer thick TPU floating mat to avoid water leakage during long-time usage?

100KW high power plus imported oscillation tube provides stable sufficient energy for deep penetration welding. Weld seams will not delaminate, meeting long-term immersion requirements of water inflatable products.

Can machine table be modified later if new products are developed?

The gantry structure reserves sufficient modification space; electrodes and worktable can be adjusted in later stage. Our engineers will reserve expansion allowance according to your future product plan in the initial customization phase to adapt flexible production of multiple specifications.

Can one machine handle both inflatable welding and carpet embossing?

Yes. With customized mould and optional electrode heating function, single machine can realize both sealed welding of soft inflatable goods and 3D embossing of plastic carpets.

What’s the warranty policy for customized high-power machines?

1-year full machine warranty plus lifetime remote technical support. Our engineers can carry out on-site installation, commissioning and operator training for customized units. All technical inquiries will be replied within 24 hours.
