Author: Li Gong, Senior Application Engineer, DONGGUAN HIPOWER LTD Published: Sep 22,2026 | Updated: Sep 22,2026 HIPOWER has specialized in industrial ultrasonic & HF welding equipment for over 27 years, delivering customized plastic welding solutions for electronics, automotive, consumer goods and medical industries worldwide.
Traditional plastic joining processes such as gluing, heat staking and screw fastening face common pain points: gluing delivers low strength, ages easily and contains chemical solvents; screw assembly has low efficiency, poor sealing and uneven appearance. Ordinary ultrasonic machines require manual frequency tuning, demanding skilled operators and causing long changeover time. Lack of fault protection leads to frequent horn and circuit damage, with poor adaptability to different materials and thicknesses.

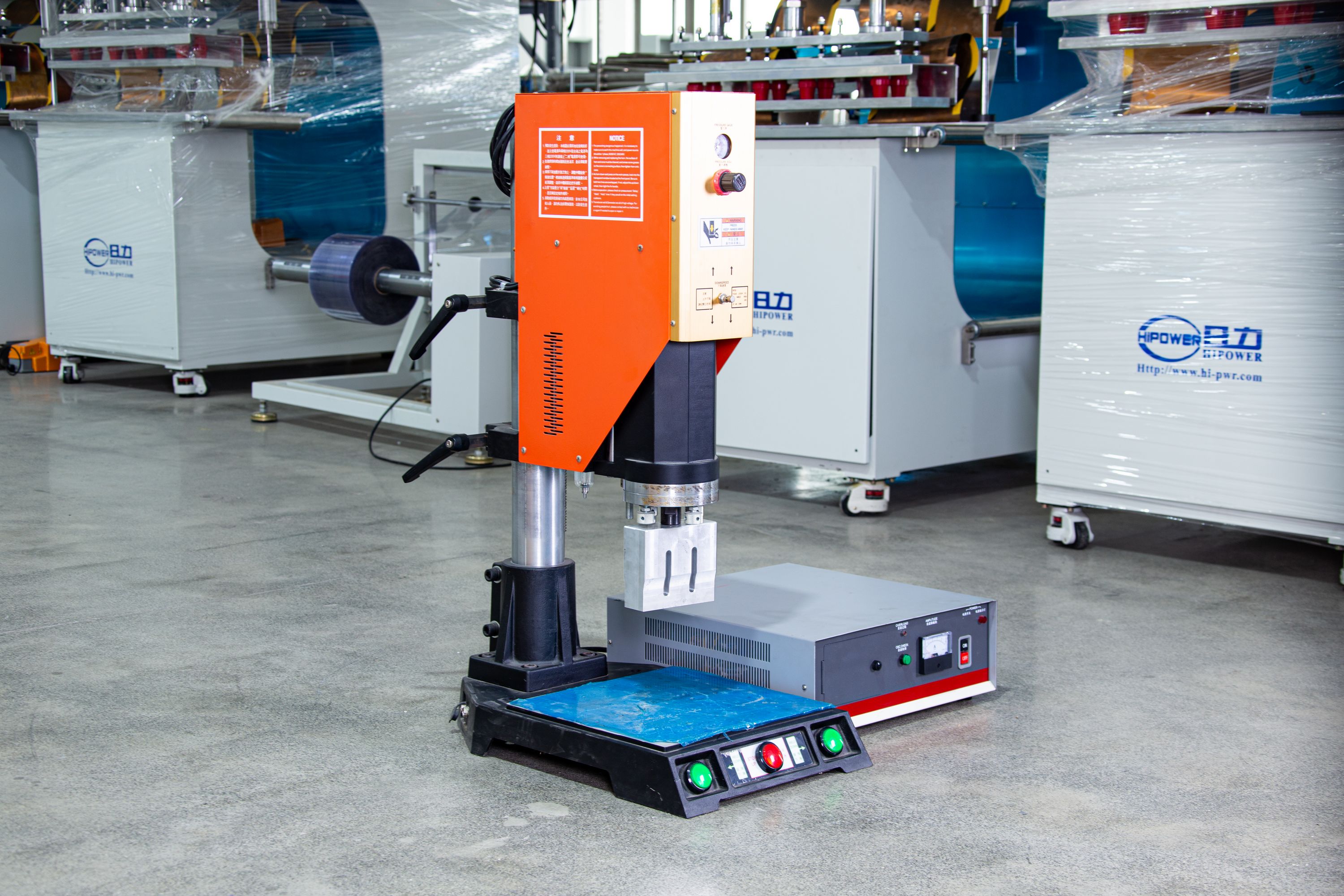

To solve these issues, DONGGUAN HIPOWER LTD (formerly Shenzhen Rili Machinery Factory, founded in 1999) launches HC-2615 standard ultrasonic plastic welding machine. Equipped with high-performance anti-interference microprocessor and digital intelligent control system, it features auto frequency tuning, stepless amplitude with 1% step and multiple intelligent fault protections. It replaces traditional gluing and screw fastening, and welds ABS, PE, PC, PS, PVC, PP, acrylic and other thermoplastics with high efficiency, great quality and eco-friendly performance. Full non-standard customization is available.
Built-in auto-tuning system automatically tracks and locks optimal working frequency after power-on, detects and corrects frequency deviation in real time. No manual frequency tuning is required. It quickly adapts after changing products or molds, greatly reducing operator skill requirements and changeover time for higher continuous productivity.
Ultrasonic amplitude is steplessly adjustable from 0 to 100% with precise 1% increments. It precisely matches energy output for plastics of different melting points and thicknesses such as ABS, PC, acrylic and PP: thin parts avoid burn-through and flash, while thick parts achieve deep molecular fusion with high strength and consistency, suitable for multi-category plastic processing.
Adopting imported high-performance anti-interference processor and digital intelligent chip, the machine operates stably under complex workshop conditions. Built-in intelligent protection system triggers audible and visual alarm automatically in case of power overload, over-temperature, excessive frequency deviation, horn damage and over-current. It effectively protects the ultrasonic generator and horn, reducing failure rate and extending service life.
Standard horn stroke is 75mm. Horn gap is manually adjusted via slider + hard track screw with precise adjustment and firm locking, suitable for workpieces of different heights. Air-cooled horn maintains low temperature rise during long continuous operation, stable performance for multi-shift mass production in factories.
Ultrasonic power, horn size & stroke, fixtures, control mode and automation level can all be customized. We design dedicated horns and positioning fixtures according to product structure, and upgrade automatic loading/unloading to connect with production lines. Private-label ODM & OEM service is available to meet customized production demands of different industries.
With wide material adaptability and stable reliable performance, HC-2615 is widely used in four major industries and dozens of plastic welding scenarios:
Suitable for welding ABS/PC plastic parts such as chargers, power adapters, switches & sockets, earphone housings, USB drives, power banks, small home appliance housings and meter shells. Replacing screws and gluing, it delivers high strength, good sealing and smooth appearance, meeting insulation, dust-proof and appearance requirements.
Fits automotive interior parts, lamp components, instrument housings, air filters, bumper trims, door plastic parts and wire harness clips. Welded structures resist vibration and temperature extremes with high joint strength, adapting to complex vehicle conditions and improving assembly efficiency and reliability.
Processes PP/PE food containers, cosmetic packaging, stationery, toy plastic parts, acrylic crafts and storage boxes. Ultrasonic welding is glue-free and chemical-free, meeting food-contact packaging hygiene requirements with neat appearance, no excess glue and no protruding screws.
Suitable for medical plastic parts, filters, infusion set components, medical consumable housings, industrial plastic pipes and filtration equipment. The clean welding process with no additives meets hygienic standards of medical and food-related industries with high consistency in mass production.
Model: HC-2615 Ultrasonic Output Power: 2600W Operating Frequency: 15KHZ Control Type: Touch screen Amplitude Adjustment: 0~100% stepless, 1% step Welding Time: 0.01~9.99S adjustable Power Supply: Single-phase AC220V / 50Hz, customizable by region Working Air Pressure: 0.1~0.7Mpa Standard Welding Area: 150mm Horn Stroke: 75mm Horn Cooling: Air cooling Ultrasonic Generator: Auto-tuning type Horn Gap Adjustment: Slider + hard track manual screw adjustment Remarks: Full machine customization acceptable, ODM & OEM supported; specifications subject to technical upgrade without prior notice.
Yes. It is compatible with ABS, PE, PC, PS, PVC, PP, acrylic and other thermoplastics. Stepless amplitude precisely matches energy for different materials for firm welding and smooth appearance.
Built-in auto-tuning automatically tracks optimal frequency after mold or product change. No manual re-tuning is required for easy operation and fast changeover.
Built-in intelligent protection triggers automatic audible and visual alarm for power overload, over-temperature, frequency abnormality, horn failure and over-current, protecting core components and reducing damage risk.
Yes, custom horns and positioning fixtures are available according to product shape and dimensions for special-structured plastic parts.
1-year full machine warranty plus lifelong remote technical support. Engineers offer on-site installation, commissioning and operator training. All technical inquiries get response within 24 hours.
Full series standard ultrasonic welders (500W~4200W) support free material sample testing. Our engineers design tailored equipment based on material, structure and production capacity. ▶ Request Free Quotation ▶ Free Plastic Part Sample Test ▶ Download Machine Catalogue Contact Info: Email: hipower06@hi-pwr.com WhatsApp:+86-135-9014-6525 Tel:+86-0769-8600-3636 ext.812
DONGGUAN HIPOWER LTD, formerly Shenzhen Rili Machinery Factory founded in 1999, is a professional ultrasonic & HF equipment manufacturer integrating R&D, design, manufacturing, sales and technical service. It obtained CE certification in 2008, with independent import & export rights and products exported to over 60 countries worldwide. The company focuses on automated plastic welding, fusing, cutting and heat sealing. Its product portfolio includes ultrasonic plastic welders, HF welding machines, synchronous weld-cut machines, track-type membrane welders, automotive interior machines, blister packaging machines and cylinder forming machines. The HC-2615 series highlights efficient, eco-friendly and non-standard customization, solving industry pain points such as low efficiency, poor strength and non-environmental traditional joining processes, as well as difficult tuning and poor protection of ordinary ultrasonic machines. It helps electronics, automotive and consumer goods factories achieve efficient, eco-friendly and high-quality plastic welding mass production.
